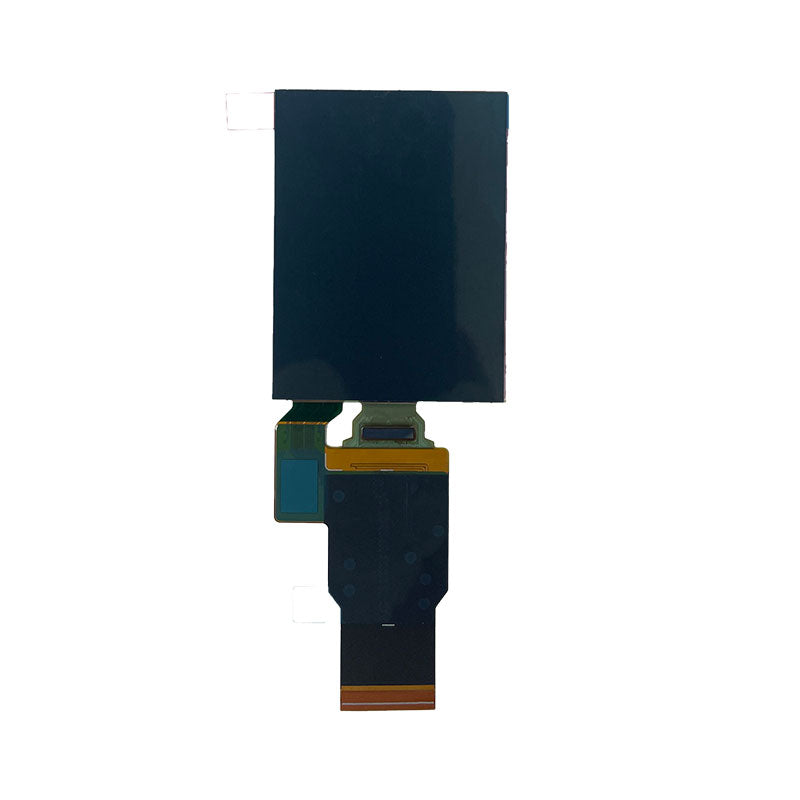

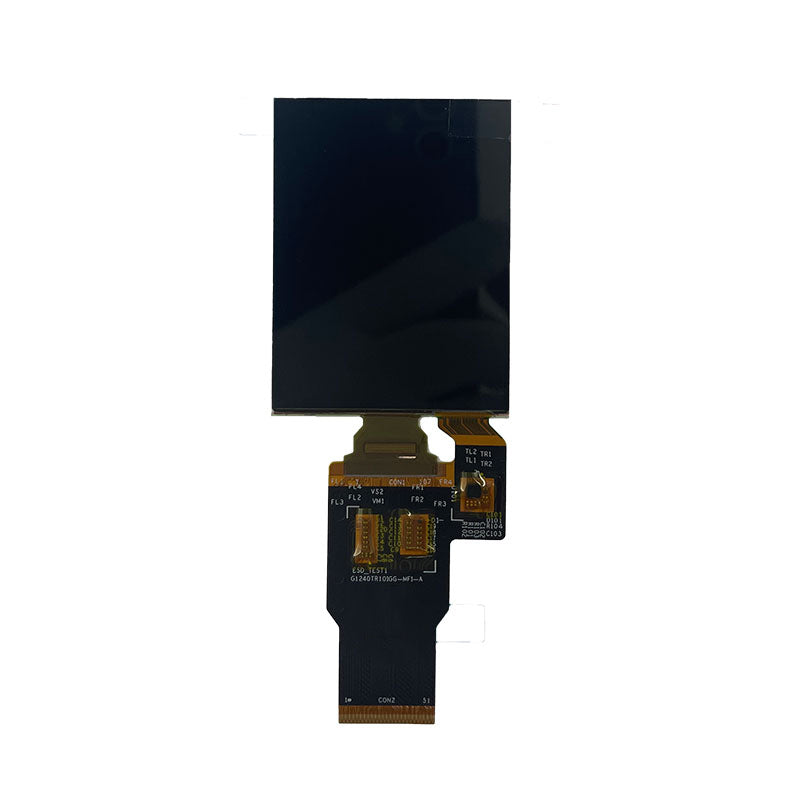

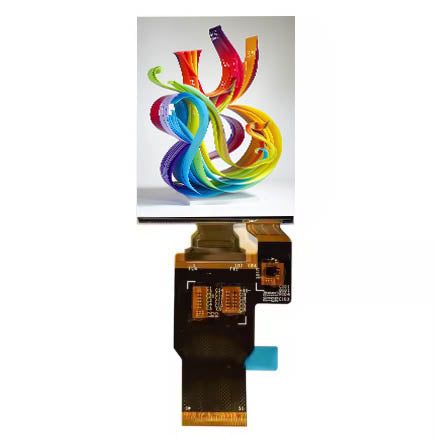

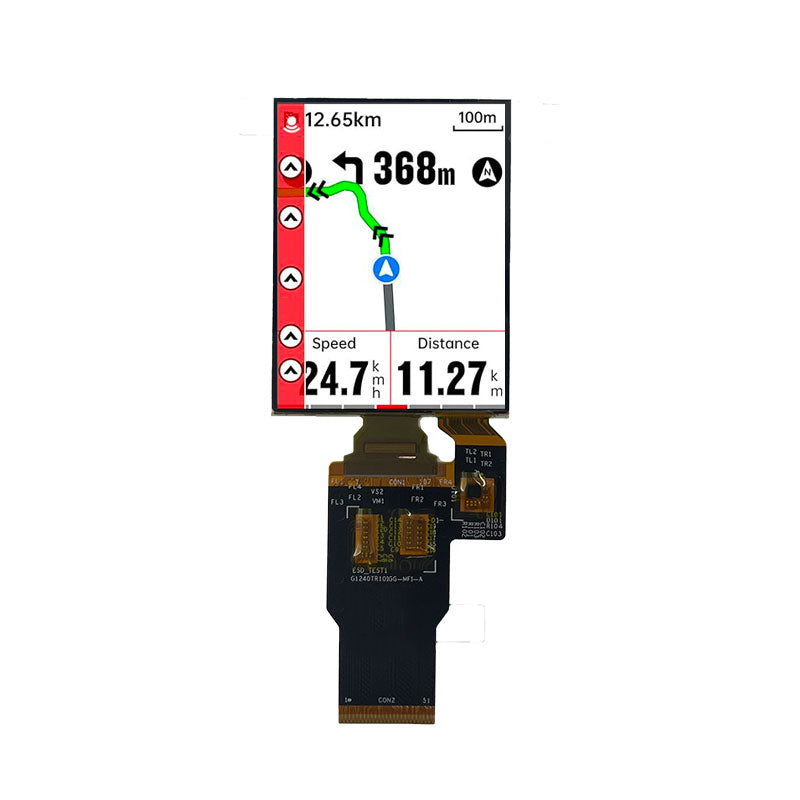

Introducing the 2.4" AMOLED Module
The 2.4" AMOLED module from Shenzhen Brownopto Technology Co., LTD is a compact and high-performance display solution designed for applications requiring vibrant colors, deep blacks, and energy efficiency. With its advanced LTPS technology and robust environmental testing, this panel offers superior performance in various scenarios including wearables, IoT devices, and industrial displays.
Key Features:
- Screen Size: 2.4 inches (diagonal)
- Resolution: 240 x 320 pixels (QVGA)
- Active Area: Approximately 39.0 mm × 52.0 mm
- Pixel Pitch: Approximately 162.5 µm (calculated based on active area and resolution)
- Technology Type: AMOLED with LTPS (Low Temperature Polysilicon) TFT backplane
- Color Depth: 16.7 million colors (24-bit RGB)
- Interface: SPI/I²C
- Polarizer Surface Treatment: HC (Hard Coating), 2H hardness
- Response Time: Rise time (TON): ≤ 0.1 ms, Fall time (TOFF): ≤ 0.1 ms
- Contrast Ratio: Up to 100,000:1 (based on test conditions)
- Viewing Angle: Up to 80° (CR≥10)
- Environmental Compliance: RoHS 2.0 compliant
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
- Lifetime: 13 months
Technical Specifications
| Parameter | Value |
|---|---|
| Size Range | 2.4" |
| Resolution | 240 x 320 pixels |
| Brightness | Up to 600 cd/m² (typical value) |
| Contrast Ratio | 100,000:1 (test condition: CR≥10) |
| Operating Temp. | -20°C to +70°C |
| Storage Temp. | -30°C to +80°C |
| Interface | SPI/I²C |
Detailed Application Scenarios

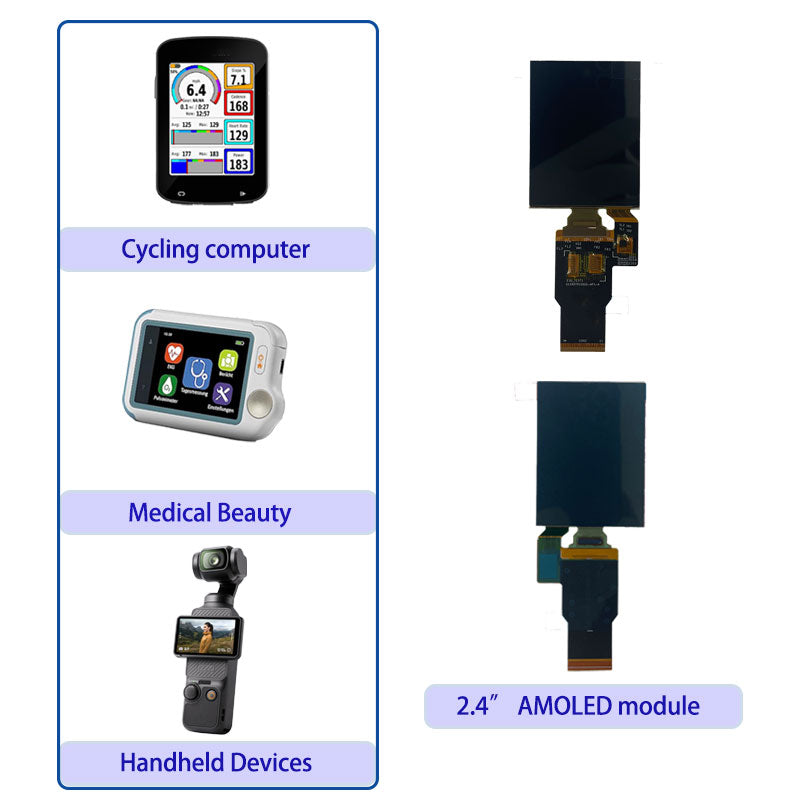

The 2.4" AMOLED module is ideal for various applications due to its compact size, high resolution, and excellent visual performance. Here are some real-world use cases:
- Smartwatches: High-resolution displays with vibrant colors and deep blacks for wearable devices.
- Fitness Trackers: Always-on display capability and high brightness for fitness trackers.
- Medical Devices: Clear and accurate display for patient monitoring systems and diagnostic tools.
- Industrial HMIs: Ruggedized panels for factory automation and control systems with wide temperature tolerance.
- Automotive Displays: Dashboard screens and infotainment systems offering sharp visuals under varying lighting conditions.
- Security Systems: Doorbell cameras and handheld NVRs with instant playback and settings adjustment.
- Educational Tools: Interactive learning devices with touch integration for children’s tablets and e-readers.
- Consumer Electronics: Smart home hubs, audio players, and cameras with modern user interfaces.
Handling Precautions
To ensure long-lasting performance and reliability, follow these handling precautions:
- Avoid mechanical shocks by dropping or pressing too hard on the screen.
- Use soft, dry cloths for cleaning and avoid harsh solvents except ethyl alcohol.
- Do not attempt to disassemble the AMOLED module.
- Handle with care to prevent static electricity damage.
- Ensure proper grounding during assembly and maintenance.
Resource download: specification
