6.2 Inch Bar Type LCD Module for Industrial Displays and Embedded Device Design
6.2 Inch Bar type LCD Module for Industrial Displays and Embedded Device Design
Compact landscape Bar type LCD Module with 360 × 960 resolution, 500–1000 nits brightness, 40pin RGB interface, optional 20pin LVDS, and HX8290A06 driver IC for embedded integration.

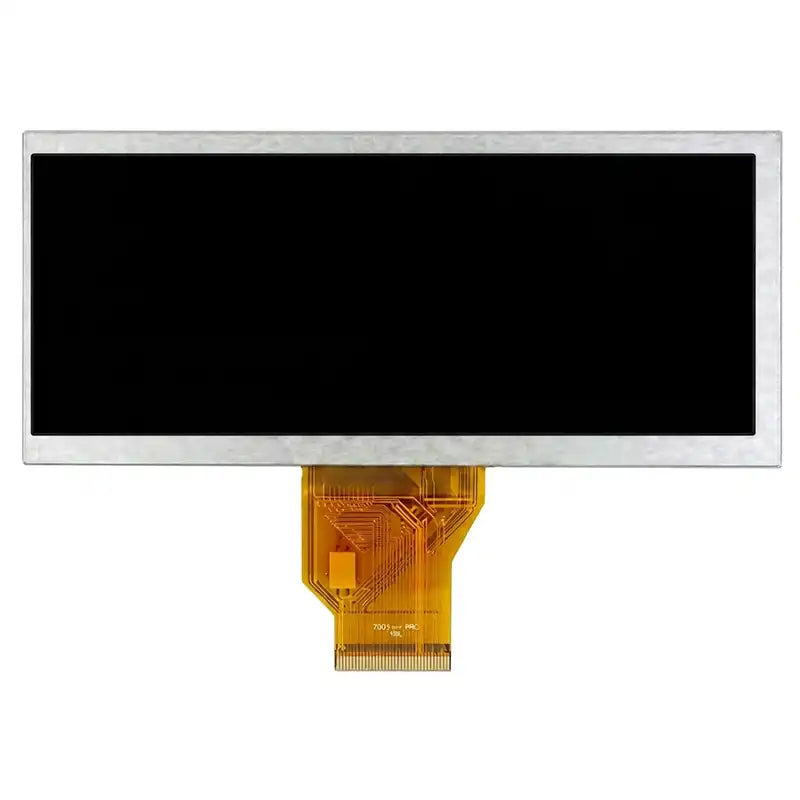

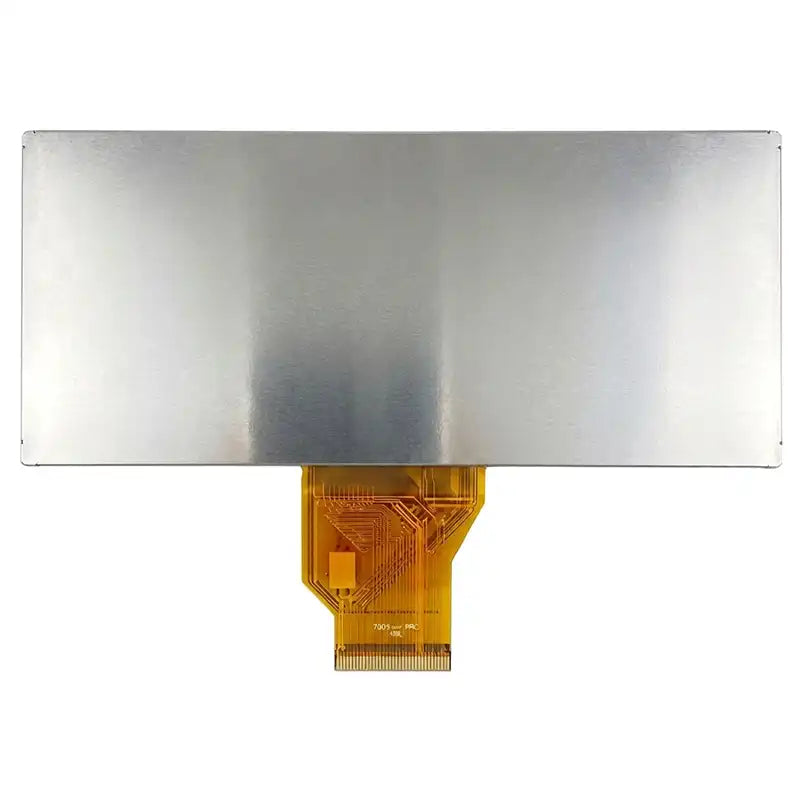

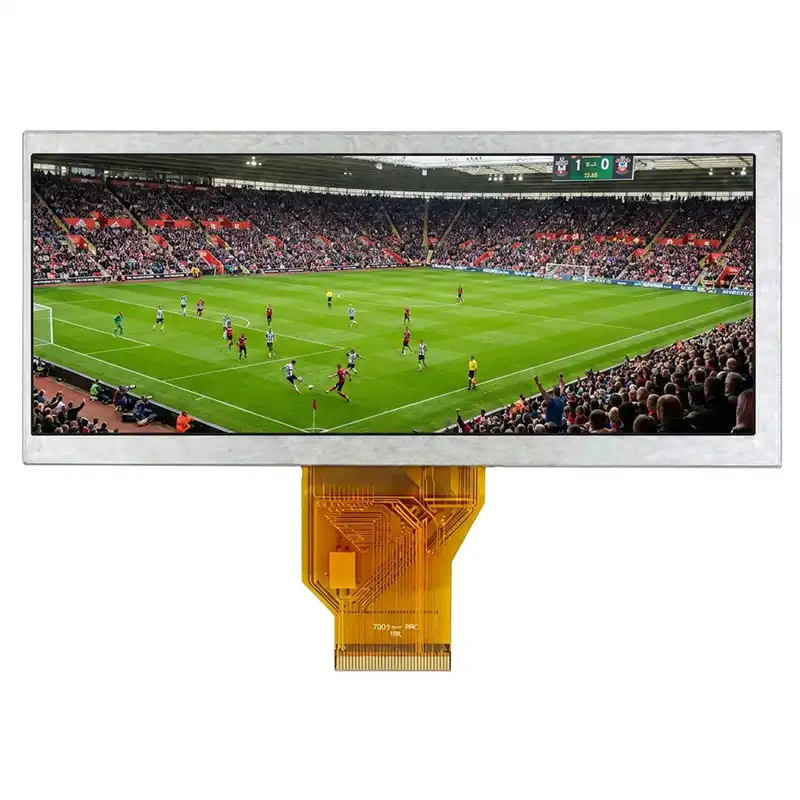

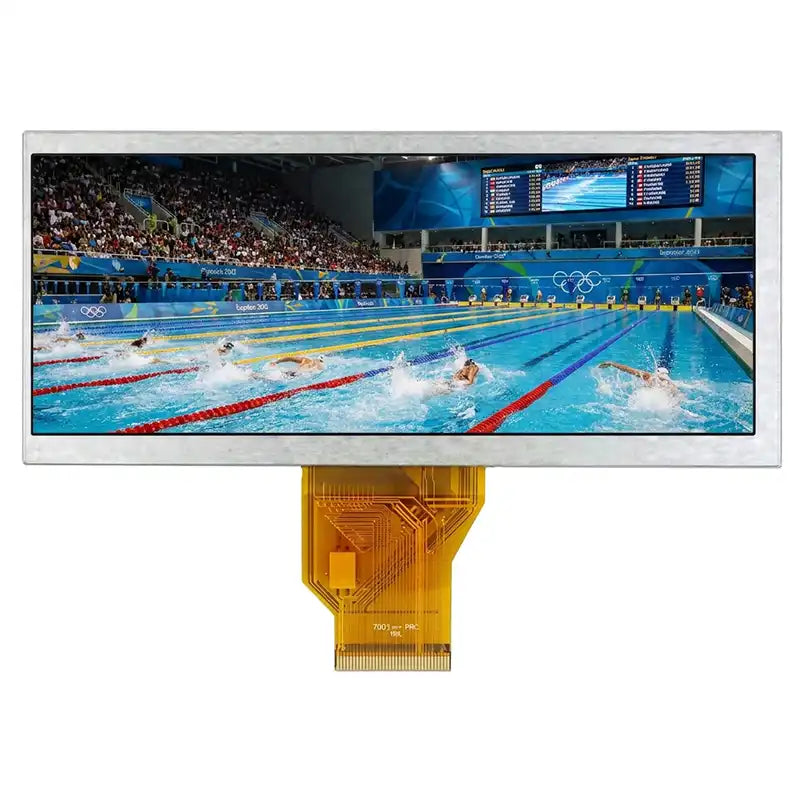

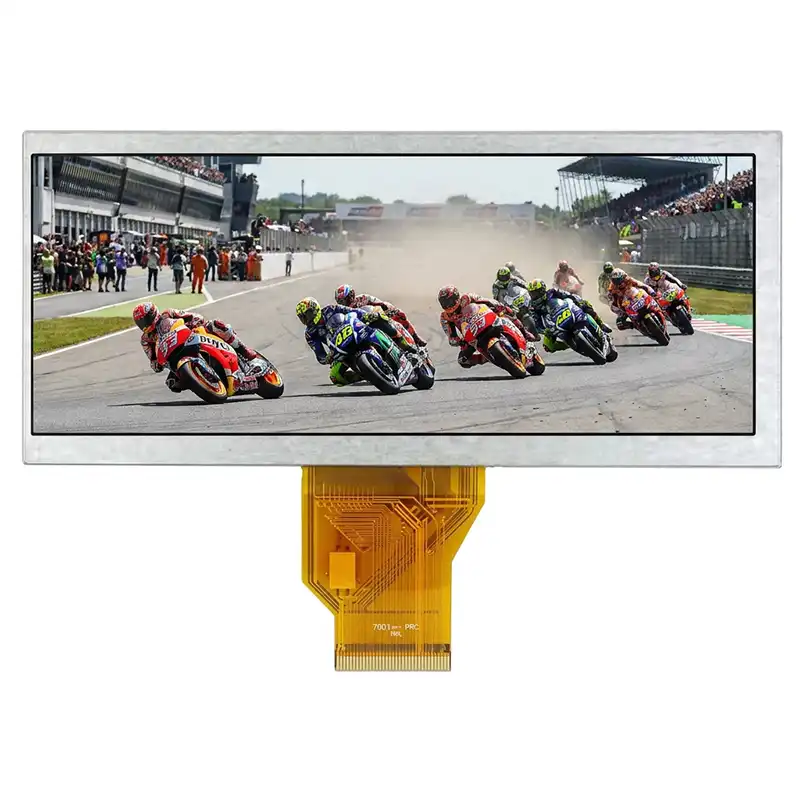

The 6.2 inch Bar type LCD Module is a landscape TFT display designed for products that require a wide and elongated screen structure. Compared with conventional display formats, this Bar type LCD Module is suitable for industrial displays, embedded systems, and custom electronic devices where horizontal content presentation and installation flexibility are important.
With a 360 × 960 resolution, 500–1000 nits brightness, and 40pin RGB interface with optional 20pin LVDS, this Bar type LCD Module supports clear display performance and practical system integration. The module is driven by the HX8290A06 driver IC and is suitable for applications requiring a stable long strip LCD display solution.
For customers looking for a compact bar type LCD module, bar type TFT LCD, or long strip LCD display, this 6.2 inch model is a practical option for product development and embedded UI design.
Quick Highlights
- 6.2 inch Bar type LCD Module with slim landscape structure
- 360 × 960 resolution for clear horizontal content display
- 500–1000 nits brightness for wider application flexibility
- 40pin RGB interface with optional 20pin LVDS support
- HX8290A06 driver IC for reliable display driving performance
- Suitable for industrial displays and embedded device applications
Key Features of 6.2 Inch Bar type LCD Module
Bar Type Structure
This Bar type LCD Module uses a slim long strip design, making it suitable for narrow installation spaces and horizontal UI layouts.
360 × 960 Resolution
Supports clear text, icon, and interface display performance for embedded products and compact industrial display systems.
500–1000 nits Brightness
Provides more flexible brightness options for products requiring clear and stable viewing performance in different indoor environments.
RGB / LVDS Interface
Provides practical interface options with 40pin RGB and optional 20pin LVDS for embedded system design and hardware integration.
HX8290A06 Driver IC
Offers stable driving support for this Bar type LCD Module in industrial display and embedded device applications.
Industrial Application Focus
Well suited for industrial displays, embedded devices, long strip UI products, and custom electronic display projects.
Product Overview
The 6.2 inch Bar type LCD Module is designed for applications that need a compact display with a narrow landscape format rather than a standard screen ratio. This makes it a suitable choice for industrial displays, embedded devices, and custom electronic products with limited front panel space.
Its 360 × 960 resolution allows clear horizontal content presentation, while the 500–1000 nits brightness supports flexible readability in indoor use scenarios. With a 40pin RGB interface and optional 20pin LVDS, plus the HX8290A06 driver IC, this Bar type LCD Module helps simplify system integration for compact display solutions.
For product developers and OEM customers, this model is a practical choice when a long strip LCD display is required to improve interface layout, optimize installation structure, or support a more distinctive product appearance.
Typical Applications
Technical Specifications
| Product Name | 6.2 Inch Bar type LCD Module |
|---|---|
| Display Size | 6.2 Inch |
| Orientation | Landscape |
| Resolution | 360 × 960 |
| Brightness | 500–1000 nits |
| Interface | 40pin / RGB (20pin LVDS) |
| Driver IC | HX8290A06 |
| Active Area | 147.8 × 55.44 mm |
| Outline Dimensions | 173.7 × 70 × 6.8 mm |
| Main Application | Industrial Displays, Embedded Devices |
Optional Matching Driver Board
| Option | Driver Board Type |
|---|---|
| 1 | HDMI driver board |
Selection Notes
- Reference design direction: this model was developed with reference to Japanese brands such as Kyocera and Hitachi for similar application requirements.
- Landscape layout: suitable for horizontal user interface content and long strip visual presentation.
- Flexible brightness: 500–1000 nits supports broader project requirements for indoor display performance.
- Integration support: 40pin RGB interface with optional 20pin LVDS helps support practical embedded system connection requirements.
- Application target: recommended for industrial displays, embedded devices, and custom electronic interface projects.
Integration Support
This 6.2 inch Bar type LCD Module is suitable for customers developing compact embedded products that require a narrow landscape display. The combination of 360 × 960 resolution, 40pin RGB interface, optional 20pin LVDS, and HX8290A06 driver IC provides a practical foundation for system design and product integration.
- Suitable for compact embedded control projects
- Supports industrial display integration
- Suitable for custom UI development
- Helpful for long strip layout product design
- Applicable to OEM / ODM custom display projects
Bar type LCD Module FAQ
1. Is this a Bar type LCD Module?
2. What resolution does this Bar type LCD Module support?
3. What interface does this 6.2 inch Bar type LCD Module use?
4. What driver IC is used in this Bar type LCD Module?
5. What applications is this Bar type LCD Module suitable for?
6. Why choose this 6.2 inch Bar type LCD Module?
Need a 6.2 Inch Bar type LCD Module for Your Project?
Contact us for samples, detailed specifications, interface support, and OEM / ODM service for this compact Bar type LCD Module.
