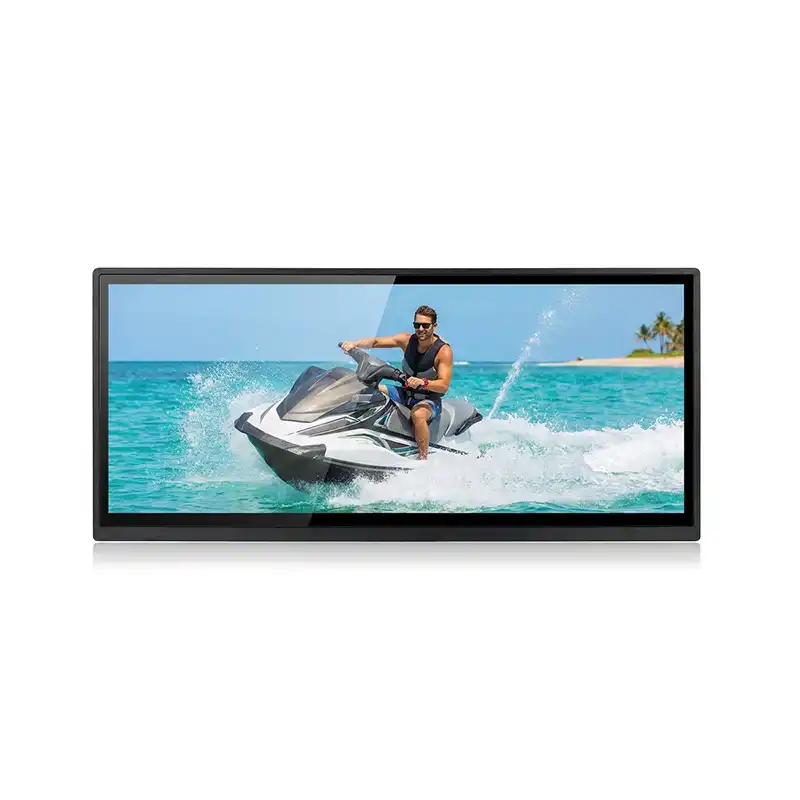

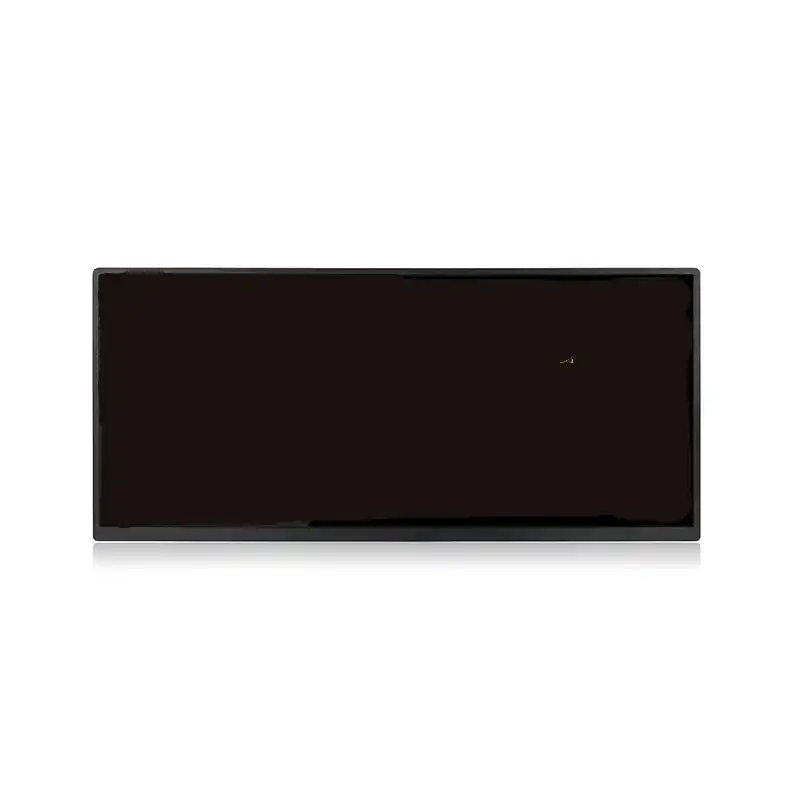

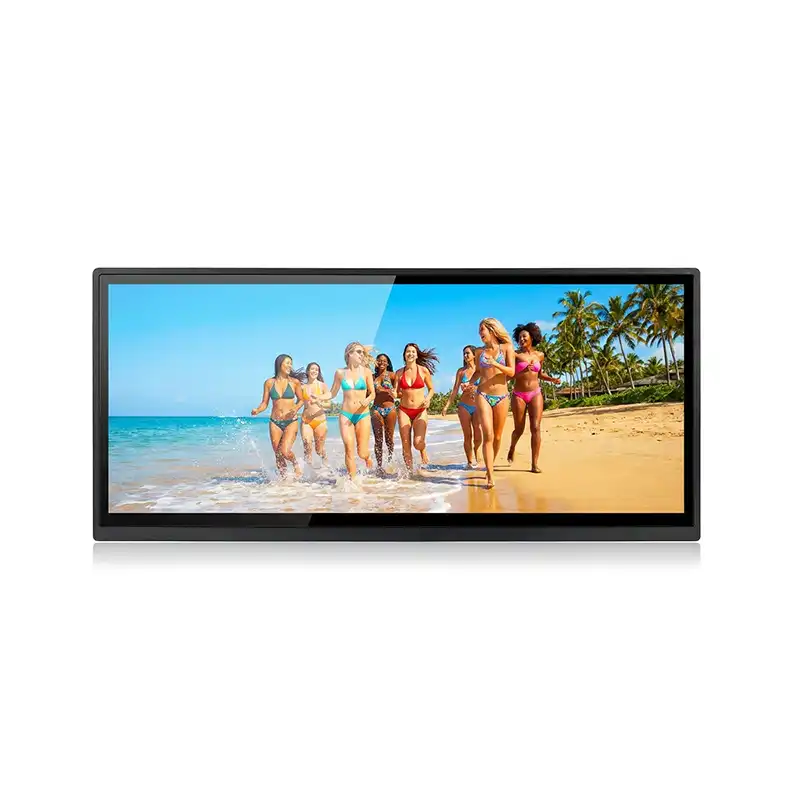

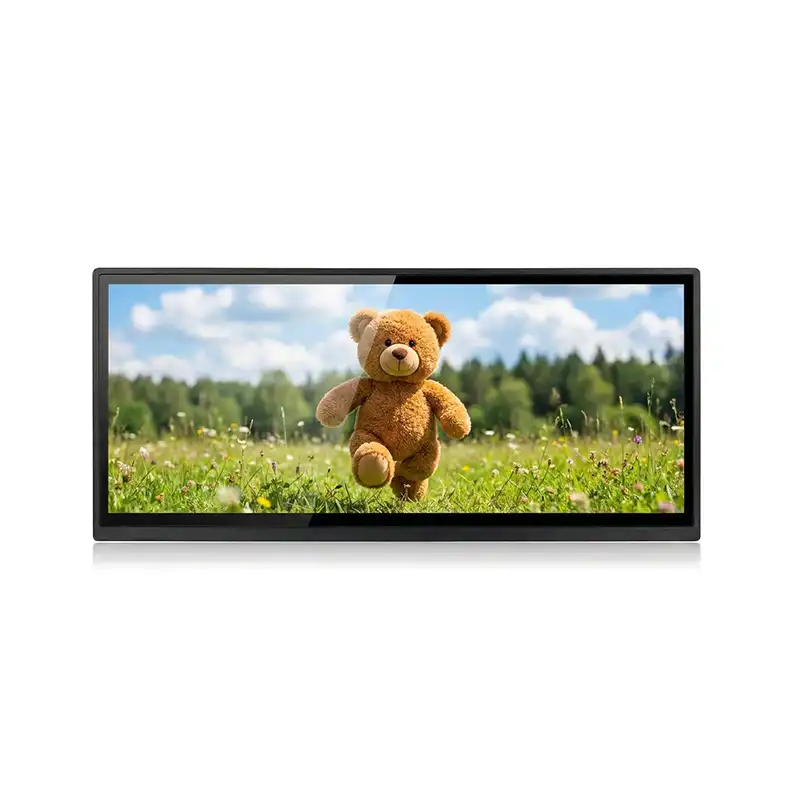

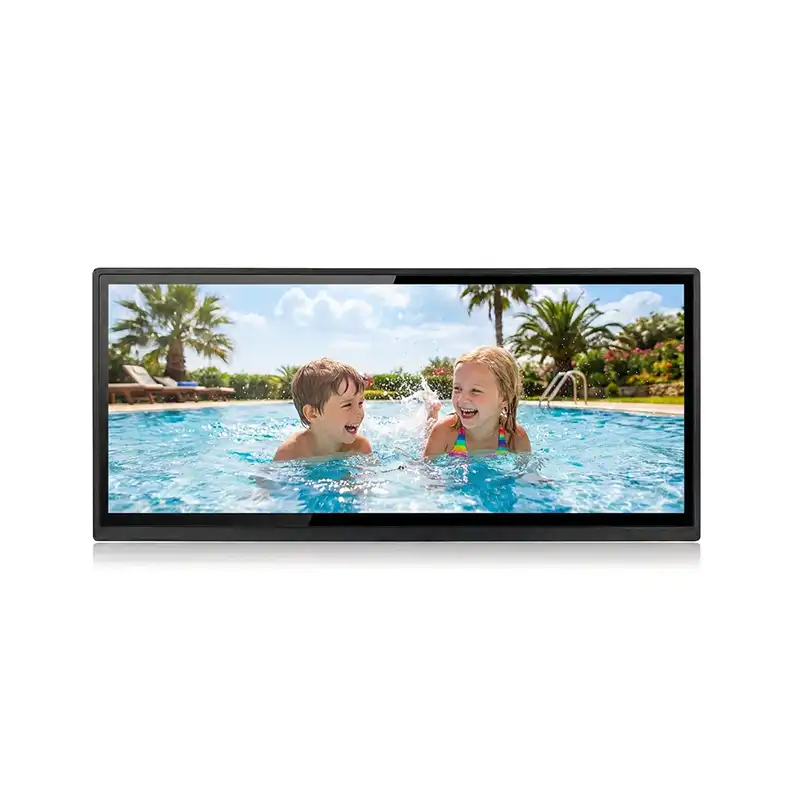

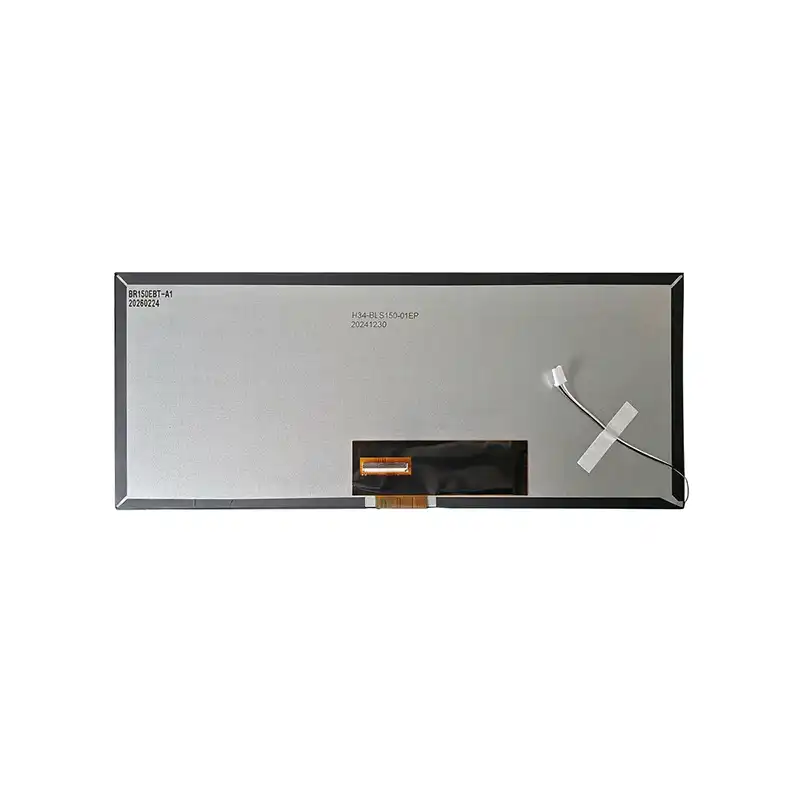

15 Inch Bar Type LCD Module for Vehicle CMS and Embedded Device Design
15 Inch Bar type LCD Module for Vehicle CMS and Embedded Device Design
Landscape Bar type LCD Module with 1920 × 720 resolution, 500 nits brightness, 60pin LVDS interface, and HX82102 driver IC for vehicle CMS and embedded integration.
The 15 inch Bar type LCD Module is a landscape TFT display designed for products that require a wide and elongated screen structure. Compared with conventional display formats, this Bar type LCD Module is suitable for vehicle CMS, embedded systems, and custom electronic devices where horizontal content presentation and installation efficiency are important.
With a 1920 × 720 resolution, 500 nits brightness, and 60pin LVDS interface, this Bar type LCD Module supports clear display performance and practical system integration. The module is driven by the HX82102 driver IC and is suitable for applications requiring a stable long strip LCD display solution.
For customers looking for a compact bar type LCD module, bar type TFT LCD, or long strip LCD display, this 15 inch model is a practical option for vehicle CMS development and embedded UI design.
Quick Highlights
- 15 inch Bar type LCD Module with wide landscape structure
- 1920 × 720 resolution for clear horizontal content display
- 500 nits brightness for stable viewing performance
- 60pin LVDS interface for embedded integration
- HX82102 driver IC for reliable driving support
- Suitable for vehicle CMS and cost-effective projects
Key Features of 15 Inch Bar type LCD Module
Bar Type Structure
This Bar type LCD Module uses a wide long strip design, making it suitable for narrow installation spaces and horizontal UI layouts.
1920 × 720 Resolution
Supports clear text, icon, and interface display performance for embedded products and vehicle display systems.
500 nits Brightness
Provides stable brightness performance for products requiring clear and consistent display readability in indoor and vehicle use environments.
60pin LVDS Interface
Provides a practical interface solution for embedded system design and efficient hardware integration.
HX82102 Driver IC
Offers stable driving support for this Bar type LCD Module in long strip display and embedded device applications.
Vehicle CMS Option
Recommended as a cost-effective solution for vehicle CMS related display projects and custom interface development.
Product Overview
The 15 inch Bar type LCD Module is designed for applications that need a compact display with a narrow landscape format rather than a standard screen ratio. This makes it a suitable choice for vehicle CMS, embedded devices, and custom electronic products with limited front panel space.
Its 1920 × 720 resolution allows clear horizontal content presentation, while the 500 nits brightness supports stable readability in practical use scenarios. With a 60pin LVDS interface and HX82102 driver IC, this Bar type LCD Module helps simplify system integration for compact display solutions.
For product developers and OEM customers, this model is a practical choice when a long strip LCD display is required to improve interface layout, optimize installation structure, or support a more distinctive product appearance. It is also suitable for customers evaluating a cost-effective display for vehicle CMS applications.
Typical Applications
Technical Specifications
| Product Name | 15 Inch Bar type LCD Module |
|---|---|
| Display Size | 15 Inch |
| Orientation | Landscape |
| Resolution | 1920 × 720 |
| Brightness | 500 nits |
| Interface | 60pin / LVDS |
| Driver IC | HX82102 |
| Active Area | 355 × 133 mm |
| Outline Dimensions | 366.8 × 146.2 × 6.5 mm |
| Main Application | Vehicle CMS, Embedded Devices |
Optional Matching Driver Board
| Option | Driver Board Type |
|---|---|
| 1 | HDMI driver board |
| 2 | Android driver board |
Selection Notes
- High cost-effectiveness: suitable for projects that require a practical balance between size, display performance, and budget.
- Vehicle CMS potential: worth considering for vehicle CMS related display integration projects.
- Landscape layout: suitable for horizontal user interface content and long strip visual presentation.
- LVDS integration: 60pin LVDS interface supports practical embedded system connection requirements.
- Application target: recommended for vehicle CMS, embedded devices, and cost-effective long bar display projects.
Integration Support
This 15 inch Bar type LCD Module is suitable for customers developing vehicle CMS and compact embedded products that require a narrow landscape display. The combination of 1920 × 720 resolution, 60pin LVDS interface, and HX82102 driver IC provides a practical foundation for system design and product integration.
- Suitable for vehicle CMS development projects
- Supports smart display integration
- Suitable for custom UI development
- Helpful for long strip layout product design
- Applicable to OEM / ODM custom display projects
Bar type LCD Module FAQ
1. Is this a Bar type LCD Module?
2. What resolution does this Bar type LCD Module support?
3. What interface does this 15 inch Bar type LCD Module use?
4. What driver IC is used in this Bar type LCD Module?
5. What applications is this Bar type LCD Module suitable for?
6. Why choose this 15 inch Bar type LCD Module?
Need a 15 Inch Bar type LCD Module for Your Project?
Contact us for samples, detailed specifications, interface support, and OEM / ODM service for this cost-effective Bar type LCD Module.
