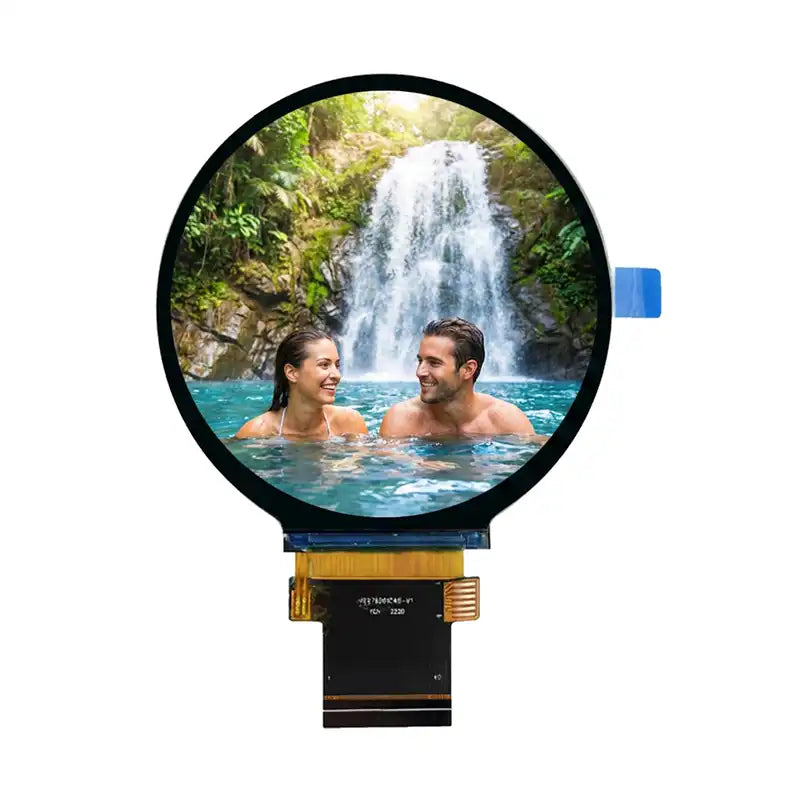

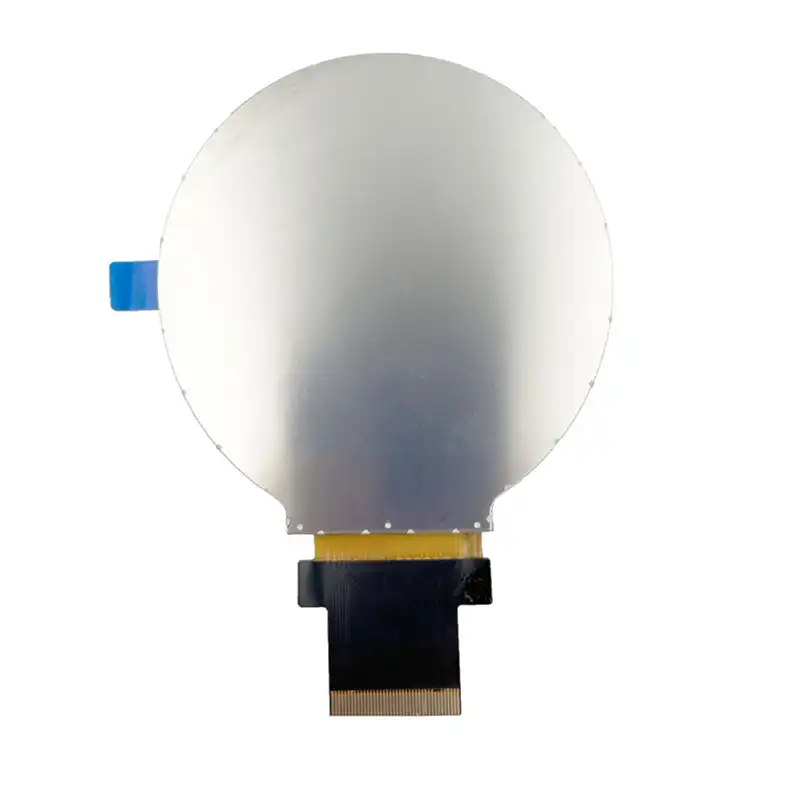

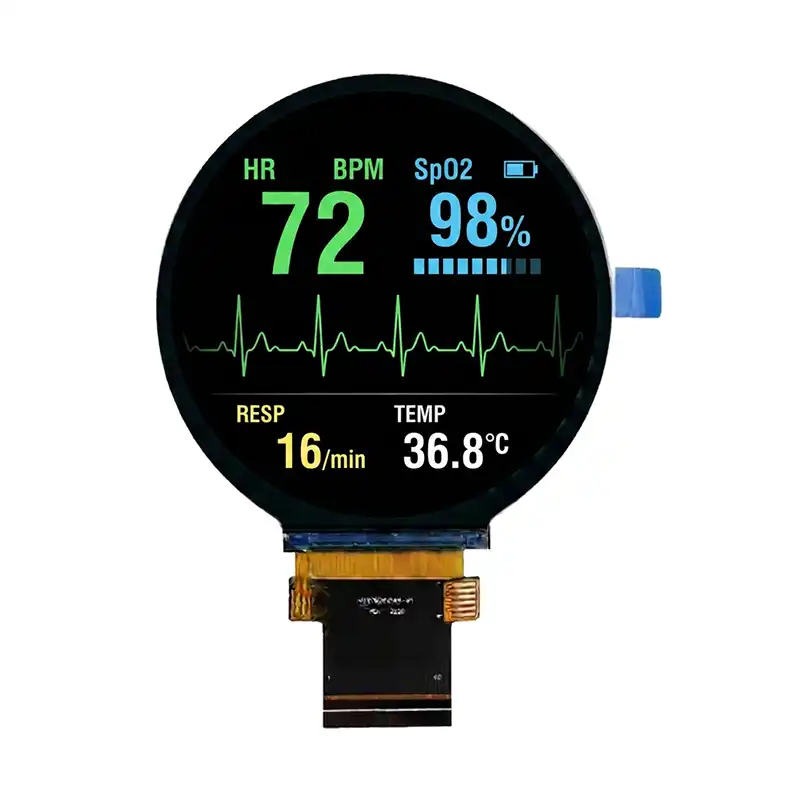

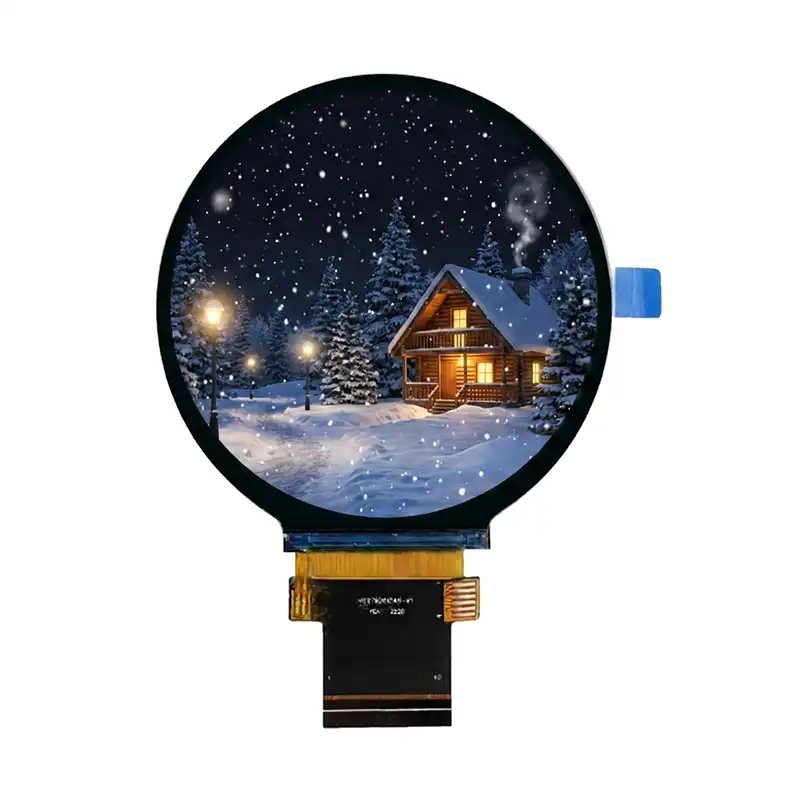

2.8 inch IPS round TFT LCD display module with 480x480 resolution
Quick Product Summary
The 2.8 Inch IPS Round TFT LCD Display Module from Brownopto is a high-resolution circular IPS display solution designed for smart devices, industrial terminals, embedded systems, IoT products, and customized electronics that require a modern full-round screen structure with reliable display performance and flexible interface options.
- Product type: 2.8 inch IPS round TFT LCD display module
- Core specifications: 480 × 480 resolution, ST7701S driver IC, RGB and MIPI interface support
- Brightness range: 350 to 1000 nits for different display environment requirements
- Best for: smart home devices, industrial HMI terminals, IoT display products, embedded multimedia systems, and customized circular electronic equipment
- Main advantage: true round IPS display structure with balanced resolution, wide viewing angle performance, and flexible system integration
- Recommended use: engineering evaluation, custom product development, embedded integration, and differentiated circular UI projects
- Selection note: ideal for customized or lower-volume projects where round display styling and product differentiation are important
Product Overview
The 2.8 Inch IPS Round TFT LCD Display from Brownopto is a high-quality circular display module designed for smart devices, industrial terminals, embedded systems, and customized electronic products that require a modern round screen interface.
This IPS round TFT LCD screen features a 480 × 480 resolution, a 70.13 × 70.13 mm active area, and a brightness range of 350 to 1000 nits, providing clear image performance, wide viewing angles, and reliable display quality for differentiated round screen applications.
Powered by the ST7701S driver IC, this module supports RGB and MIPI interfaces, offering flexibility for product development, system integration, and customized round display solutions.
Key Features
- IPS Round Screen Design: Combines circular display aesthetics with IPS technology for wide viewing angles and modern interface presentation.
- 480 × 480 Resolution: Suitable for round user interfaces, image display, status visualization, icons, and graphical content.
- 350 to 1000 nits Brightness: Supports customized brightness requirements for different application environments.
- ST7701S Driver IC: Ensures stable display control and reliable module performance for embedded integration.
- RGB and MIPI Interface Support: Offers practical integration options for development boards and customized hardware systems.
- Suitable for Customized Projects: Ideal for differentiated product design where round display appearance is a key requirement.
Who This Product Is Best For
Technical Specifications
| Product Name | 2.8 Inch IPS Round TFT LCD Display Module |
|---|---|
| Brand | Brownopto |
| Display Size | 2.8 Inch |
| Display Type | IPS |
| Display Shape | Round Screen |
| Driver IC | ST7701S |
| Resolution | 480 × 480 |
| Brightness | 350 to 1000 nits |
| Interface | RGB / MIPI |
| Active Area | 70.13 × 70.13 mm |
| Outline Dimensions | 73 × 77.59 × 2.3 mm |
Note: For actual project implementation, it is recommended to confirm interface matching, controller compatibility, software support, brightness target, mechanical dimensions, connector position, and structural installation requirements before final selection.
Optional Matching Driver Boards
This 2.8 inch IPS round display can be matched with multiple optional driver boards for evaluation, multimedia testing, and embedded product development.
- Video Playback Driver Board: Suitable for multimedia playback testing and display demonstration.
- HDMI Board: Supports HDMI signal input for display verification and system development.
- CVBS Drive Board: Suitable for applications that require CVBS signal support.
- AI Human-Machine Interaction Drive Board: Designed for intelligent interaction systems and advanced HMI development.
- 1963 Drive Board: Suitable for dedicated display testing and controller evaluation.
- ESP32 UART Board: A practical development option for embedded control, serial communication, and IoT display applications.
Product Selection Notes
This product is generally more suitable for customized or lower-volume projects where round display appearance and product differentiation are more important than standard cost-performance considerations.
It is a practical choice for applications that prioritize a distinctive round screen structure, product design flexibility, and custom display integration.
- Choose this model when your project requires a reliable IPS round TFT LCD with balanced resolution and flexible RGB or MIPI integration.
- Confirm interface compatibility according to your controller platform, software environment, and hardware design requirements.
- Check brightness requirements based on the real installation environment and target display effect.
- Verify mechanical fit according to active area, outline dimensions, connector structure, and housing space.
- Confirm customization needs in advance if your project requires matching driver boards, brightness adjustments, or specialized round display integration support.
Application Scenarios
This 2.8 inch IPS round TFT LCD module is suitable for display products that require modern circular styling, practical visual performance, and flexible embedded integration.
Packaging and Delivery
Each display module is packed carefully to help protect the screen surface, connector area, and structural components during storage, sample delivery, and bulk shipment.
- Selling Units: Single item and bulk order supply supported
- Customization Support: Optional driver boards, interface matching, and project-based round display solutions are available
- Shipping: Global shipping supported, with final freight based on order quantity and destination
Frequently Asked Questions
1. What is the 2.8 inch IPS round TFT LCD display mainly used for?
This display is mainly used for smart devices, industrial HMI terminals, embedded multimedia systems, IoT products, and customized electronic equipment that require a circular IPS screen structure.
2. Is this a full circular IPS round TFT LCD display?
Yes. This product is a full circular IPS round TFT LCD display designed for round interface applications and customized smart device integration.
3. What resolution does this 2.8 inch round display support?
It supports a 480 × 480 resolution, suitable for circular UI design, icons, graphics, and display content presentation.
4. What interfaces are available for this display module?
This module supports RGB and MIPI interfaces, making it suitable for a wide range of customized integration projects.
5. Which driver IC is used in this round display module?
The module uses the ST7701S driver IC, which helps provide stable display control and reliable output for embedded integration.
6. Are optional driver boards available for evaluation and development?
Yes. Optional driver boards include a Video Playback Driver Board, HDMI Board, CVBS Drive Board, AI Human-Machine Interaction Drive Board, 1963 Drive Board, and ESP32 UART Board.
7. Is this display suitable for customized or lower-volume projects?
Yes. It is especially suitable for customized or lower-volume projects that require a round screen appearance, product differentiation, and flexible display integration.
8. What brightness range does this 2.8 inch IPS round display provide?
This product provides a brightness range of 350 to 1000 nits, and the actual selection should be based on the target application environment.
9. What should be confirmed before selecting this module?
It is recommended to confirm the interface type, controller compatibility, brightness requirement, mechanical dimensions, and whether driver board or customization support is needed before final selection.
10. What is the main benefit of this 2.8 inch IPS round TFT LCD display?
The main benefit is that it combines a true round IPS structure, 480 × 480 resolution, 350 to 1000 nits brightness, and RGB / MIPI interface support for modern circular display applications.
Why Choose This IPS Round TFT LCD Module
The 2.8 Inch IPS Round TFT LCD Display from Brownopto combines a modern circular IPS screen design, 480 × 480 resolution, 350 to 1000 nits brightness, and flexible RGB / MIPI interface support in one compact round display module.
Whether your project focuses on smart terminals, industrial control interfaces, IoT display products, or customized circular electronics, this module offers a practical combination of visual quality, integration flexibility, and differentiated design value for development and commercial use.
