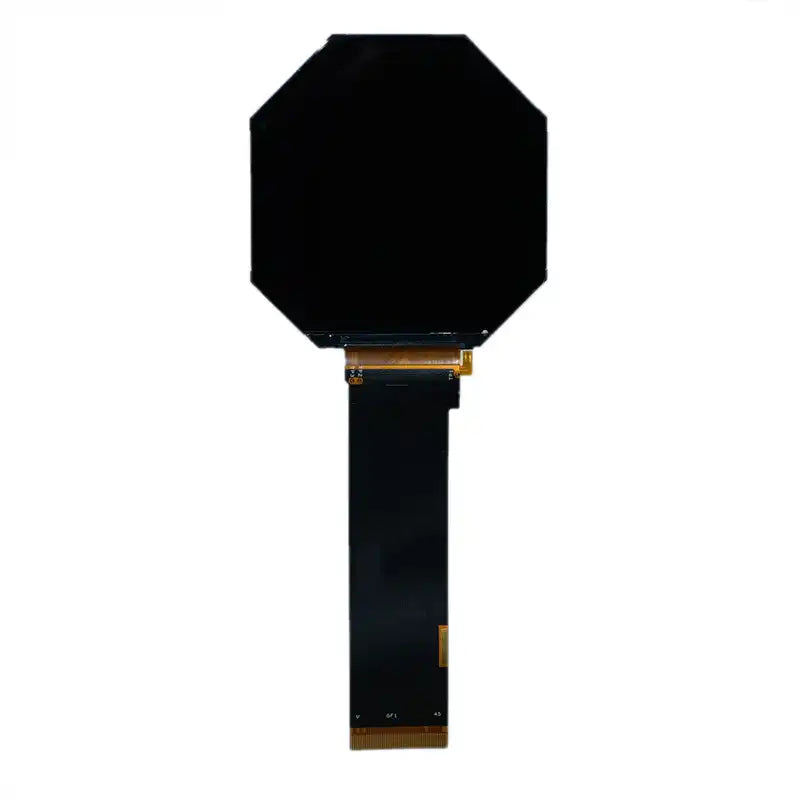

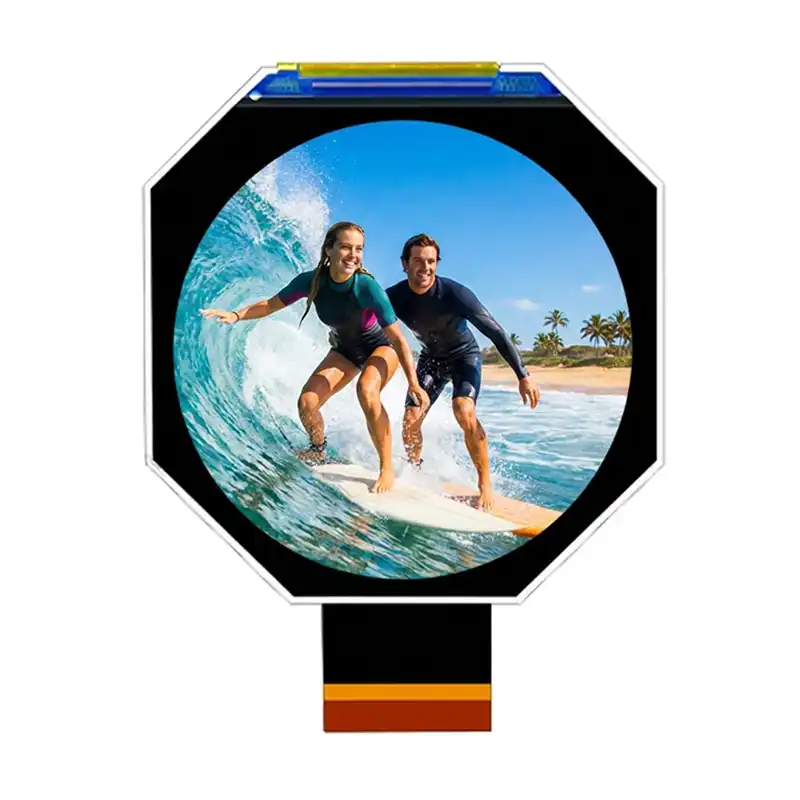

2.47 Inch 480x480 Octagonal TFT LCD Screen with MIPI Interface
Quick Product Summary
The 2.47 Inch Octagonal TFT LCD Display Module from Brownopto is a specialized special-shaped TFT display solution designed for smart devices, industrial equipment, embedded systems, customized electronics, and innovative products that require a distinctive octagonal screen structure instead of a standard rectangular or round display.
- Product type: 2.47 inch octagonal TFT LCD display module
- Core specifications: 480 × 480 resolution, HX8379-C driver IC, 35-pin MIPI interface
- Brightness: 400 nits for standard indoor and controlled environment applications
- Best for: customized smart devices, innovative industrial interfaces, embedded display systems, and non-standard screen integration projects
- Main advantage: distinctive octagonal display shape with practical resolution and reliable integration support
- Recommended use: engineering evaluation, custom product development, embedded system integration, and differentiated device UI design
- Selection note: ideal for customized or special-structure projects where irregular display appearance is important
Product Overview
The 2.47 Inch Octagonal TFT LCD Display from Brownopto is a specialized special-shaped display module designed for projects that require a unique octagonal screen structure instead of a conventional rectangular or circular display.
This octagonal TFT LCD screen features a 480 × 480 resolution, a 62.64 × 62.64 mm active area, and 400 nits brightness, offering clear image quality for customized electronic products, smart devices, industrial equipment, and innovative visual interface designs.
Powered by the HX8379-C driver IC and supporting a 35-pin MIPI interface, this module is suitable for manufacturers and developers looking for a reliable irregular shape display solution with a distinctive appearance and practical integration flexibility.
Key Features
- Special-Shaped Octagonal Design: A distinctive octagonal screen structure ideal for products requiring a non-standard and visually differentiated display format.
- 480 × 480 Resolution: Delivers balanced image clarity for icons, interface graphics, status display, and customized visual content.
- HX8379-C Driver IC: Provides stable display control and reliable performance for embedded display applications.
- 35-pin MIPI Interface: Supports practical integration for compact and customized hardware design projects.
- 400 nits Brightness: Suitable for standard indoor display environments and specialized product interface applications.
- Ideal for Custom Product Development: Especially suitable for projects requiring an irregular screen shape, special industrial design, or a differentiated product appearance.
Who This Product Is Best For
Technical Specifications
| Product Name | 2.47 Inch Octagonal TFT LCD Display Module |
|---|---|
| Brand | Brownopto |
| Display Size | 2.47 Inch |
| Display Shape | Octagonal Screen |
| Display Type | Special-Shaped TFT LCD |
| Driver IC | HX8379-C |
| Resolution | 480 × 480 |
| Brightness | 400 nits |
| Interface | 35-pin / MIPI |
| Active Area | 62.64 × 62.64 mm |
| Outline Dimensions | 136.53 × 132.20 × 1.98 mm |
Note: Before final selection, it is recommended to confirm interface compatibility, controller support, software adaptation, mechanical structure, connector position, and installation requirements according to the target application design.
Optional Matching Driver Boards
This special-shaped octagonal TFT LCD display can be matched with an optional driver board for evaluation, testing, and customized project development.
- HDMI Driver Board: Suitable for signal input testing, demonstration, and display solution development.
Product Selection Notes
This product is a pure display module with a special-shaped octagonal structure, developed for applications requiring an irregular and distinctive screen format.
It is especially suitable for customers who need a customized display solution with a unique non-standard screen design and differentiated product appearance.
- Choose this model when your project requires a reliable special-shaped TFT LCD with an octagonal appearance and MIPI interface integration.
- Confirm interface compatibility according to your controller platform, software environment, and hardware design requirements.
- Check brightness suitability based on the real installation environment and intended display effect.
- Verify mechanical fit according to active area, outline dimensions, connector structure, and housing space.
- Confirm development support needs in advance if your project requires driver board matching, display testing, or customized integration assistance.
Application Scenarios
This 2.47 inch octagonal TFT LCD module is suitable for products that require a differentiated screen shape, customized visual presentation, and practical embedded integration.
Packaging and Delivery
Each display module is packed carefully to help protect the screen surface, FPC connection area, and structural components during sample preparation, storage, and bulk shipment.
- Selling Units: Single item and bulk order supply supported
- Customization Support: Optional driver board matching and project-based display solution support are available
- Shipping: Global shipping supported, with final freight based on order quantity and destination
Frequently Asked Questions
1. Is this display a standard round screen or a special-shaped screen?
This is a special-shaped TFT LCD display with an octagonal screen structure, not a standard rectangular or ordinary circular display.
2. What resolution does this 2.47 inch octagonal display support?
It supports a 480 × 480 resolution, suitable for customized interface display, icons, graphics, and smart device visual content.
3. What interface does this special-shaped display module use?
This module uses a 35-pin MIPI interface for display signal connection and integration.
4. Which driver IC is used in this octagonal TFT LCD module?
The module uses the HX8379-C driver IC, which helps provide stable display control and reliable performance for embedded applications.
5. Is this octagonal display suitable for customized product development?
Yes. This product is especially suitable for customized projects that require a non-standard display shape, differentiated industrial design, or special visual structure.
6. Is an optional driver board available for this display?
Yes. An optional HDMI driver board is available for testing, evaluation, and display solution development.
7. What brightness does this 2.47 inch octagonal TFT display provide?
This product provides 400 nits brightness, suitable for standard indoor applications and controlled display environments.
8. What should be confirmed before selecting this display module?
It is recommended to confirm the interface type, controller compatibility, mechanical dimensions, brightness suitability, and whether driver board support is needed before final selection.
9. What is the main advantage of this 2.47 inch octagonal display?
The main advantage is that it combines a special-shaped octagonal structure, 480 × 480 resolution, HX8379-C driver IC, and 35-pin MIPI interface for distinctive customized display applications.
10. What kinds of projects is this display best suited for?
It is best suited for customized smart devices, special industrial equipment, embedded UI projects, and non-standard product designs that require a differentiated screen appearance.
Why Choose This Octagonal TFT LCD Module
The 2.47 Inch Octagonal TFT LCD Display from Brownopto offers a unique combination of special-shaped octagonal structure, 480 × 480 resolution, HX8379-C driver IC, and 35-pin MIPI interface for customized display integration.
If your project requires an irregular shape LCD module, a special-shaped TFT display, or a distinctive octagonal screen solution for innovative product development, this module is an excellent choice for customized and differentiated applications.
