35 INCH Android Bar LCD Display Wide Retail
BR35XCB-N Advertising Screen Overview
This product is a 3.5-inch high-definition advertising screen with a T972 quad-core ARM Cortex-A55 processor and 2GB of memory. It has a resolution of 3840x200 pixels and a brightness of 500 cd/m². The contrast ratio is 1000:1 and it supports a frame rate of 60 Hz. The color depth is 1.07B.
The system supports wireless network connectivity via built-in WiFi (default 2.4G single band, configurable as dual-band 2.4G/5G) and Bluetooth 4.2. It includes a 12V power supply and consumes no more than 30W of power. The net weight of the device is less than 1.5kg.
The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.
The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.
Product feature
- LCD HD display
- Support 7*24 hours work
- Single machine playback
- Split-screen display
Product Parameter(Model: BR35XCB-N)
| TFT Screen | Size | 35" |
| Display area | 877.824(H)X45.72(V)mm | |
| Resolution | 3840(V)x200(H) | |
| Brightness | 500 cd/㎡ | |
| Backlight source | WLED | |
| Lifespan | 50000 hours | |
| Viewable angle | 178°(H) X 178°(V) | |
| Contrast ratio | 1000:1 | |
| Frame rate | 60 Hz | |
| Color depth | 1.07B | |
| System | Processor | T972 Quad core AR Cortex-A55 1.9GHZ |
| Memory | 2GB | |
| Built-in storage | 16GB (16GB/32GB/64GB selectable) | |
| External storage | Max supports 128GB TF card | |
| Network/BT | Built-in WiFi (default 2.4G single band, configurable as dual-band 2.4G/5G) / BT4.2 | |

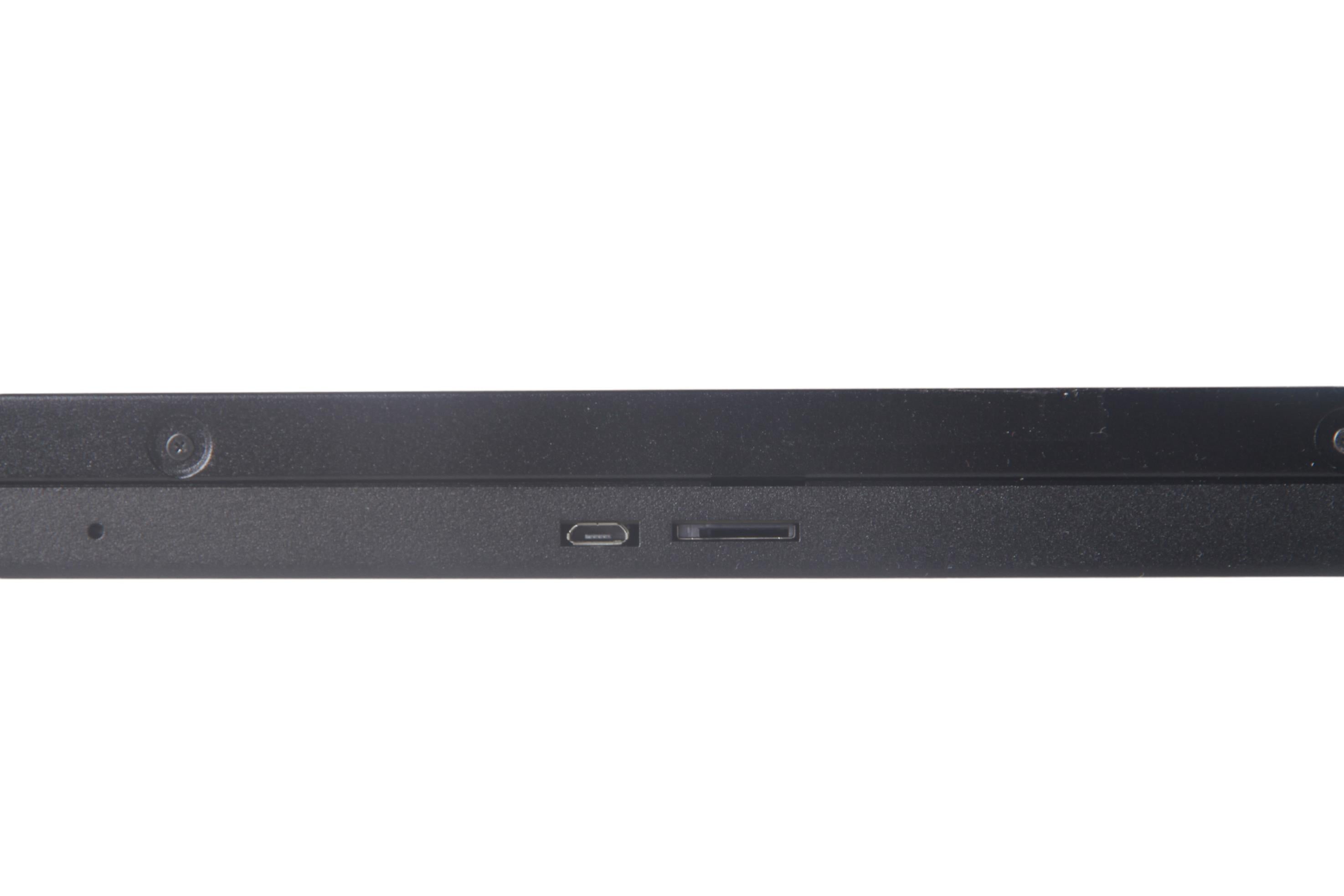

| Interface | 1*micro USB (OTG), 1*USB 2.0, 1*TF card slot, 1*Type-C (for DC 12V power supply) | |
| Operating System | Android 9.0 | |
| Power supply | Power | ≤30W |
| Voltage | DC 12V | |
| Whole machine and packaging | Size | 891.6*60.4*23.0mm |
| Net weight | ≤1.5kg | |
| Package size (4 units per box) | 1120*320*140mm | |
| Gross weight(4 units per box) | 7.55KG | |
| Environment | Working environment | Temperature: 0°C~50°C Humidity: 10%~85% Pressure: 86kPa~104kPa |
| Storage environment | Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa | |
| Certification | CE, FCC certification | Available |
| Accessories | Warranty | 1 year |
| Accessories | Adapters, wall mounting plate | |
| Other options | OTG cable | |
| Optional | information release system | Multiple Format Playback: Displays images, text, videos, web pages, and more. |
| Multi-Zone Visual Editing: Supports template management for flexible content layout. | ||
| Distributed Remote Management: Enables remote updates and scheduled power on/off. | ||
| Multi-Account Management: Allows for the assignment of over 50 types of permissions. | ||
| System Monitoring: Provides real-time status updates and terminal log queries. |
Featured collection
Product description display
BOE offers premium display solutions, including bar-shaped, high-brightness, embedded, square displays, and commercial products to fulfill diverse needs. BOE is your all-in-one solution for indoor and outdoor displays.
Product feature introduction
UHD
Ultra HD display
Feature name
Simultaneous multiple display with composite playback function
You can create composite content consisting of videos plus multiple static images or dynamic images using pre-installed software.
FAQ
Questions about BAR LCD and Advertisement Display
1. What is a Bar LCD Display?
A Bar LCD Display is a narrow, elongated LCD screen used to display advertisements, menus, or information. Its slim design makes it ideal for limited spaces such as bars, ceilings, or above doorways.
2. What are the main applications of Bar LCD Displays?
Widely used in bars, restaurants, convenience stores, subways, elevators, and shopping malls for dynamic ads, promotions, or real-time notifications.
3. Does it support landscape and portrait mounting?
Yes, most models support both landscape and portrait orientations for flexible installation.
4.How to maintain a Bar LCD Display?
Clean the screen regularly with a soft cloth, avoid direct sunlight, and check power and signal cables
5.What types of Advertisement Displays are available?
Main types include LCD, LED, OLED, transparent, and double-sided displays, suitable for various applications.
6. What are the installation options?
Supports wall-mount, floor-standing, ceiling-hang, and recessed installation for flexible deployment.
