23.1inch Android Bar Display: High-Definition Smart Signage with USB Ad Screen
BR23X1B-N Advertising Screen Overview
This device features a 23.1-inch high-definition liquid crystal display with a resolution of 1920x1584 pixels and brightness of 700 cd/m². It uses an WLED backlight source and has a lifespan of 30,000 hours. The contrast ratio is 1000:1 and it supports a frame rate of 60 Hz. The color depth is 16.7M , 72% NTSC.
The system runs on Rockchip PX30 Quad core ARM Cotex-A35 processor clocked at 1.5GHz and comes with 1GB DDR3 memory and 8GB built-in storage (selectable between 8GB/16GB/32GB/64GB). It supports external storage up to 64GB TF card. It supports wireless network connectivity via Wi-Fi and Bluetooth V4.0. The device operates on a 12V power supply and includes a 3.5mm port for headphone output which will mute the amplifier when headphones are connected, preventing simultaneous audio output.
The power consumption is ≤18W and the voltage is DC 12V. The net weight of the device is less than 0.65 kg.
The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.
The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.
Product feature
- LCD HD display
- Support 7*24 hours work
- Single player
- The APK starts automatically
Product Parameter(Model: BR23X1B-N)
| TFT Screen | Size | 23.1" |
| Display area | 585.216(H)X48.1584(V)mm | |
| Resolution | 1920(V)x158(H) | |
| Brightness | 700 cd/㎡ | |
| Backlight source | WLED | |
| Lifespan | 30000 hours | |
| Viewable angle | 85/85/85/85 (Typ.)(CR≥10) | |
| Contrast ratio | 1000:1 | |
| Frame rate | 60 Hz | |
| Color depth | 16.7M , 72% NTSC | |
| System | Processor | Rockchip PX30 Quad core ARM Cotex-A35 |
| Memory | 1GB | |
| Built-in storage | 8GB (8GB/16GB/32GB/64GB selectable) | |
| External storage | Max supports 64GB TF card | |
| Network/BT | Supports 2.4G wireless network WiFi, Bluetooth V4.0 connectivity | |

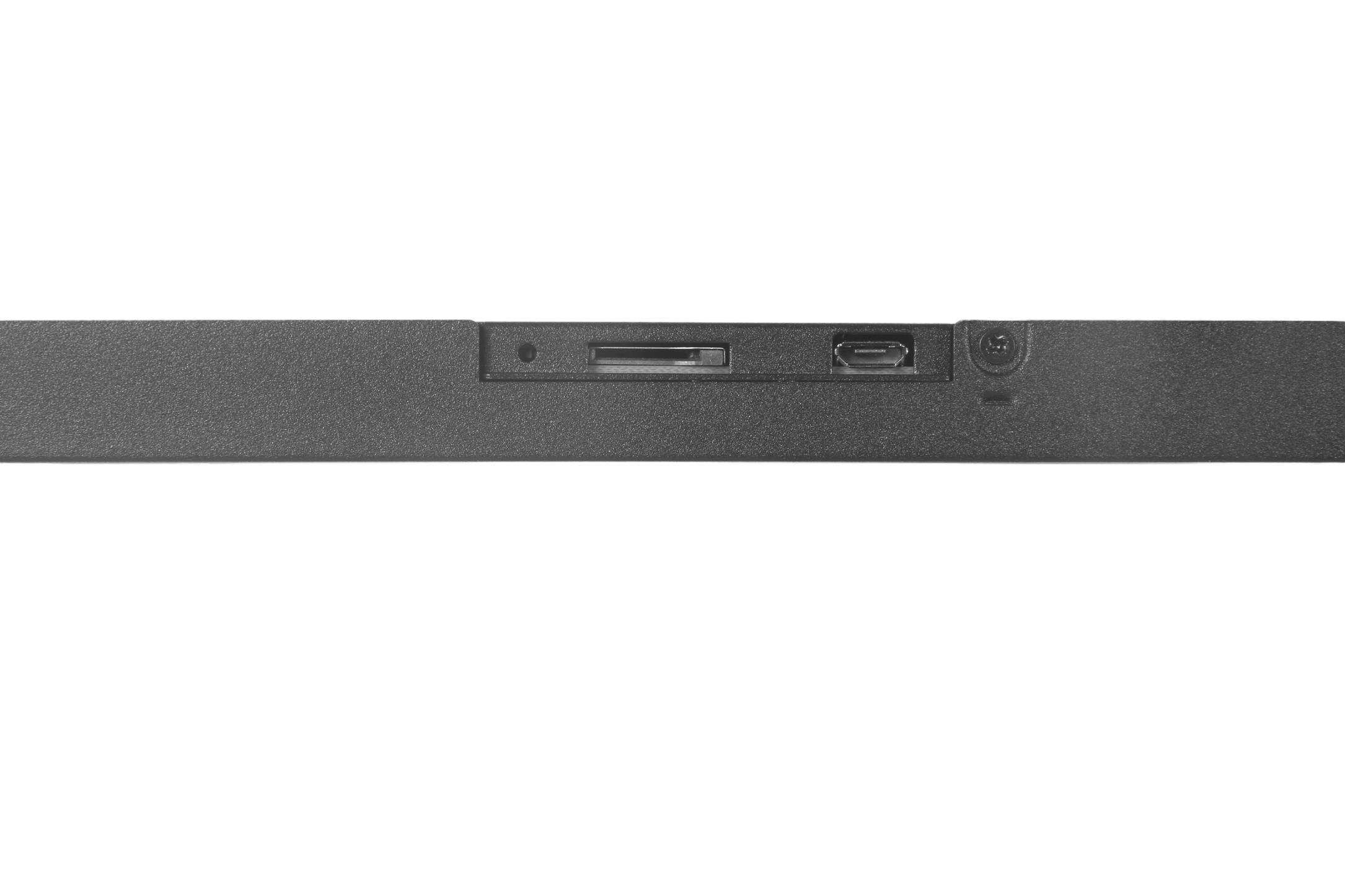

| Interface | 1 micro USB (OTG), 1 SD card, 1 Type-c (DC 12V power supply) | |
| Operating System | Android 8.1 | |
| Power supply | Power | ≤18W |
| Voltage | DC 12V | |
| Whole machine and packaging | Size | 597.2*61.8*15mm |
| Net weight | 0.65kg | |
| Package size | 820*300*140mm | |
| Gross weight | 5KG | |
| Environment | Working environment | Temperature: 0°C~50°C Humidity: 10%~85% Pressure: 86kPa~104kPa |
| Storage environment | Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa | |
| Certification | CE, FCC certification | Available |
| Accessories | Warranty | 1 year |
| Accessories | Adapters, wall mounting plate | |
| Other options | OTG cable | |
| Optional | information release system | Multiple Format Playback: Displays images, text, videos, web pages, and more. |
| Multi-Zone Visual Editing: Supports template management for flexible content layout. | ||
| Distributed Remote Management: Enables remote updates and scheduled power on/off. | ||
| Multi-Account Management: Allows for the assignment of over 50 types of permissions. | ||
| System Monitoring: Provides real-time status updates and terminal log queries. | ||
| Log Statistics and Export: Terminal logs can be queried and exported to Excel documents. |
Featured collection
Product description display
BOE offers premium display solutions, including bar-shaped, high-brightness, embedded, square displays, and commercial products to fulfill diverse needs. BOE is your all-in-one solution for indoor and outdoor displays.
Product feature introduction
UHD
Ultra HD display
Feature name
Simultaneous multiple display with composite playback function
You can create composite content consisting of videos plus multiple static images or dynamic images using pre-installed software.
FAQ
Questions about BAR LCD and Advertisement Display
1. What is a Bar LCD Display?
A Bar LCD Display is a narrow, elongated LCD screen used to display advertisements, menus, or information. Its slim design makes it ideal for limited spaces such as bars, ceilings, or above doorways.
2. What are the main applications of Bar LCD Displays?
Widely used in bars, restaurants, convenience stores, subways, elevators, and shopping malls for dynamic ads, promotions, or real-time notifications.
3. Does it support landscape and portrait mounting?
Yes, most models support both landscape and portrait orientations for flexible installation.
4.How to maintain a Bar LCD Display?
Clean the screen regularly with a soft cloth, avoid direct sunlight, and check power and signal cables
5.What types of Advertisement Displays are available?
Main types include LCD, LED, OLED, transparent, and double-sided displays, suitable for various applications.
6. What are the installation options?
Supports wall-mount, floor-standing, ceiling-hang, and recessed installation for flexible deployment.
