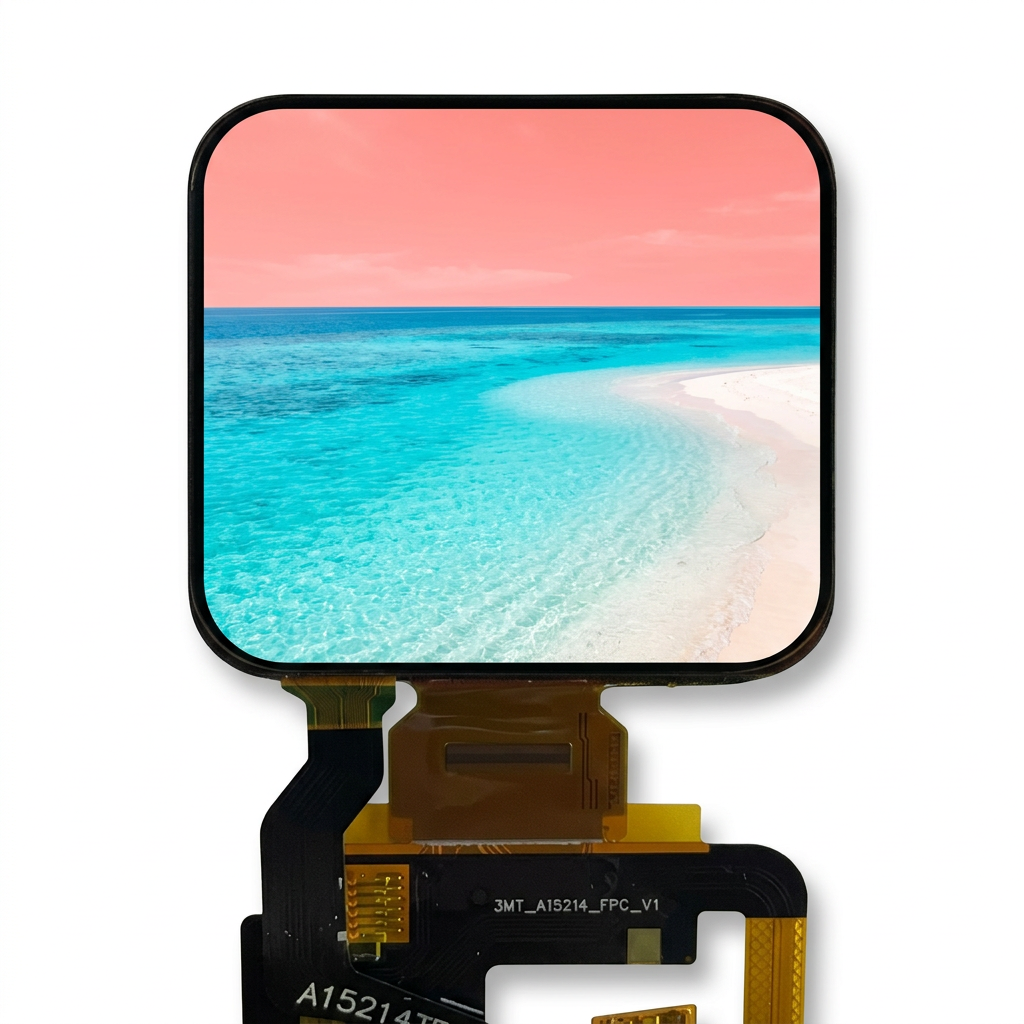

2.08 Inch Wearable AMOLED Display Module 410×480
Quick Product Summary
The 2.08 Inch AMOLED Display Module from Brownopto belongs to our Wearable Series and is developed for smartwatch and advanced wearable applications that require vivid AMOLED visuals, touch integration, and MIPI DSI connectivity. It combines a 410 × 480 resolution, rounded-rectangle structure, integrated touch control, and premium display performance for modern wearable product design.
- Series: Wearable Series
- Product type: 2.08 inch AMOLED display module for smartwatch and wearable device applications
- Core specifications: 410 × 480 resolution, AMOLED panel, MIPI DSI interface, ST7801N driver IC, CST820 touch IC
- Display structure: rounded-rectangle AMOLED module with lens and touch integration
- Brightness reference: 700 nits typical brightness, 750 nits maximum brightness, and 1000 nits typical in boost mode
- Best for: smartwatches, wearable electronics, touch-enabled compact devices, and premium AMOLED wearable products
- Main advantage: 2.08 inch wearable AMOLED display with 410 × 480 resolution, MIPI DSI interface, and touch support
- Recommended use: smartwatch development, wearable HMI design, OEM / ODM integration, and premium display evaluation projects
- Selection note: suitable for customers requiring a wearable AMOLED module with touch function and balanced clarity, brightness, and integration support
Product Overview

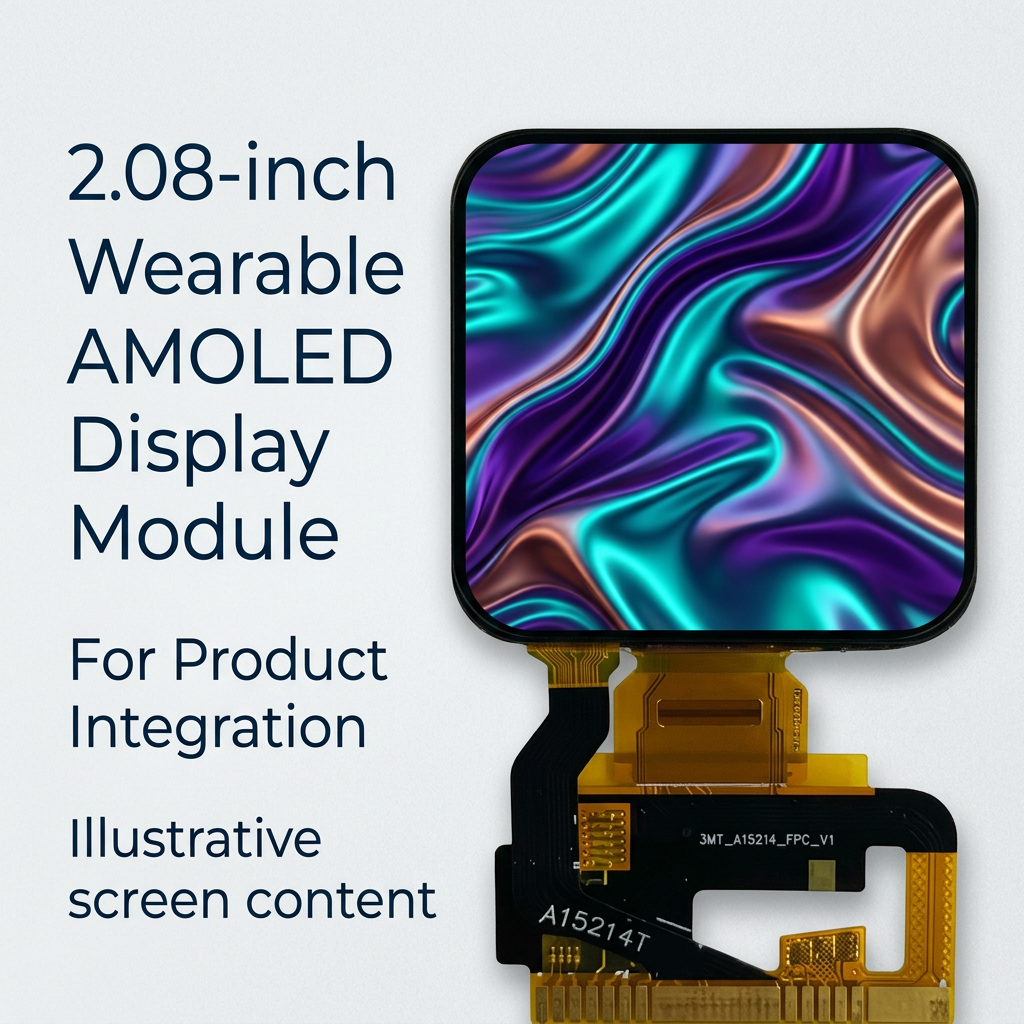

The 2.08 inch AMOLED display module from Brownopto is part of the Wearable Series and is designed for premium smartwatch and wearable electronics projects. With a 410 × 480 resolution, AMOLED display technology, MIPI DSI interface, and integrated touch architecture, this module supports modern wearable UI development with vivid display performance and touch interaction.
According to the specification, the module features an active area of 34.071 × 39.888 mm, an LTPS glass outline of 38.26 × 45.40 mm, and a module thickness of 3.52 mm with lens. This structure is suitable for wearable product development where screen quality and touch integration are key requirements.
For customers looking for a 2.08 inch wearable AMOLED display with touch capability, MIPI DSI communication, and premium AMOLED optical performance, this model is a strong candidate for smartwatch and wearable interface applications.
Key Features
- Wearable Series Design: Developed for smartwatch and wearable device applications requiring an AMOLED touch display solution.
- 2.08 Inch AMOLED Display: Offers a practical wearable display area for modern compact UI layout and touch interaction.
- 410 × 480 Resolution: Supports clear icons, readable text, and refined interface presentation for wearable products.
- MIPI DSI Interface: Suitable for advanced wearable platforms that require differential display signaling.
- Integrated Touch Support: Includes CST820 touch IC and dedicated touch reset, interrupt, and I2C communication pins.
- Premium AMOLED Performance: 700 nits typical brightness with boost mode up to 1000 nits typical.
- ST7801N Driver IC: Listed in the electrical specification for display driving control.
- Balanced Optical Quality: High contrast ratio, fast response time, and wide viewing angle help improve wearable UI experience.
Who This Product Is Best For
Technical Specifications
| Product Name | 2.08 Inch AMOLED Display Module |
|---|---|
| Series | Wearable Series |
| Brand | Brownopto |
| Model Reference | AMOLED 2.08 |
| Display Mode | AMOLED |
| Display Size | 2.08 Inch |
| Resolution | 410 × 480 |
| LTPS Glass Outline | 38.26 × 45.40 mm |
| Active Area | 34.071 × 39.888 mm |
| Pixel Pitch | 83.1 μm |
| Module Thickness | 3.52 mm (with lens) |
| Driver IC | ST7801N |
| Touch IC | CST820 |
| Interface Type | MIPI DSI |
| Display Interface Pins | MDSI_DNP, MDSI_DNO, MDSI_CP, MDSI_CN |
| Touch Interface Pins | TP_RST, TP_INT, TP_SCL, TP_SDA |
| Reset / Sync Pins | L_RES, RESET, FMARK |
| Main Power Pins | VDD, VCI_EN, VBAT |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Brightness | 650 / 700 / 750 cd/m² (Min / Typ / Max, full white) |
| Boost Brightness | 900 / 1000 cd/m² (Without CG) |
| Brightness Uniformity | 85% |
| Contrast Ratio | 10000 |
| Response Time | 2 ms typ, 3 ms max |
| Viewing Angle | 85° |
| Gamma | 1.9 / 2.2 / 2.5 |
| Flicker | -30 dB |
| Crosstalk | 1.1% |
| Color Shift | 3.5 min, 6 max JNCD at θL = 30° |
| Color Gamut | NTSC 97% min, 108% max |
| OLED Life Time | 200 hrs at 600 nits, 25°C, white color pattern; 1000 nits listed as TBD |
| AMOLED Positive Power ELVDD | 3.25 / 3.3 / 3.35 V |
| AMOLED Negative Power ELVSS | -3.35 / -3.3 / -3.25 V |
| Panel GEOA Power VDD | 5.8 / 6 / 6.2 V |
| Panel GEOA Power VEE | -6.2 / -6 / -5.8 V |
| Panel Reference Power VINT | -3 V typ |
| Vdata Voltage VGMP | 4.4 V typ |
| Vdata Voltage VGSP | 1.2 V typ in normal mode, 0.8 V typ in HBM mode |
| Digital Power Supply VDDIO | 1.65 / 1.8 / 1.95 V |
| Analog Power Supply VCI | 2.65 / 2.8 / 2.95 V |
| Normal Mode | 60 Hz, 25°C, 600 nits, Command Mode |
| HBM Mode | 60 Hz, 25°C, 1000 nits, Command Mode |
| Idle Mode | 15 Hz, 25°C, 50 nits |
| Deep Standby Mode | IVCI max 3 uA, IVDDIO max 3 uA |
Note: Before final project integration, please confirm MIPI DSI compatibility, touch architecture, firmware adaptation, and mechanical stack-up with the target wearable housing.

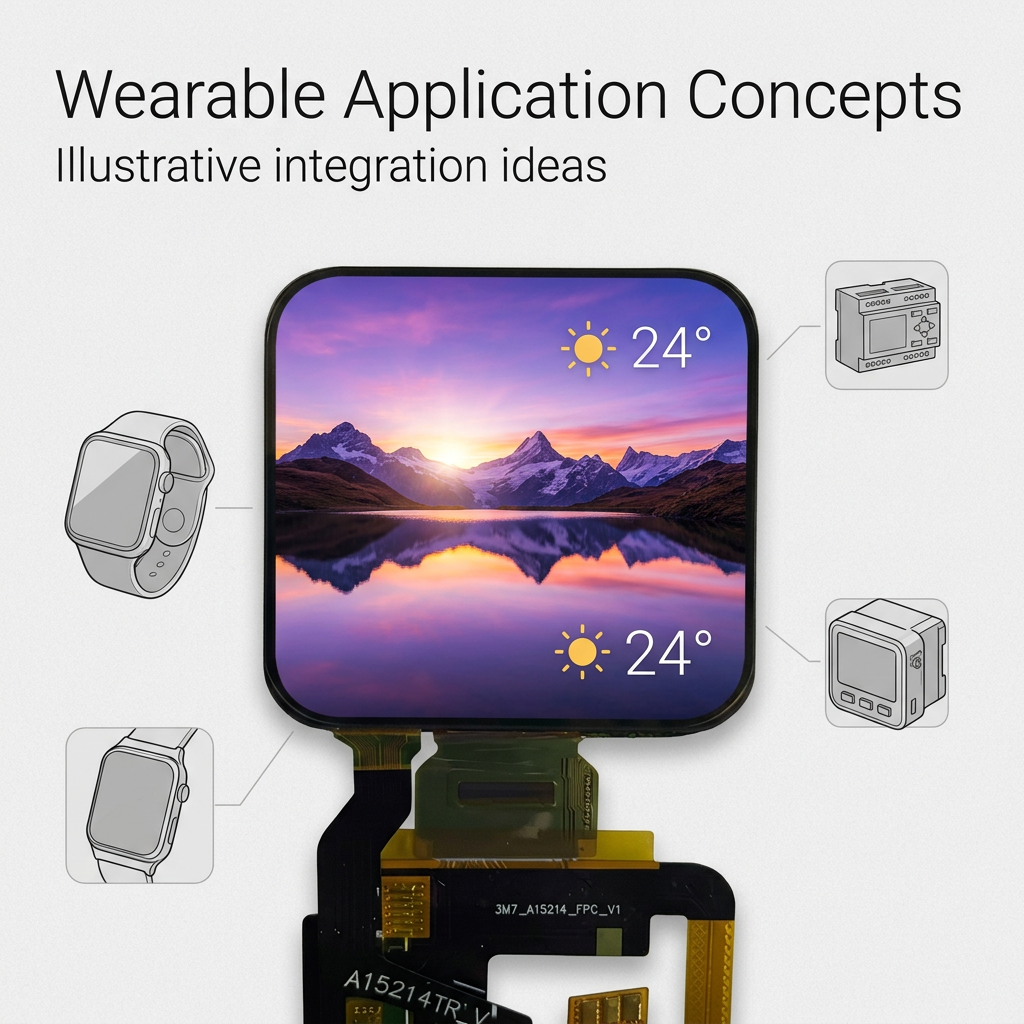

Designed for Wearable Applications
This 2.08 inch AMOLED display module is designed for wearable products that require a premium AMOLED screen, touch interaction, and modern interface support. It is suitable for smartwatch-style UI projects where clarity, responsiveness, and strong visual appeal are important.
- Wearable-oriented structure: Suitable for smartwatch and touch-enabled wearable product development.
- Sharper display presentation: 410 × 480 resolution supports refined icons, smoother UI layout, and clearer text display.
- Touch interaction support: Includes CST820 touch IC and touch I2C communication pins for wearable system integration.
- Bright AMOLED visual output: 700 nits typical brightness and up to 1000 nits typ in boost mode help improve visibility.
- Balanced optical performance: Good contrast, fast response, and wide viewing angle contribute to a premium wearable experience.

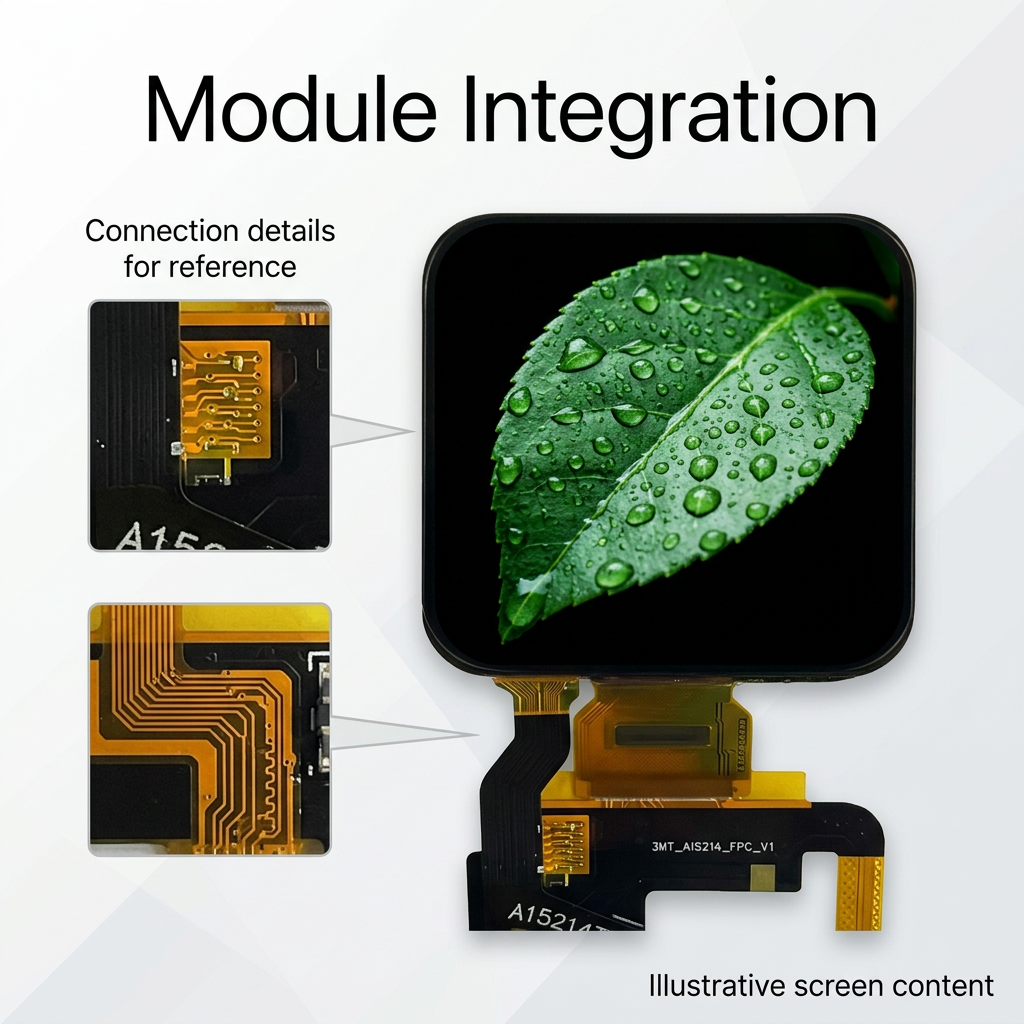

Interface and Integration Notes
This 2.08 inch wearable AMOLED display uses a MIPI DSI interface and includes integrated touch support. The interface naming in this model differs from other wearable sizes, so pin definition should be checked carefully during system integration.
- Display data: MDSI_DNP and MDSI_DNO are used for DSI-D0+ and DSI-D0- differential data signaling.
- Display clock: MDSI_CP and MDSI_CN are used for DSI clock differential signaling.
- Display reset: L_RES and RESET are both listed as reset-related signals in the interface definition.
- Frame synchronization: FMARK is listed as the tearing effect output used to synchronize frame writing.
- Main power pins: VDD, VCI_EN, and dual VBAT pins are listed for power-related connections.
- Touch section: TP_RST, TP_INT, TP_SCL, and TP_SDA are provided for touch initialization and I2C communication.

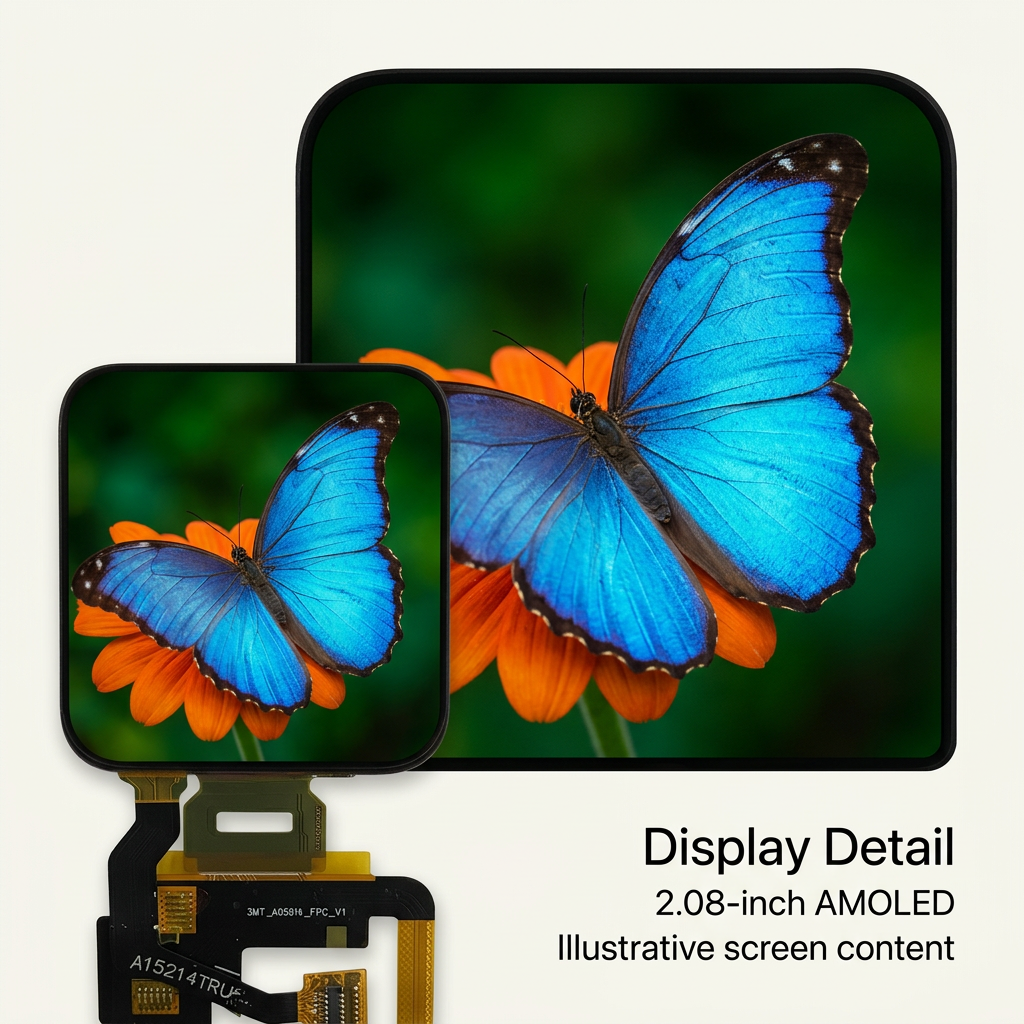

Display and Optical Performance Notes
This 410 × 480 AMOLED wearable display module offers a premium visual solution for compact smart products that require touch support, rich color presentation, and strong brightness behavior.
- Full white brightness: 650 / 700 / 750 cd/m²
- Boost brightness: 900 / 1000 cd/m² without CG
- Brightness uniformity: 85%
- Contrast ratio: 10000
- Response time: 2 ms typ, 3 ms max
- Viewing angle: 85°
- Color gamut: NTSC 97% min, 108% max
- Flicker: -30 dB
- Crosstalk: 1.1%
Electrical and Power Reference
The specification includes normal mode, HBM mode, idle mode, and deep standby references, which help customers evaluate display behavior across wearable operating conditions.
- AMOLED positive power ELVDD: 3.25 / 3.3 / 3.35 V
- AMOLED negative power ELVSS: -3.35 / -3.3 / -3.25 V
- Panel GEOA power VDD: 5.8 / 6 / 6.2 V
- Panel GEOA power VEE: -6.2 / -6 / -5.8 V
- Panel reference power VINT: -3 V typ
- Vdata voltage VGMP: 4.4 V typ
- Vdata voltage VGSP: 1.2 V typ in normal mode and 0.8 V typ in HBM mode
- Digital power supply VDDIO: 1.65 / 1.8 / 1.95 V
- Analog power supply VCI: 2.65 / 2.8 / 2.95 V
- Normal mode current: IELVDD / ELVSS 39.47 mA typ, 45.39 mA max
- HBM mode current: IELVDD / ELVSS 69.43 mA typ, 79.84 mA max
- Idle mode IVDDIO: 0.8 mA typ, 1 mA max
- Deep standby: IVCI max 3 uA and IVDDIO max 3 uA
Product Selection Notes
This model is suitable for customers who need a 2.08 inch wearable AMOLED display module with touch support, MIPI DSI communication, and premium AMOLED optical performance for smartwatch or compact wearable product development.
- Choose this model when your project requires a 2.08 inch AMOLED screen with touch capability and wearable-oriented interface design.
- Use it for smartwatch UI projects that benefit from 410 × 480 resolution and AMOLED color performance.
- Confirm MIPI DSI compatibility with your processor or display control solution before final selection.
- Verify interface naming carefully because this model uses pin names such as MDSI_DNP, MDSI_DNO, MDSI_CP, and MDSI_CN.
- Check thickness allowance because this module thickness with lens is 3.52 mm.
- Use lifetime wording cautiously because the datasheet lists OLED life time as 200 hrs at 600 nits under the specified test condition.
Application Scenarios
This 2.08 inch AMOLED display module is suitable for wearable and compact smart device applications that require AMOLED visual quality and touch interaction.
Reliability and Handling Reference
According to the datasheet, this module includes environmental, electrical, and mechanical reliability references for wearable product development, handling review, and shipment planning.
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +80°C
- High temperature operation: 70°C / 240 hrs
- Low temperature operation: -20°C / 240 hrs
- High temperature storage: 80°C / 240 hrs
- Low temperature storage: -40°C / 240 hrs
- High temperature humidity operation: 60°C / 93% RH / 240 hrs
- Thermal shock: -40°C to 85°C, dwell time 0.5 hr, 100 cycles
- Air discharge: ±4 / ±6 / ±8kV, 150pF / 330Ω, module level without CG
- Contact discharge: ±1 / ±2kV, 150pF / 330Ω, module level without CG
- Packing vibration-proof test: 2g, f = 10 → 55 → 10Hz, each X / Y / Z direction for 30 min
- Packing drop test: 60 cm height, 6 faces, 3 edges, and 1 corner
- Storage recommendation: 0°C to 40°C, relative humidity ≤ 80% for long-term storage
- Handling note: Avoid excessive pressure, unsuitable solvents, mechanical impact, and electrostatic exposure.
Packaging and Delivery
The module is packed according to the provided packing specification, including tray arrangement, vacuum bag packing, and carton protection, helping reduce transportation and storage risk.
- Selling Units: Sample support and bulk order supply available
- Customization Support: Wearable project review, interface confirmation, and integration support available
- Shipping: Worldwide shipping supported according to order arrangement and destination
- Packing reference: Tray loading, vacuum packaging, and carton packing are shown in the specification
Frequently Asked Questions
1. What is this 2.08 inch AMOLED display mainly designed for?
This module is mainly designed for smartwatch products, wearable electronics, touch-enabled AMOLED devices, and other compact smart products that require premium AMOLED display performance.
2. What resolution does this wearable AMOLED display support?
It supports 410 × 480 resolution, which is suitable for wearable UI rendering, text display, and refined icon presentation.
3. What interface does this 2.08 inch AMOLED module use?
This model uses a MIPI DSI interface with differential display signaling for wearable platform integration.
4. Does this module support touch function?
Yes. The specification lists CST820 as the touch IC and includes TP_RST, TP_INT, TP_SCL, and TP_SDA for touch integration.
5. What brightness does this wearable AMOLED display offer?
It offers 700 cd/m² typical brightness and 750 cd/m² maximum brightness under full white condition, with 1000 cd/m² typical boost brightness without CG.
6. What are the key mechanical dimensions?
The LTPS glass outline is 38.26 × 45.40 mm, the active area is 34.071 × 39.888 mm, and the module thickness with lens is 3.52 mm.
7. Which ICs are used in this module?
The datasheet lists ST7801N as the driver IC and CST820 as the touch IC.
8. What are the operating and storage temperature ranges?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -40°C to +80°C.
9. Is this display suitable for smartwatch and wearable devices?
Yes. With its 2.08 inch AMOLED panel, 410 × 480 resolution, MIPI DSI interface, and touch support, it is suitable for smartwatch and wearable electronic applications.
10. What should be confirmed before selecting this wearable AMOLED module?
Before final selection, customers should confirm MIPI DSI compatibility, touch integration design, mechanical thickness allowance, power architecture, and firmware adaptation for the target wearable platform.
Why Choose This 2.08 Inch Wearable AMOLED Display Module
The 2.08 Inch AMOLED Display Module from Brownopto is a strong option for customers developing premium wearable products that require a high-quality AMOLED screen, touch support, MIPI DSI connectivity, and smartwatch-class visual performance.
For buyers looking for a reliable 2.08 inch wearable AMOLED display, a 410 × 480 smartwatch AMOLED module, or a MIPI DSI touch AMOLED display for wearable devices, this model is suitable for engineering evaluation, OEM / ODM development, and advanced wearable product integration.
