2.06 Inch Wearable AMOLED Display Module 410×502
Quick Product Summary

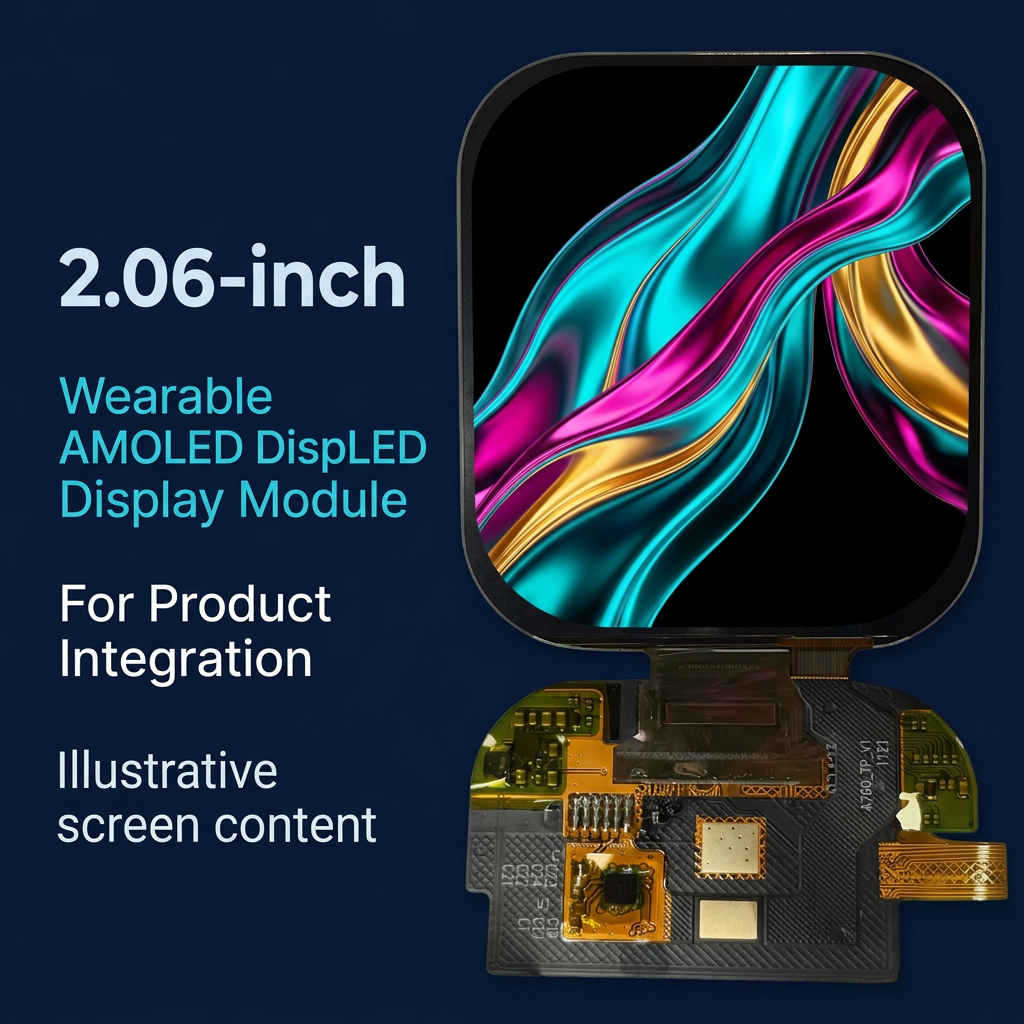

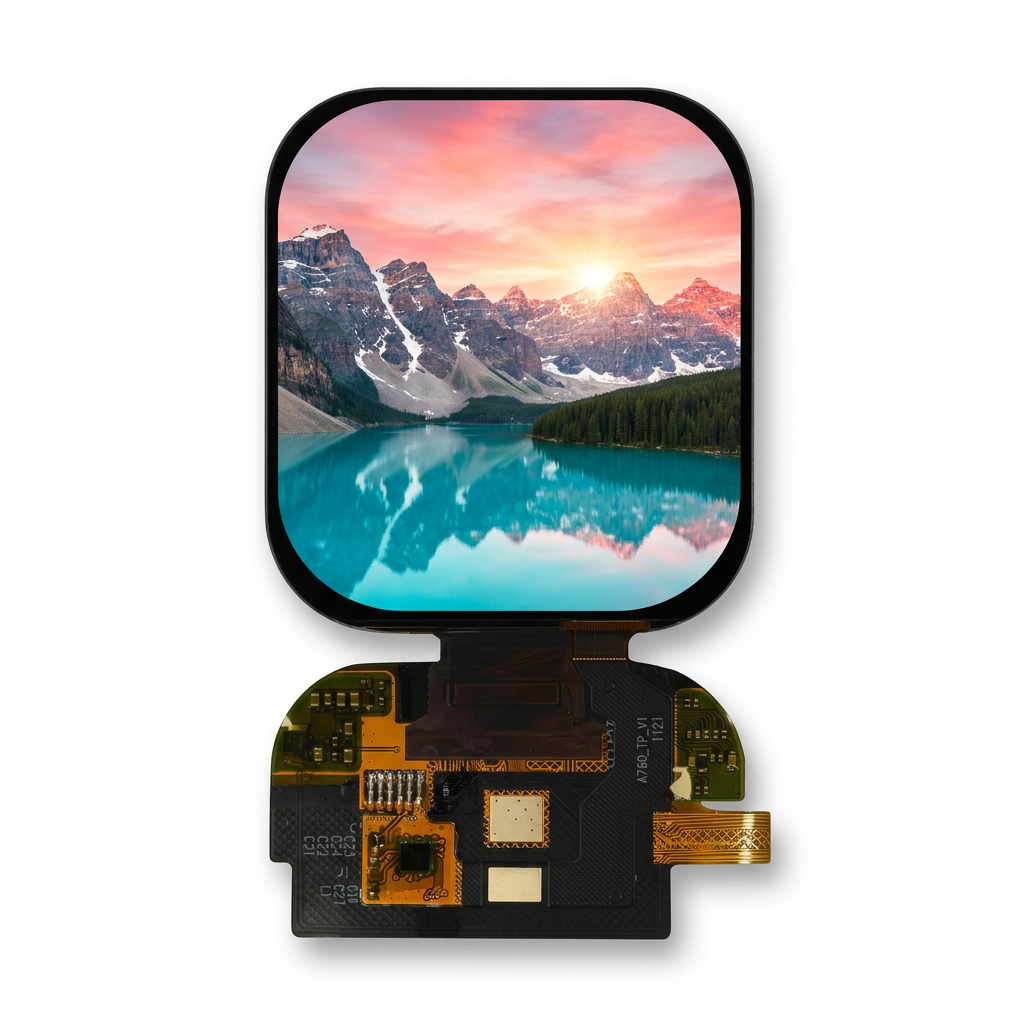

The 2.06 Inch AMOLED Display Module from Brownopto belongs to our Wearable Series and is designed for premium smartwatch and advanced wearable device applications. It combines a 410 × 502 resolution, MIPI DSI interface, integrated touch support, ultra-slim module structure, and high-brightness AMOLED performance for refined wearable UI development.
- Series: Wearable Series
- Product type: 2.06 inch AMOLED display module for smartwatch and wearable applications
- Core specifications: 410 × 502 resolution, AMOLED panel, MIPI DSI interface, CO5300 driver IC, CST9217 touch IC
- Display structure: rounded-rectangle AMOLED module with lens and touch integration
- Brightness reference: 700 nits typical brightness, 800 nits maximum brightness, and 1000 nits typical in boost mode
- Best for: premium smartwatches, wearable health devices, touch-enabled wearable products, and slim high-end embedded UI systems
- Main advantage: 2.06 inch wearable AMOLED module with 410 × 502 resolution, slim 2.08 mm structure, and MIPI DSI interface
- Recommended use: smartwatch product development, wearable HMI design, OEM / ODM integration, and premium compact display projects
- Selection note: suitable for customers requiring higher wearable clarity, thinner module design, and modern touch AMOLED integration

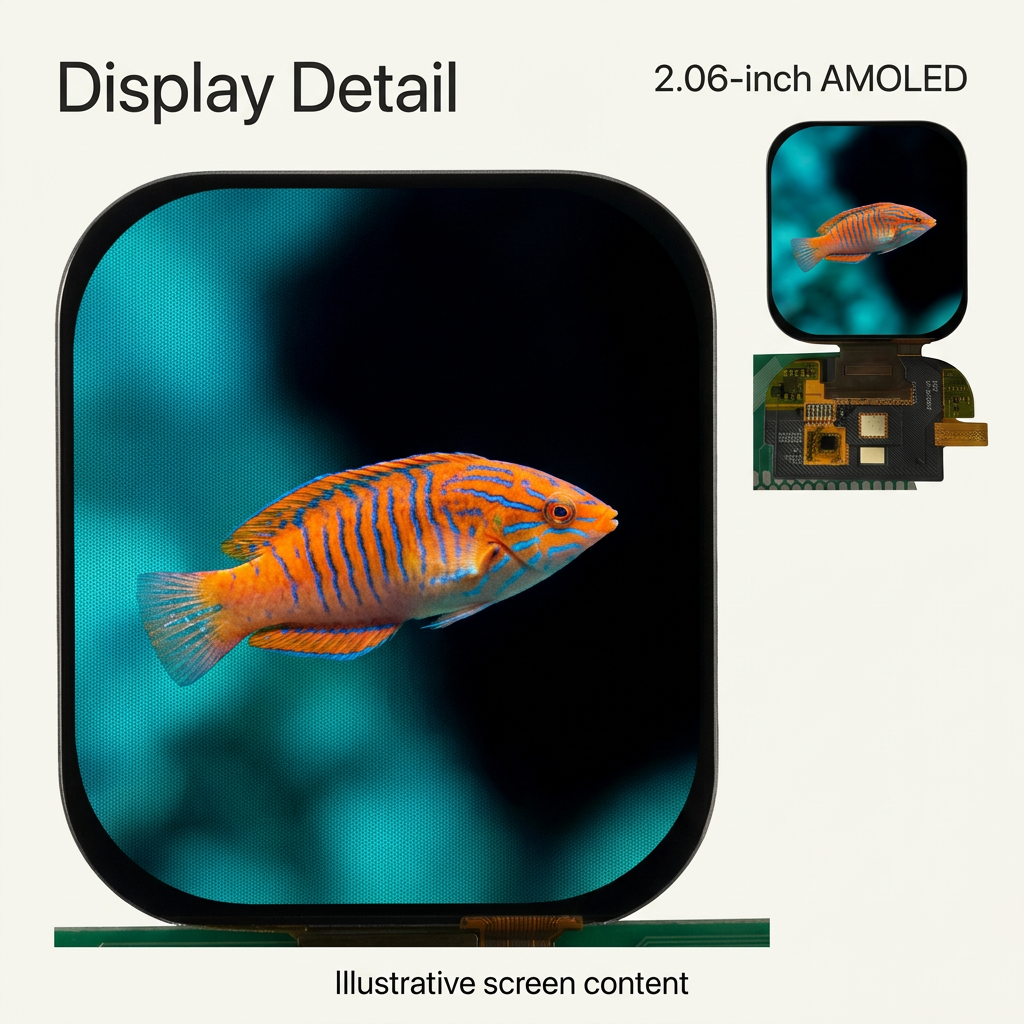

Product Overview
The 2.06 inch AMOLED display module from Brownopto is part of the Wearable Series and is developed for premium smartwatch and advanced wearable product applications. With a 410 × 502 resolution, AMOLED technology, MIPI DSI interface, and integrated touch function, this module offers a sharper and more refined display experience for compact smart devices.
According to the specification, the module features an active area of 33.09 × 40.51 mm, an LTPS glass outline of 37.5 × 45.2 mm, and an ultra-slim module thickness of 2.08 mm with lens. This makes it highly suitable for wearable products requiring elegant industrial design, optimized internal structure, and a premium visual interface.
For customers looking for a 2.06 inch wearable AMOLED display with touch capability, strong brightness, and high-resolution visual performance, this model is a strong choice for modern smart wearable platforms.
Key Features
- Wearable Series Positioning: Designed for premium smartwatch and wearable product applications that require a modern AMOLED touch display.
- 2.06 Inch AMOLED Display: Provides a larger wearable display area with a refined rounded-rectangle structure.
- 410 × 502 Resolution: Supports sharper text, clearer icons, and more detailed wearable UI graphics.
- MIPI DSI Interface: Suitable for advanced wearable system platforms requiring modern display connectivity.
- Integrated Touch Support: Includes touch-related pins and CST9217 touch IC in the specification.
- Ultra-Slim Structure: Module thickness is only 2.08 mm with lens, helping wearable products achieve thinner industrial design.
- High Brightness Performance: 700 nits typical brightness, 800 nits maximum brightness, and up to 1000 nits typical in boost mode.
- Premium Optical Quality: High contrast ratio, fast response time, and wide viewing angle help create a premium wearable experience.
Who This Product Is Best For
Technical Specifications
| Product Name | 2.06 Inch AMOLED Display Module |
|---|---|
| Series | Wearable Series |
| Brand | Brownopto |
| Model Reference | AMOLED2.06 |
| Display Mode | AMOLED |
| Display Size | 2.06 Inch |
| Resolution | 410 × 502 |
| LTPS Glass Outline | 37.5 × 45.2 mm |
| Active Area | 33.09 × 40.51 mm |
| Pixel Pitch | 76.5 × 76.5 μm |
| Module Thickness | 2.08 mm (with lens) |
| Driver IC | CO5300 |
| Touch IC | CST9217 |
| Interface Type | MIPI DSI |
| Display Interface Pins | MDSI_CLKP, MDSI_CLKN, MDSI_DOP, MDSI_DON, MDSI_D1P, MDSI_D1N |
| Touch Interface Pins | VDD, TP_RST, TP_SCL, TP_SDA, TP_INT |
| Main Interface Power Pins | VBAT, VCI_EN, IOVDD, VDD2V8 |
| Display Reset Pin | LCD_RST |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Brightness | 650 / 700 / 800 cd/m² (Min / Typ / Max, full white) |
| Boost Brightness | 900 / 1000 cd/m² (Without CG) |
| Brightness Uniformity | 85% |
| Contrast Ratio | 10000 |
| Response Time | 2 ms typ, 3 ms max |
| Viewing Angle | 85° |
| Gamma | 1.9 / 2.2 / 2.5 |
| Flicker | -30 dB |
| Crosstalk | 1.1% |
| Color Shift | 3.5 min, 6 max JNCD at θL = 30° |
| Color Gamut | NTSC 97% min, 108% max |
| OLED Life Time | 200 hrs at 600 nits, 25°C, white color pattern; 1000 nits listed as TBD |
| AMOLED Positive Power ELVDD | 3.25 / 3.3 / 3.35 V |
| AMOLED Negative Power ELVSS | -3.35 / -3.3 / -3.25 V |
| Panel GEOA Power VDD | 5.8 / 6 / 6.2 V |
| Panel GEOA Power VEE | -6.2 / -6 / -5.8 V |
| Panel Reference Power VINT | -3 V typ |
| Vdata Voltage VGMP | 4.4 V typ |
| Vdata Voltage VGSP | 1.2 V typ in normal mode, 0.8 V typ in HBM mode |
| Digital Power Supply VDDIO | 1.65 / 1.8 / 1.95 V |
| Analog Power Supply VCI | 2.65 / 2.8 / 2.95 V |
| Normal Mode | 60 Hz, 25°C, 600 nits, Command Mode |
| HBM Mode | 60 Hz, 25°C, 1000 nits, Command Mode |
| Idle Mode | 15 Hz, 25°C, 50 nits |
| Deep Standby Mode | IVCI max 3 uA, IVDDIO max 3 uA |
Note: Before final wearable system integration, please confirm MIPI DSI compatibility, touch communication design, power rail architecture, firmware adaptation, and mechanical fit with the target housing.
Designed for Premium Wearable Applications
This 2.06 inch AMOLED display module is especially suitable for premium wearable products that require a larger visual area, higher clarity, and a thinner structural profile. It is well suited for smartwatch-style devices where display quality strongly affects the overall user experience.
- Sharper wearable UI rendering: 410 × 502 resolution helps improve the look of text, icons, and interface details.
- Thinner wearable structure: 2.08 mm thickness with lens supports more refined product design.
- Touch-enabled interaction: Suitable for wearable HMI design requiring responsive touch operation.
- High-brightness AMOLED effect: 700 nits typical brightness and up to 1000 nits boost mode help improve display visibility.
- Premium visual presentation: High contrast, low flicker reference, and fast response time contribute to a better user experience.

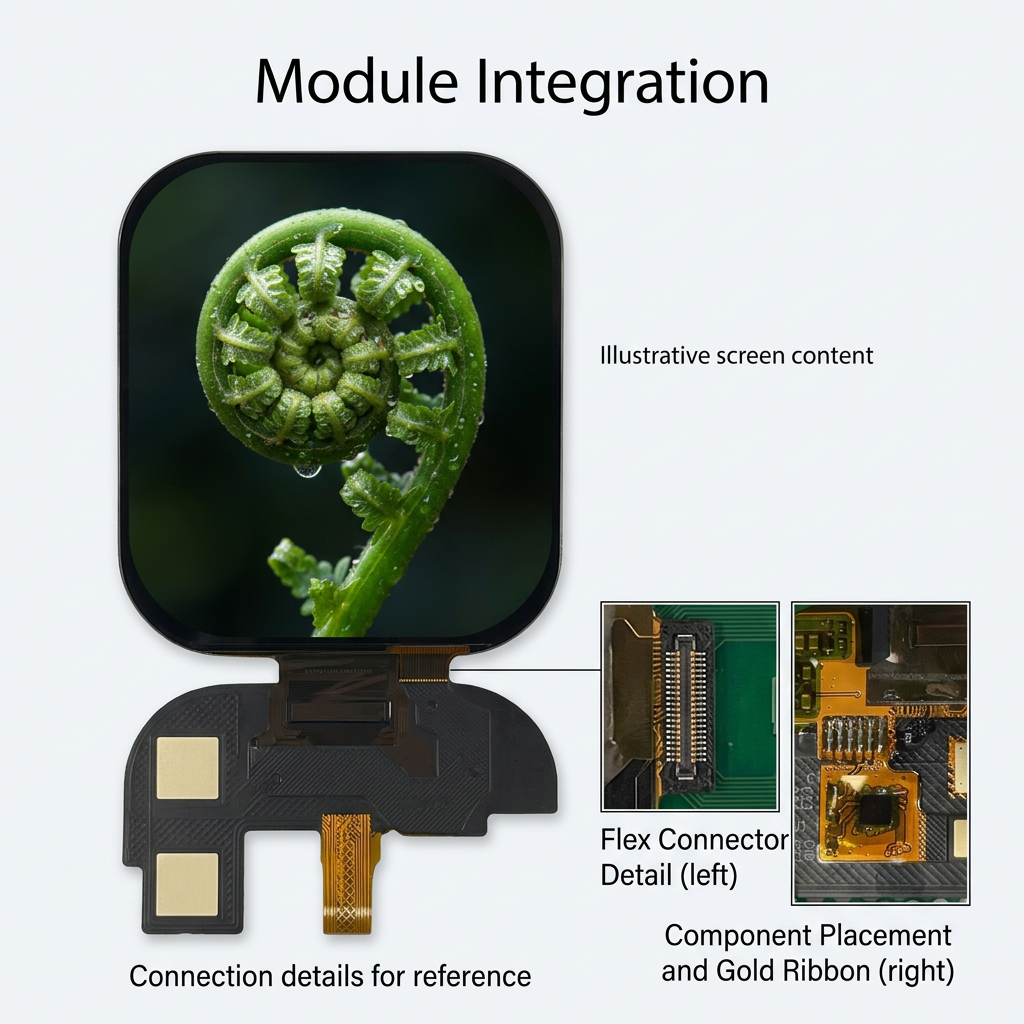

Interface and Integration Notes
This 2.06 inch wearable AMOLED display uses a MIPI DSI interface and includes dedicated touch circuitry, making it suitable for advanced wearable electronics and compact premium smart products.
- Display clock: MDSI_CLKP and MDSI_CLKN are used for DSI differential clock signals.
- Display data: MDSI_DOP / MDSI_DON and MDSI_D1P / MDSI_D1N are used for DSI differential data signals.
- Display reset: LCD_RST is used to initialize the display device.
- Frame synchronization: FMAPK is listed as tearing effect output activated by software command.
- Main power-related pins: VBAT, VCI_EN, IOVDD, and VDD2V8 are listed in the interface description.
- Touch section: VDD is used as touch IC power supply, with TP_RST, TP_SCL, TP_SDA, and TP_INT for touch function integration.
Display and Optical Performance Notes
This 410 × 502 AMOLED wearable display module is suitable for product teams that want a more refined smartwatch-class visual experience, especially where higher detail and better brightness performance are important.
- Full white brightness: 650 / 700 / 800 cd/m²
- Boost brightness: 900 / 1000 cd/m² without CG
- Brightness uniformity: 85%
- Contrast ratio: 10000
- Response time: 2 ms typ, 3 ms max
- Viewing angle: 85°
- Color gamut: NTSC 97% min, 108% max
- Flicker: -30 dB
- Crosstalk: 1.1%
Electrical and Power Reference
The specification includes normal mode, HBM mode, idle mode, and deep standby references, which are useful for wearable platform power planning and system evaluation.
- AMOLED positive power ELVDD: 3.25 / 3.3 / 3.35 V
- AMOLED negative power ELVSS: -3.35 / -3.3 / -3.25 V
- Panel GEOA power VDD: 5.8 / 6 / 6.2 V
- Panel GEOA power VEE: -6.2 / -6 / -5.8 V
- Panel reference power VINT: -3 V typ
- Vdata voltage VGMP: 4.4 V typ
- Vdata voltage VGSP: 1.2 V typ in normal mode and 0.8 V typ in HBM mode
- Digital power supply VDDIO: 1.65 / 1.8 / 1.95 V
- Analog power supply VCI: 2.65 / 2.8 / 2.95 V
- Normal mode current: IELVDD / ELVSS 39.47 mA typ, 45.39 mA max
- HBM mode current: IELVDD / ELVSS 69.43 mA typ, 79.84 mA max
- Idle mode IVDDIO: 0.8 mA typ, 1 mA max
- Deep standby: IVCI max 3 uA and IVDDIO max 3 uA
Product Selection Notes
This model is suitable for customers who need a 2.06 inch wearable AMOLED display module with touch support, higher resolution, premium brightness, and a slimmer module profile for next-generation wearable products.
- Choose this model when your project needs a larger wearable AMOLED display with sharper UI rendering.
- Use it for smartwatch-style products that benefit from 410 × 502 resolution and touch interaction.
- Confirm MIPI DSI compatibility with the target processor or control platform before final selection.
- Check mechanical structure carefully using LTPS outline, active area, and 2.08 mm thickness data.
- Evaluate brightness strategy if your design needs both standard mode and boost mode performance.
- Use lifetime wording carefully because the datasheet lists OLED life time as 200 hrs at 600 nits under the specified test condition.

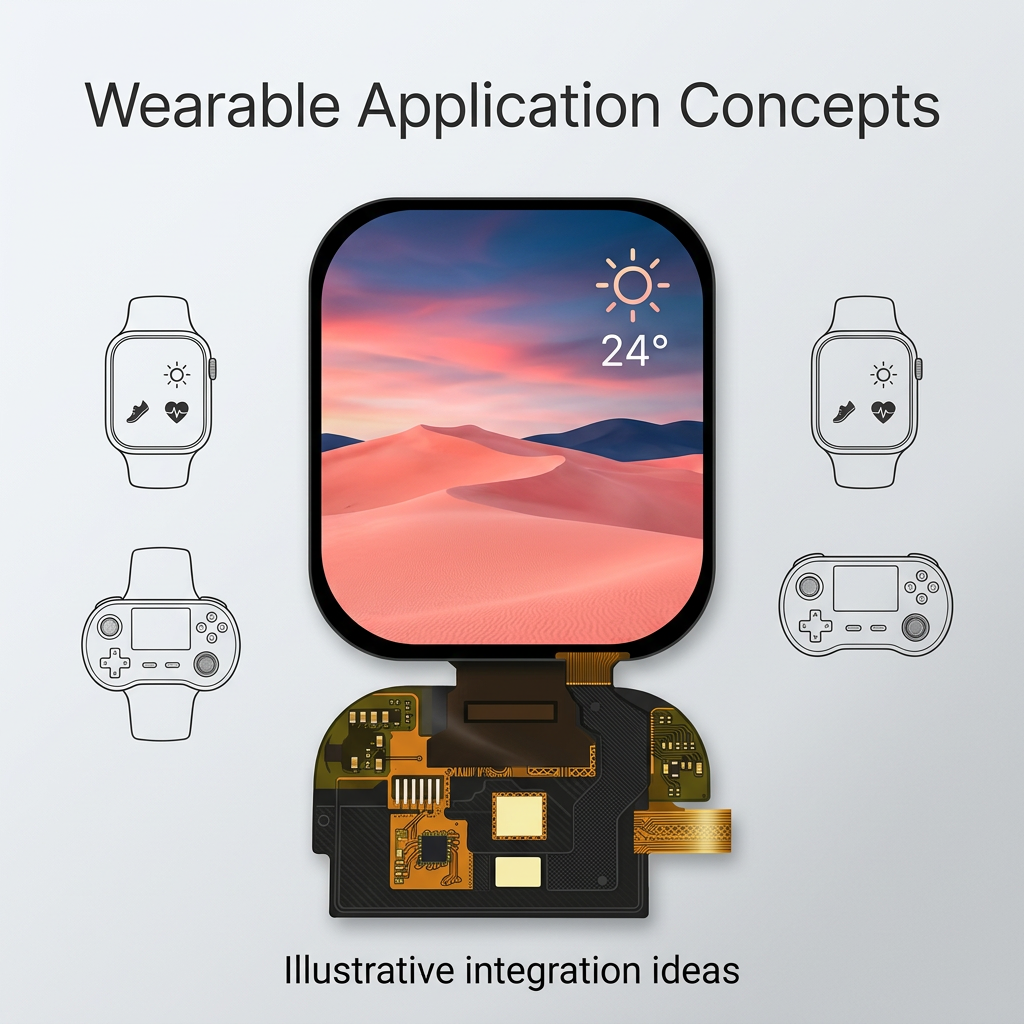

Application Scenarios
This 2.06 inch AMOLED display module is especially suitable for wearable and compact premium smart device applications.
Reliability and Handling Reference
According to the datasheet, this module includes environmental, electrical, and mechanical reliability references for wearable product development, storage evaluation, and shipping arrangement.
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +80°C
- High temperature operation: 70°C / 240 hrs
- Low temperature operation: -20°C / 240 hrs
- High temperature storage: 80°C / 240 hrs
- Low temperature storage: -40°C / 240 hrs
- High temperature humidity operation: 60°C / 93% RH / 240 hrs
- Thermal shock: -40°C to 85°C, dwell time 0.5 hr, 100 cycles
- Air discharge: ±4 / ±6 / ±8kV, 150pF / 330Ω, module level without CG
- Contact discharge: ±1 / ±2kV, 150pF / 330Ω, module level without CG
- Packing vibration-proof test: 2g, f = 10 → 55 → 10Hz, each X / Y / Z direction for 30 min
- Packing drop test: 60 cm height, 6 faces, 3 edges, and 1 corner
- Storage recommendation: 0°C to 40°C, relative humidity ≤ 80% for long-term storage
- Handling note: Avoid excessive pressure, unsuitable solvents, mechanical shock, and electrostatic exposure.
Packaging and Delivery
The module is packed according to the provided packaging specification, including tray layout, vacuum bag packing, and carton protection, helping improve safety during storage and transportation.
- Selling Units: Sample support and bulk order supply available
- Customization Support: Wearable project review, interface confirmation, and integration support available
- Shipping: Worldwide shipping supported according to order and destination arrangement
- Packing reference: Tray loading, vacuum package arrangement, and carton packing are shown in the packing section
Frequently Asked Questions
1. What is this 2.06 inch AMOLED display mainly designed for?
This module is mainly designed for premium smartwatch products, wearable electronics, health wearable devices, and other compact smart products that require a high-quality AMOLED touch display.
2. What resolution does this wearable AMOLED display support?
It supports 410 × 502 resolution, which is suitable for sharper smartwatch UI graphics, clearer text, and refined icon rendering.
3. What interface does this 2.06 inch AMOLED module use?
This model uses a MIPI DSI interface with differential clock and data signals, making it suitable for advanced wearable display platforms.
4. Does this module support touch function?
Yes. The specification lists CST9217 as the touch IC and includes touch-related pins such as VDD, TP_RST, TP_SCL, TP_SDA, and TP_INT.
5. What brightness does this wearable AMOLED display offer?
It offers 700 cd/m² typical brightness and 800 cd/m² maximum brightness under full white condition, with 1000 cd/m² typical boost brightness without CG.
6. What are the key mechanical dimensions?
The LTPS glass outline is 37.5 × 45.2 mm, the active area is 33.09 × 40.51 mm, and the module thickness with lens is 2.08 mm.
7. Which ICs are used in this module?
The datasheet lists CO5300 as the driver IC and CST9217 as the touch IC.
8. Is this AMOLED display suitable for slim wearable products?
Yes. With a 2.08 mm thickness with lens, it is suitable for wearable designs that require a slim internal structure and premium product appearance.
9. What are the operating and storage temperature ranges?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -40°C to +80°C.
10. What should be confirmed before selecting this wearable AMOLED module?
Before final selection, customers should confirm MIPI DSI compatibility, touch integration, mechanical fit, power rail design, brightness planning, and firmware adaptation for the target wearable platform.
Why Choose This 2.06 Inch Wearable AMOLED Display Module
The 2.06 Inch AMOLED Display Module from Brownopto is a strong option for wearable product developers who need a larger AMOLED display area, sharper 410 × 502 resolution, slim 2.08 mm structure, touch support, and premium brightness performance.
For buyers looking for a reliable 2.06 inch wearable AMOLED display, a 410 × 502 smartwatch AMOLED module, or a slim MIPI DSI touch AMOLED display for wearable devices, this model is suitable for engineering evaluation, OEM / ODM development, and premium wearable product integration.
