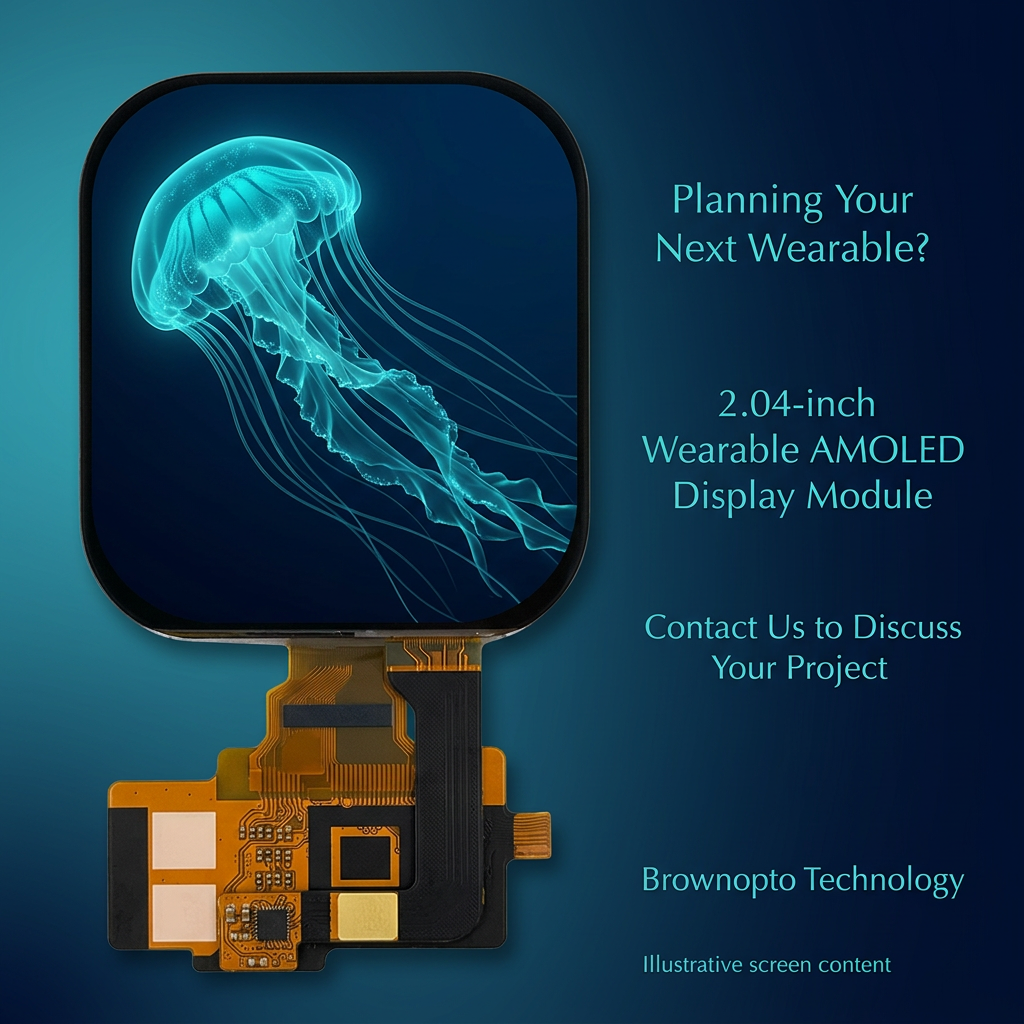

2.04 Inch Wearable AMOLED Display Module 368×448
Quick Product Summary
The 2.04 Inch AMOLED Display Module from Brownopto belongs to our Wearable Series, developed for premium smartwatch and next-generation wearable device applications. It combines a 368 × 448 resolution, MIPI DSI interface, integrated touch structure, slim module profile, and high-brightness AMOLED performance for advanced wearable UI design.
- Series: Wearable Series
- Product type: 2.04 inch AMOLED display module for smartwatch and wearable device applications
- Core specifications: 368 × 448 resolution, AMOLED panel, MIPI DSI interface, CO5300 driver IC, CST9217 touch IC
- Display structure: rounded-rectangle AMOLED module with lens and touch integration
- Brightness reference: 700 nits typical brightness, 750 nits maximum brightness, and 1000 nits typical in boost mode
- Best for: smartwatches, wearable displays, health devices, compact smart terminals, and premium touch AMOLED products
- Main advantage: 2.04 inch wearable AMOLED display with touch support, slim 2.62 mm thickness, and MIPI DSI connectivity
- Recommended use: smartwatch product development, wearable HMI design, OEM / ODM integration, and premium embedded UI projects
- Selection note: suitable for customers seeking a larger wearable AMOLED module with balanced clarity, brightness, and slim structure
Product Overview

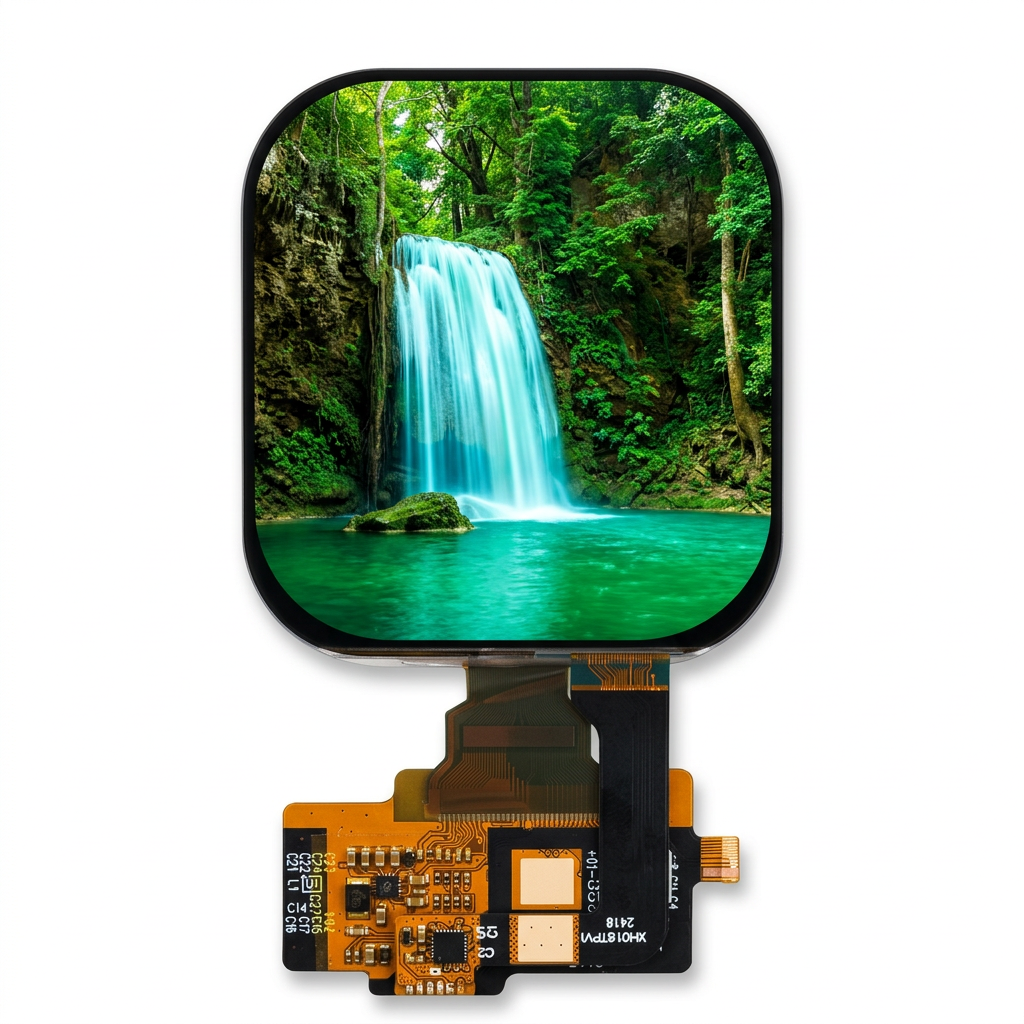

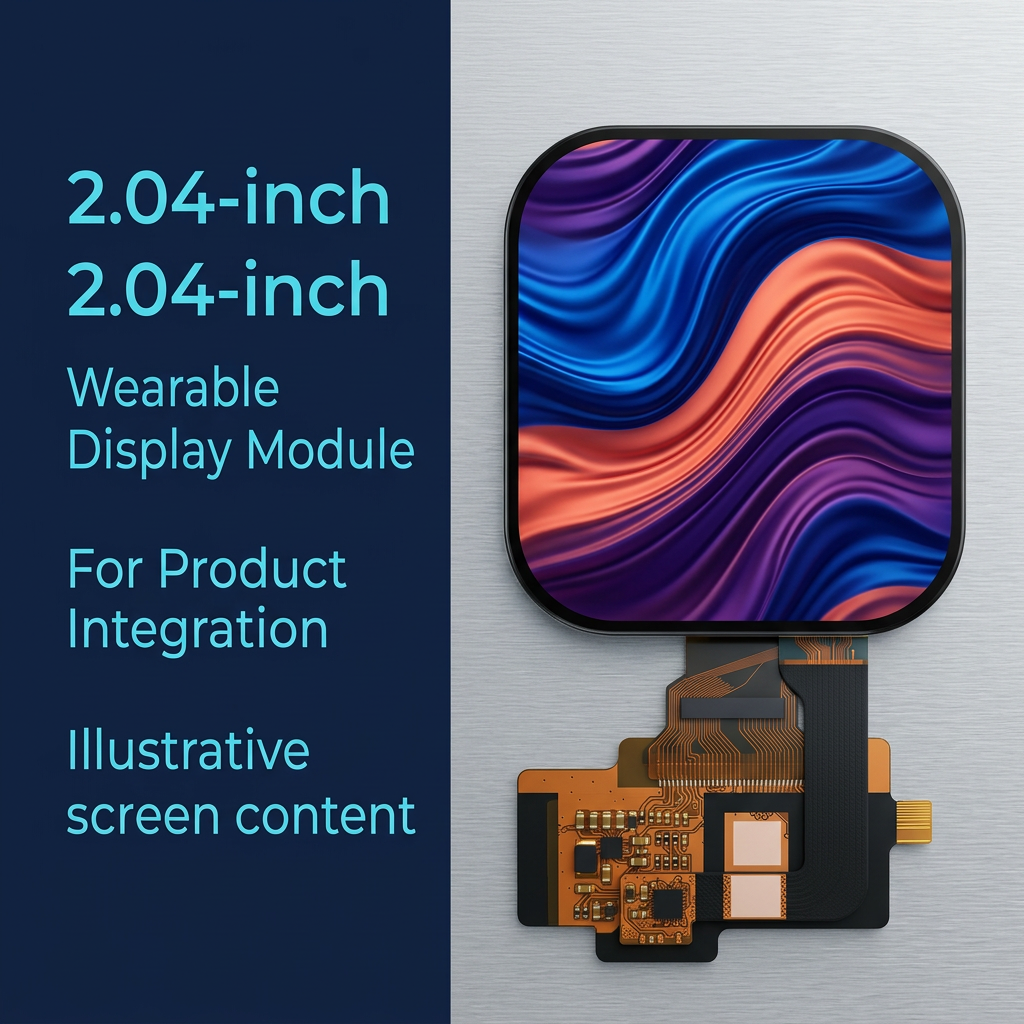

The 2.04 inch AMOLED display module from Brownopto is a refined display solution designed for the Wearable Series, especially for premium smartwatch and advanced wearable device applications. With a 368 × 448 resolution, AMOLED panel technology, MIPI DSI interface, and integrated touch support, this module delivers a high-end visual experience in a compact and elegant form factor.
According to the specification, the module features an active area of 32.84 × 39.98 mm, an LTPS glass outline of 34.64 × 42.89 mm, a module outline of 37.30 × 44.60 mm, and a thin module profile of 2.62 mm with lens. This slim structure makes it especially suitable for wearable products where internal space optimization and product comfort matter.
For customers looking for a 2.04 inch wearable AMOLED display with touch capability, premium brightness, and reliable MIPI integration, this model is well positioned for modern smart wearable platforms.
Key Features
- Wearable Series Design: Built for smartwatch, wearable electronics, and premium compact smart display applications.
- 2.04 Inch AMOLED Display: Provides a larger wearable viewing area while keeping a compact module footprint.
- 368 × 448 Resolution: Supports clear icons, refined text rendering, and smooth smartwatch UI presentation.
- MIPI DSI Interface: Suitable for advanced wearable platforms requiring modern high-speed display communication.
- Integrated Touch Support: Includes touch-related interface definition and CST9217 touch IC in the specification.
- Slim Structure: Module thickness is only 2.62 mm with lens, making it a strong option for slim wearable product design.
- High Brightness AMOLED Performance: 700 nits typical brightness with boost mode up to 1000 nits typical.
- Premium Visual Experience: High contrast ratio, fast response time, and wide viewing angle help improve wearable UI quality.
Who This Product Is Best For
Technical Specifications
| Product Name | 2.04 Inch AMOLED Display Module |
|---|---|
| Series | Wearable Series |
| Brand | Brownopto |
| Model Reference | AMOLED2.04 |
| Display Mode | AMOLED |
| Display Size | 2.04 Inch |
| Resolution | 368 × 448 |
| LTPS Glass Outline | 34.64 × 42.89 mm |
| Module Outline | 37.30 × 44.60 mm |
| Active Area | 32.84 × 39.98 mm |
| Pixel Pitch | 76.5 × 76.5 μm |
| Module Thickness | 2.62 mm (with lens) |
| Driver IC | CO5300 |
| Touch IC | CST9217 |
| Interface Type | MIPI DSI |
| Display Interface Pins | MDSI_CLKP, MDSI_CLKN, MDSI_D0P, MDSI_D0N, MDSI_D1P, MDSI_D1N |
| Touch Interface Pins | TP_VDD, TP_RST, TP_SCL, TP_SDA, TP_INT |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Brightness | 650 / 700 / 750 cd/m² (Min / Typ / Max, full white) |
| Boost Brightness | 900 / 1000 cd/m² (Without CG) |
| Brightness Uniformity | 85% |
| Contrast Ratio | 10000 |
| Response Time | 2 ms typ, 3 ms max |
| Viewing Angle | 85° |
| Gamma | 1.9 / 2.2 / 2.5 |
| Flicker | -30 dB |
| Crosstalk | 1.1% |
| Color Shift | 3.5 min, 6 max JNCD at θL = 30° |
| Color Gamut | NTSC 97% min, 108% max |
| OLED Life Time | 200 hrs at 600 nits, 25°C, white color pattern; 1000 nits listed as TBD |
| AMOLED Positive Power ELVDD | 3.25 / 3.3 / 3.35 V |
| AMOLED Negative Power ELVSS | -3.35 / -3.3 / -3.25 V |
| Panel GEOA Power VDD | 5.8 / 6 / 6.2 V |
| Panel GEOA Power VEE | -6.2 / -6 / -5.8 V |
| Panel Reference Power VINT | -3 V typ |
| Vdata Voltage VGMP | 4.4 V typ |
| Vdata Voltage VGSP | 1.2 V typ in normal mode, 0.8 V typ in HBM mode |
| Digital Power Supply VDDIO | Normal mode: 3.25 / 3.3 / 3.35 V; HBM mode: 1.7 / 1.8 / 1.9 V |
| Analog Power Supply VCI | Normal mode: 3.25 / 3.3 / 3.35 V; HBM mode: 2.7 / 2.8 / 2.9 V |
| Normal Mode | 60 Hz, 25°C, 600 nits, Command Mode |
| HBM Mode | 60 Hz, 25°C, 1000 nits, Command Mode |
| Idle Mode | 15 Hz, 25°C, 50 nits |
| Deep Standby Mode | IVCI max 3 uA, IVDDIO max 3 uA |
Note: For final wearable product integration, please confirm processor compatibility, MIPI DSI support, touch communication design, battery power strategy, and mechanical stack-up with the target housing structure.

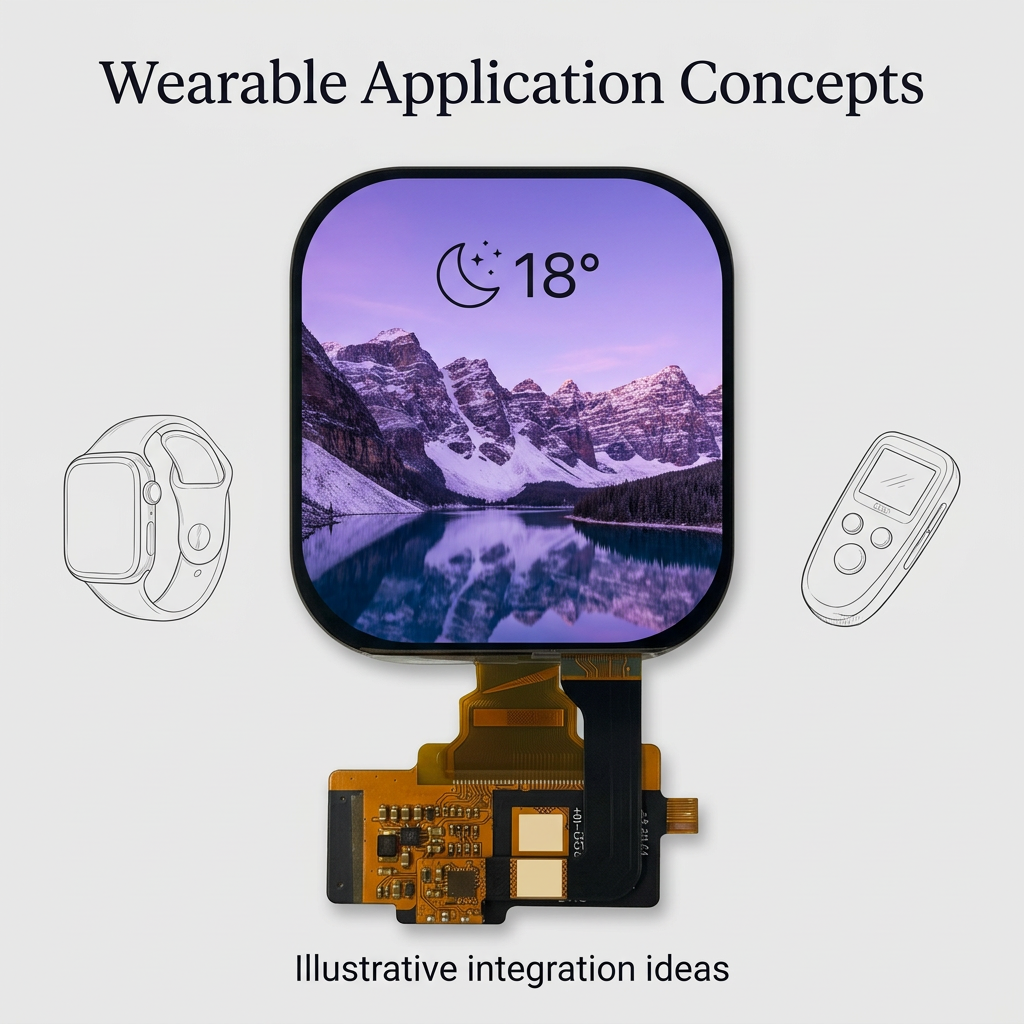

Designed for Wearable Applications
This 2.04 inch AMOLED display module is especially suitable for the wearable market. Its balanced screen size, slim structure, touch capability, and premium AMOLED visual quality help product teams create more modern and immersive wearable UI experiences.
- Larger wearable viewing area: 2.04 inch format is suitable for richer smartwatch-style interfaces and clearer information layout.
- Comfortable mechanical profile: 2.62 mm thickness with lens helps optimize internal wearable device structure.
- Touch-enabled user interaction: Supports touch-based HMI design for wearable applications.
- Premium AMOLED visual effect: High contrast and vivid color performance improve perceived product quality.
- High-brightness support: Boost mode up to 1000 nits typical helps improve visibility in demanding viewing conditions.

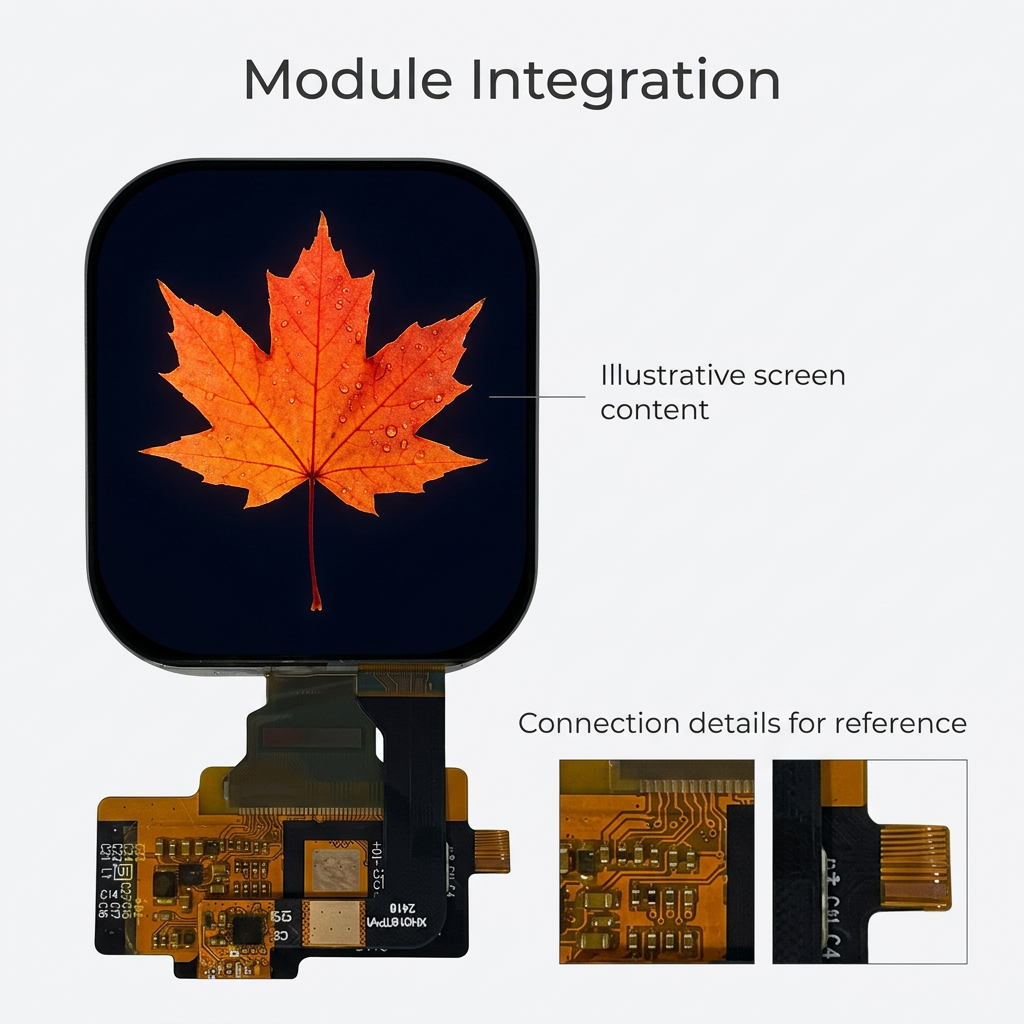

Interface and Integration Notes
This Wearable Series 2.04 inch AMOLED display uses a MIPI DSI interface and includes a dedicated touch section, making it suitable for advanced wearable electronics that require both display performance and touch interaction.
- Display clock: MDSI_CLKP and MDSI_CLKN are used for DSI differential clock transmission.
- Display data: MDSI_D0P / MDSI_D0N and MDSI_D1P / MDSI_D1N are used for differential data transmission.
- Display reset: RST is used for display device initialization.
- Frame synchronization: FMAPK is listed as tearing effect output activated by software command.
- Touch power and reset: TP_VDD and TP_RST are provided for the touch IC section.
- Touch communication: TP_SCL and TP_SDA are used for touch I2C communication, while TP_INT is used for interrupt output.
Display and Optical Performance Notes

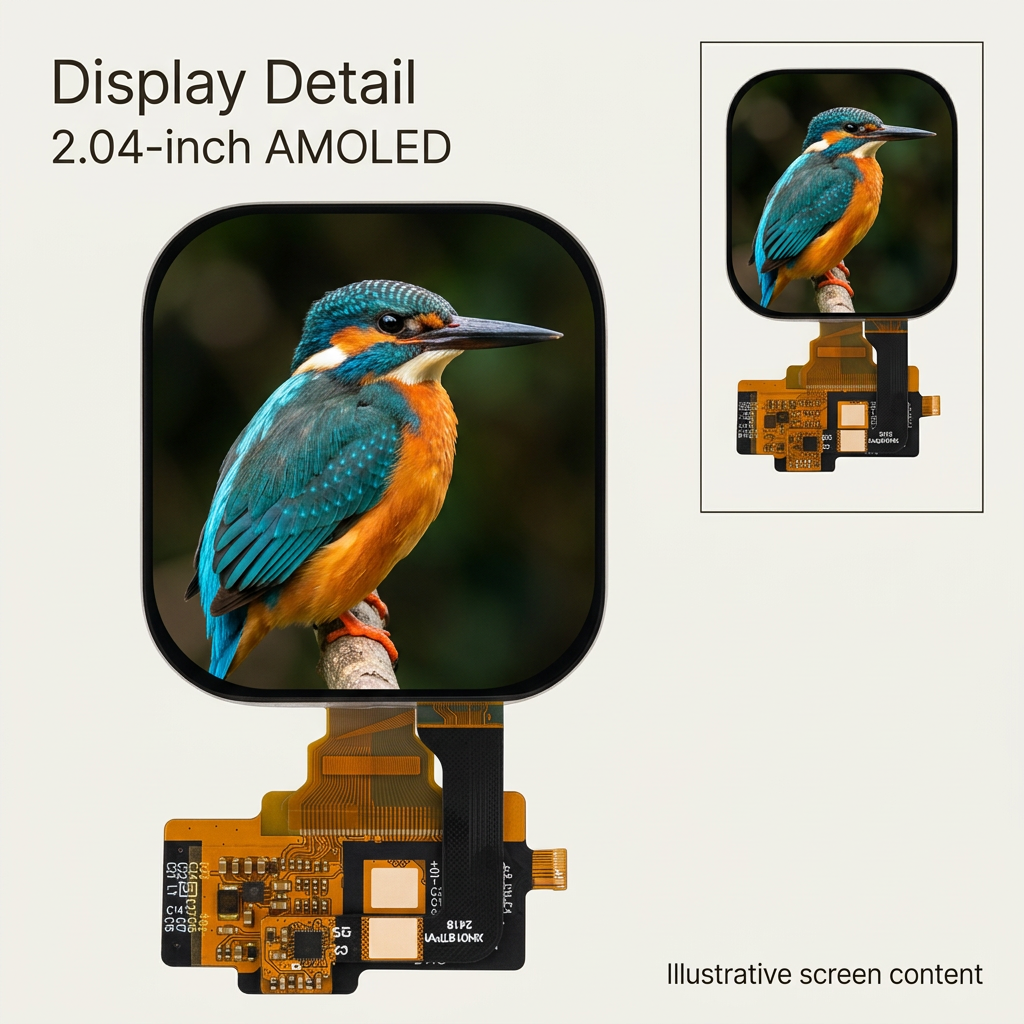

This 368 × 448 AMOLED wearable display module is designed to provide a premium viewing experience for compact smart devices, especially wearable products that require elegant visual output and touch operation.
- Full white brightness: 650 / 700 / 750 cd/m²
- Boost brightness: 900 / 1000 cd/m² without CG
- Brightness uniformity: 85%
- Contrast ratio: 10000
- Response time: 2 ms typ, 3 ms max
- Viewing angle: 85°
- Color gamut: NTSC 97% min, 108% max
- Flicker: -30 dB
- Crosstalk: 1.1%
Electrical and Power Reference
The specification provides normal mode, HBM mode, idle mode, and deep standby references for wearable system design, helping customers evaluate power planning for different display usage conditions.
- AMOLED positive power ELVDD: 3.25 / 3.3 / 3.35 V
- AMOLED negative power ELVSS: -3.35 / -3.3 / -3.25 V
- Panel GEOA power VDD: 5.8 / 6 / 6.2 V
- Panel GEOA power VEE: -6.2 / -6 / -5.8 V
- Panel reference power VINT: -3 V typ
- Vdata voltage VGMP: 4.4 V typ
- Vdata voltage VGSP: 1.2 V typ in normal mode and 0.8 V typ in HBM mode
- Digital power supply VDDIO: 3.25 / 3.3 / 3.35 V in normal mode; 1.7 / 1.8 / 1.9 V in HBM mode
- Analog power supply VCI: 3.25 / 3.3 / 3.35 V in normal mode; 2.7 / 2.8 / 2.9 V in HBM mode
- Normal mode current: IELVDD / ELVSS 39.47 mA typ, 45.39 mA max
- HBM mode current: IELVDD / ELVSS 69.43 mA typ, 79.84 mA max
- Idle mode IVDDIO: 0.8 mA typ, 1 mA max
- Deep standby: IVCI max 3 uA and IVDDIO max 3 uA
Product Selection Notes
This model is ideal for customers who need a 2.04 inch wearable AMOLED display module with touch functionality, modern interface support, and a slim structure for next-generation smart wearable products.
- Choose this model when your wearable product requires a larger and more premium AMOLED viewing area.
- Use it for smartwatch-style UI projects that benefit from 368 × 448 resolution and touch interaction.
- Confirm MIPI DSI compatibility with the target processor or main control platform before final integration.
- Check wearable internal structure carefully using the module outline, active area, and 2.62 mm thickness data.
- Evaluate power strategy if your product needs both standard viewing mode and boost brightness mode.
- Handle lifetime wording carefully because the datasheet lists OLED life time as 200 hrs at 600 nits under the specified test condition.
Application Scenarios
This 2.04 inch AMOLED display module is especially suitable for wearable and compact premium smart device applications.
Reliability and Handling Reference
According to the datasheet, this module includes environmental, electrical, and mechanical reliability references for product development, transport validation, and storage review.
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +80°C
- High temperature operation: 70°C / 240 hrs
- Low temperature operation: -20°C / 240 hrs
- High temperature storage: 80°C / 240 hrs
- Low temperature storage: -40°C / 240 hrs
- High temperature humidity operation: 60°C / 93% RH / 240 hrs
- Thermal shock: -40°C to 85°C, dwell time 0.5 hr, 100 cycles
- Air discharge: ±4 / ±6 / ±8kV, 150pF / 330Ω, module level without CG
- Contact discharge: ±1 / ±2kV, 150pF / 330Ω, module level without CG
- Packing vibration-proof test: 2g, f = 10 → 55 → 10Hz, each X / Y / Z direction for 30 min
- Packing drop test: 60 cm height, 6 faces, 3 edges, and 1 corner
- Storage recommendation: 0°C to 40°C, relative humidity ≤ 80% for long-term storage
- Handling note: Avoid excessive pressure, unsuitable solvents, glass impact, and electrostatic exposure.
Packaging and Delivery
The module is packed according to the provided packing specification, including tray organization, vacuum bag packing, and carton protection, helping reduce handling and transportation risks during shipment.
- Selling Units: Sample support and bulk order supply available
- Customization Support: Wearable project discussion, interface review, and integration support available
- Shipping: Worldwide shipping supported according to order plan and destination arrangement
- Packing reference: Tray loading, vacuum package arrangement, and carton packing are shown in the packing section
Frequently Asked Questions
1. What is this 2.04 inch AMOLED display mainly designed for?
This module is mainly designed for smartwatch products, wearable electronics, health wearable devices, and other compact smart products that require a premium AMOLED touch display.
2. What resolution does this wearable AMOLED display support?
It supports 368 × 448 resolution, which is well suited for smartwatch UI design, detailed icons, and clear text presentation.
3. What interface does this 2.04 inch AMOLED module use?
This model uses a MIPI DSI interface with differential clock and data signals, making it suitable for advanced wearable display platforms.
4. Does this module support touch function?
Yes. The specification lists CST9217 as the touch IC and includes dedicated touch pins such as TP_VDD, TP_RST, TP_SCL, TP_SDA, and TP_INT.
5. What brightness does this wearable AMOLED display offer?
It offers 700 cd/m² typical brightness and 750 cd/m² maximum brightness under full white condition, with 1000 cd/m² typical boost brightness without CG.
6. What are the key mechanical dimensions?
The LTPS glass outline is 34.64 × 42.89 mm, the module outline is 37.30 × 44.60 mm, the active area is 32.84 × 39.98 mm, and the module thickness with lens is 2.62 mm.
7. Which ICs are used in this module?
The datasheet lists CO5300 as the driver IC and CST9217 as the touch IC.
8. Is this AMOLED display suitable for slim wearable products?
Yes. With a 2.62 mm thickness with lens, it is suitable for wearable product designs where slim structure and premium visual presentation are important.
9. What are the operating and storage temperature ranges?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -40°C to +80°C.
10. What should be confirmed before selecting this wearable AMOLED module?
Before final selection, customers should confirm MIPI DSI compatibility, touch integration, mechanical fit, power rail design, brightness mode planning, and firmware adaptation for the target wearable system.
Why Choose This 2.04 Inch Wearable AMOLED Display Module
The 2.04 Inch AMOLED Display Module from Brownopto is a strong option for customers developing high-end wearable products that require a larger display area, elegant touch interaction, slim structure, and premium AMOLED visual performance.
For buyers looking for a reliable 2.04 inch wearable AMOLED display, a 368 × 448 smartwatch AMOLED module, or a MIPI DSI touch AMOLED display for wearable devices, this model is suitable for engineering evaluation, OEM / ODM development, and next-generation wearable product integration.
