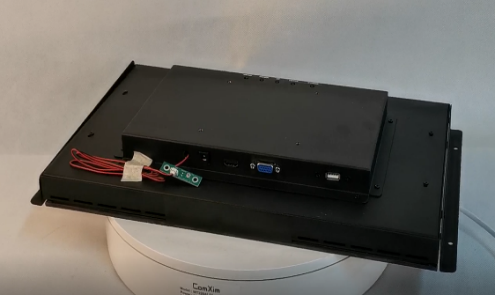

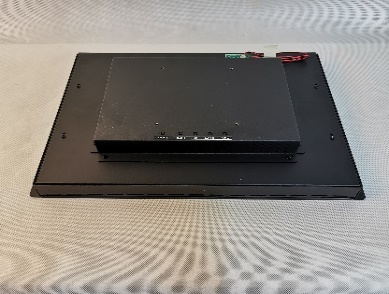

10.1-inch Open-frame Capacitive Touch Display
BR101H2S Advertising Screen Overview
Introducing our advanced 10.1-inch open-frame capacitive touch display, designed to provide users with a premium visual experience and dependable operation. This display features:
- A 10.1-inch LCD screen with a resolution of 1280*800 and a 16:10 aspect ratio for crisp, clear images.
- ILITEK capacitive touch technology that supports up to 10 touch points for responsive and accurate interaction.
- A durable 1.1mm AG glass cover and a long lifespan of over 5000 million touches.
- Customizable appearance size to fit your specific needs, along with wall mounting holes measuring 100*100mm for easy installation.
- DC 12V power input and support for VGA, HDMI, and USB interfaces for versatile connectivity options.
- Enhanced performance with anti-interference and anti-surge protection provided by industrial-grade components.
- Optional brightness control through automatic light adjustment or AOD menu settings.
- Low power consumption, with a maximum of 18W during operation and only 0.5W in standby mode.
- A wide temperature and humidity tolerance range of -30°C to 80°C and 20%-85%, respectively.
When setting up the display on a cabinet, remember to apply waterproof silicone at the touch glass panel and cabinet interface to prevent water infiltration.
Product Parameter(Model:BR101H2S )
| LCD Specification | Size | 10.1" |
| Display Area | 216.96*(H)*135.6(mm) | |
| Resolution | 1280*800 | |
| Pitch | 0.1695*0.1695(mm) | |
| Aspect Ratio | 16:10 | |
| Viewing Angle(L/R/U/D) | 85°/85°/85°/85°(Typ.) | |
| Contrast | 900：1 | |
| Color | 16.7M | |
| Response Time | 30(ms) | |
| Touch Screen Specification | Touch Type | Capacitive touch(G+G), ILITEK solution |
| Support Point | 10 points | |
| Touch Mode | Fingers touch | |
| Surface Hardness | ≥6H | |
| Response Time | <3(ms) | |
| Transmittance | >85% | |
| Life Span | >5000 million times | |
| Glass Cover | 1.1mm thickness AG glass | |
| Linear Deviation | ≤2.5mm | |
| Fogging | 3%(Max) | |
| Whole Machine Specification | Appearance Size | Customizable according to customer requirements |
| Wall Mounting Hole | 100*100mm | |
| Net Weight | TBA | |
| Gross Weight | TBA | |
| Package Size | TBA | |
| Display Solution Configuration Specifications | Interface | VGA*1 |
| HDMI*1 | ||
| USB*1 Touch use | ||
| Customer Motherboard Interface To be determined | ||
| Power Input | DC 12V 2A | |
| Performance | Industrial grade motherboard, solid-state electrolyte, anti-interference, anti-surge | |
| Brightness Control | Auto light adjustment/AOD menu control Optional | |
| Packing List | Display *1 | |
| HDMI data line *1 | ||
| Manual *1 | ||
| Adapter *1_12V adapter | ||
| Power Consumption | Rated Power≤18W | |
| Standby Power≤0.5W | ||
| Rated Voltage 100-240V(50/60Hz) | ||
| Environment | Storage Temperature and Humidity: -30~80℃, 20~85RH, no condensation | |
| Operating Temperature and Humidity: -20~70℃, 20~85RH, no condensation | ||
| Heat Dissipation Treatment | Air-cooled heat dissipation, display will add temperature control module and fan inside | |
| Precautions | When the display is mounted onto the cabinet, waterproof silicone should be applied at the contact area between the touch glass panel and the cabinet to prevent water from seeping through the gap between the two surfaces and entering the cabinet. | |
