10.1 inch IPS 1024x600px TFT without Touchscreen
Model: BR101JII3650-A3 V.3
Size/Resolution: 10.1" Diagonal | 1024x600 Pixels
Display Type: Standard
Touchscreen: None
Interface: RGB
Resource download: specification
BR101JII3650-A3 V.3 Introduction
Featuring an RGB interface, this module offers R.G.B. Vertical Stripe pixel configuration for superior visuals. It operates in an IPS, Normally Black mode for excellent color accuracy and wide viewing angles. It comes without TSP and is illuminated efficiently by 36 LEDs. With its all-direction viewing capability and NTSC 50% ratio, it's a high-quality display solution in many contexts.
Correlation Parameter
| Feature | Spec | |
| Characteristics | LCD Size | 10.1 inch |
| Display Format | 1024 (RGB) X600 | |
| Interface | RGB | |
| Connect type | Connector | |
| Color Depth | 16.7M | |
| Technology type | a-Si | |
| Display Spec. Pixel pitch (mm) | 0.1695*0.1695 | |
| Pixel Configuration | R.G.B.Vertical Stripe | |
| Display Mode | IPS Normally Black | |
| NTSC | 50% | |
| Surface Treatment | HC | |
| Viewing Direction | ALL | |

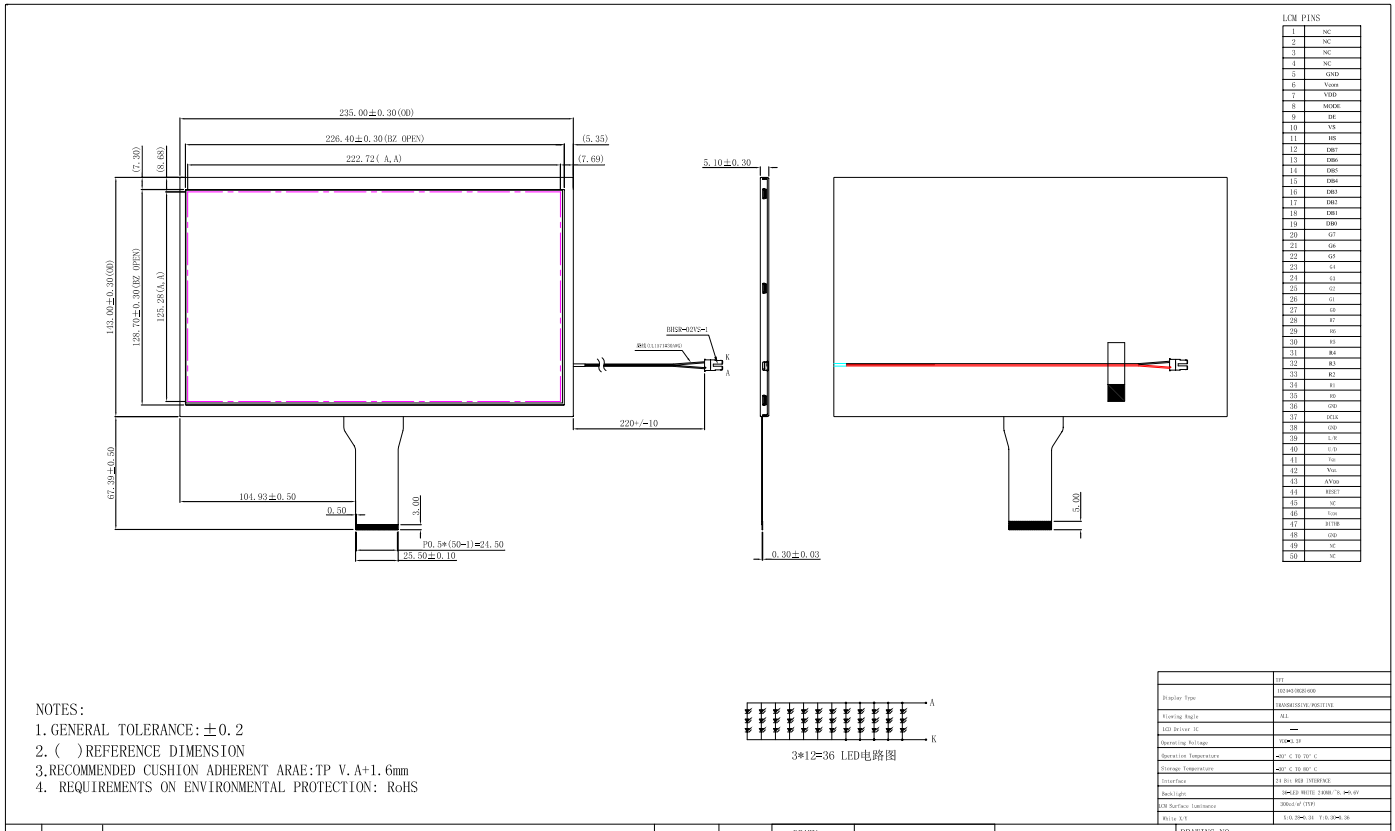

| Mechanical | LCM (W x H x D) (mm) | 235.0*143.0*5.1 |
| Active Area(mm) | 222.72*125.28 | |
| With /Without TSP | Without TSP | |
| Weight (g) | TBD | |
| LED Numbers | 36 LEDs | |
