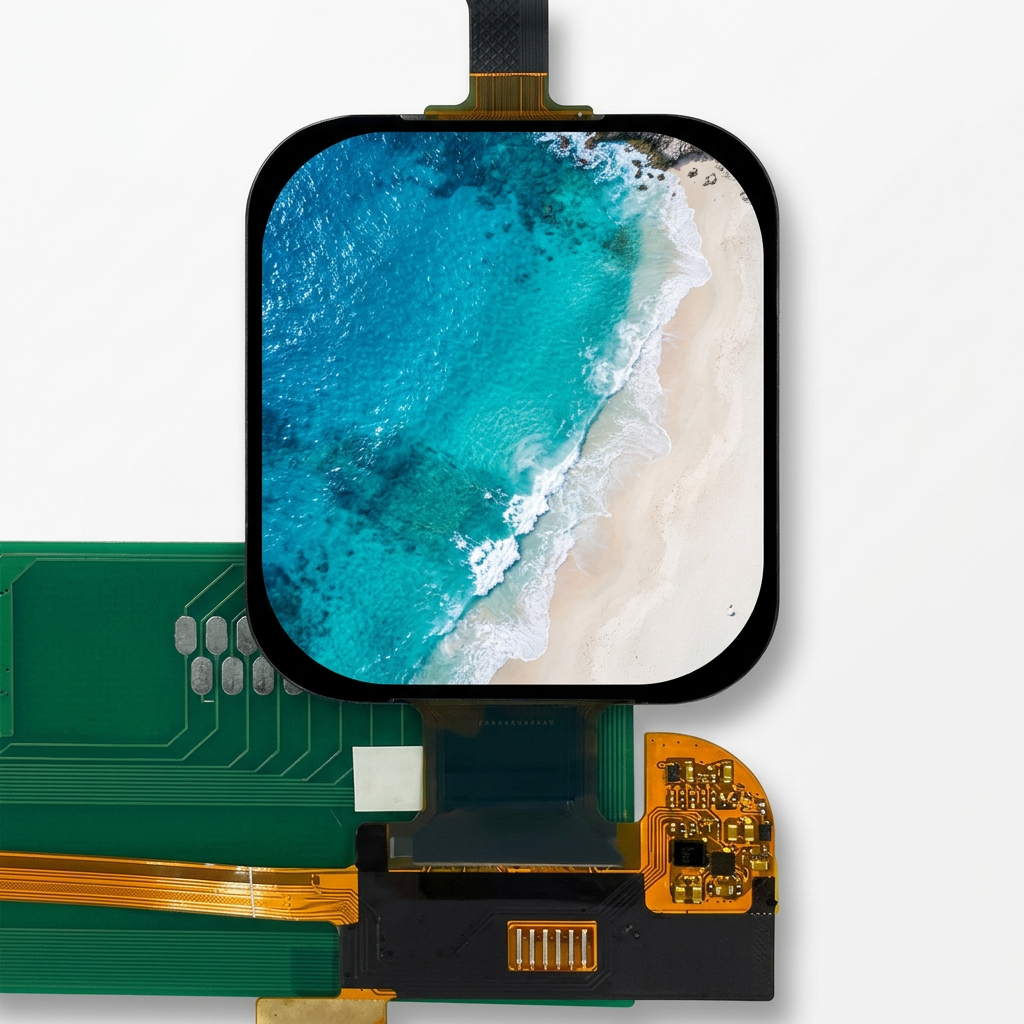

1.952 Inch AMOLED Display Module 410×502 Touch Screen
Quick Product Summary
The 1.952 Inch AMOLED Display Module from Brownopto is a high-resolution AMOLED display module with integrated touch structure, MIPI DSI interface, strong brightness performance, and a rounded-rectangle active area, making it suitable for premium wearable devices, smart terminals, and compact advanced display applications.
- Product type: 1.952 inch AMOLED display module for smart wearable and compact intelligent device applications
- Core specifications: 410 × 502 resolution, AMOLED panel, MIPI DSI interface, CO5300 driver IC, CST9217 touch IC
- Display structure: rounded-rectangle AMOLED module with lens and touch integration
- Brightness reference: 700 nits typical brightness, 750 nits maximum brightness, and 1000 nits typical in boost mode
- Best for: smart wearable displays, premium compact UI products, and touch-enabled AMOLED device integration
- Main advantage: 1.952 inch AMOLED screen with 410 × 502 resolution, touch support, and MIPI DSI interface
- Recommended use: engineering evaluation, smart wearable product development, OEM / ODM display integration, and high-end embedded UI projects
- Selection note: suitable for projects requiring a touch AMOLED module with higher resolution and MIPI DSI connectivity

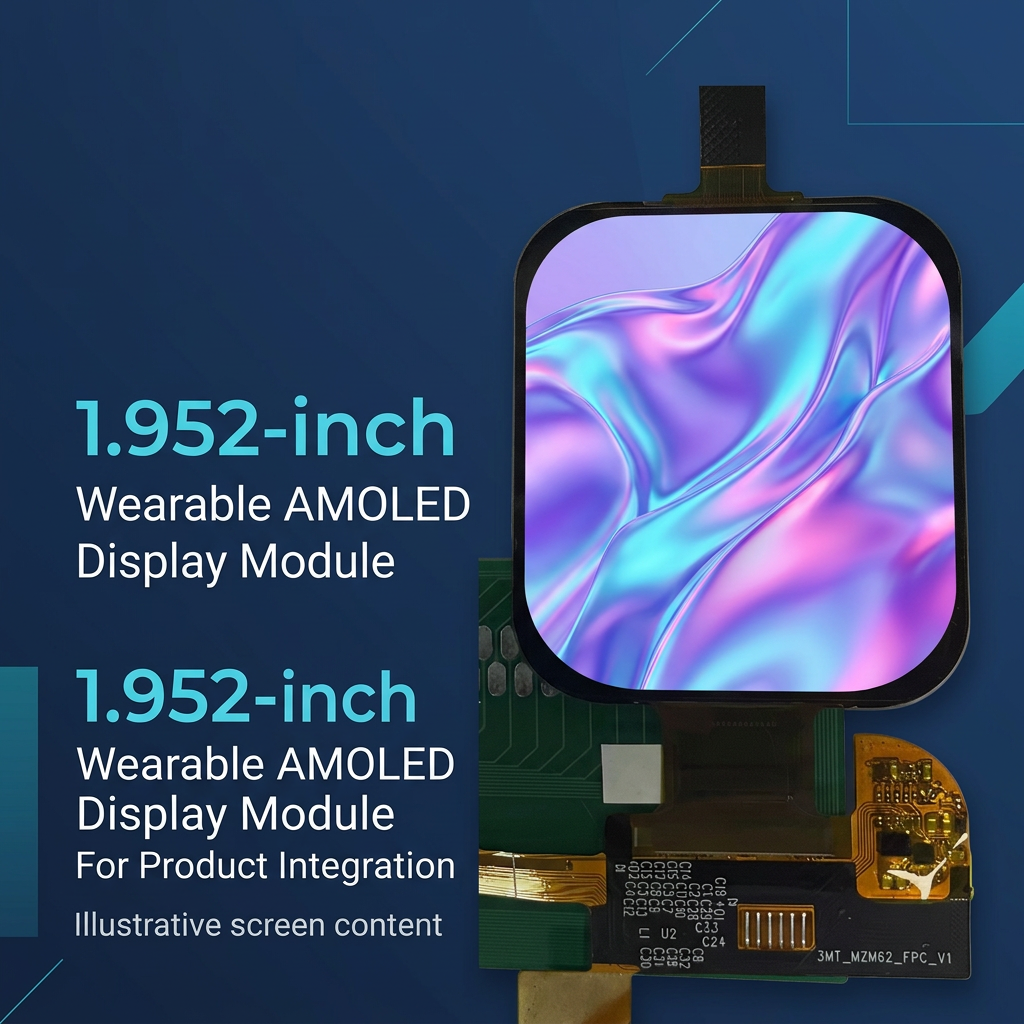

Product Overview
The 1.952 inch AMOLED display module from Brownopto is a high-spec compact display solution featuring 410 × 502 resolution, a rounded-rectangle active area, MIPI DSI interface, and integrated touch support. According to the datasheet, this module uses the CO5300 driver IC and the CST9217 touch IC.
The module offers an active area of 31.37 × 38.40 mm, an LTPS glass outline of 33.07 × 41.05 mm, a module outline of 35.35 × 42.86 mm, and a module thickness of 3.46 mm with lens. This makes it suitable for premium smart device products that require a larger compact AMOLED display with touch integration.
For customers looking for a 1.952 inch AMOLED display module with MIPI DSI, touch function, and strong brightness performance, this model is suitable for next-generation wearable and embedded smart display applications.
Key Features
- 1.952 Inch AMOLED Display: Suitable for compact premium products requiring a larger small-size AMOLED display area.
- 410 × 502 Resolution: Supports clearer UI rendering, sharp icon display, and refined graphical presentation for wearable and embedded applications.
- MIPI DSI Interface: Uses MDSI clock and data differential signals for display communication.
- Integrated Touch Support: The datasheet lists CST9217 touch IC and touch interface pins for touch-enabled product designs.
- Strong Brightness Performance: 700 nits typical brightness, 750 nits maximum brightness, and boost mode up to 1000 nits typical.
- Rounded-Rectangle Display Structure: Well suited for modern wearable and compact device industrial design.
- CO5300 Driver IC: Listed in the electrical section for display driving control.
- Fast Response and Good Viewing Angle: 2 ms typical response time and 85° viewing angle.
Who This Product Is Best For
Technical Specifications
| Product Name | 1.952 Inch AMOLED Display Module |
|---|---|
| Brand | Brownopto |
| Model Reference | AMOLED1.952 |
| Display Mode | AMOLED |
| Display Size | 1.952 Inch |
| Resolution | 410 × 502 |
| LTPS Glass Outline | 33.07 × 41.05 mm |
| Module Outline | 35.35 × 42.86 mm |
| Active Area | 31.37 × 38.40 mm |
| Pixel Pitch | 76.5 × 76.5 μm |
| Module Thickness | 3.46 mm (with lens) |
| Driver IC | CO5300 |
| Touch IC | CST9217 |
| Interface Type | MIPI DSI |
| Display Interface Pins | MDSI_CLKP, MDSI_CLKN, MDSI_D0P, MDSI_D0N, MDSI_D1P, MDSI_D1N |
| Touch Interface Pins | TP_VDD, TP_RST, TP_SCL, TP_SDA, TP_INT |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Brightness | 650 / 700 / 750 cd/m² (Min / Typ / Max, full white) |
| Boost Brightness | 900 / 1000 cd/m² (Without CG) |
| Brightness Uniformity | 85% |
| Contrast Ratio | 10000 |
| Response Time | 2 ms typ, 3 ms max |
| Viewing Angle | 85° |
| Gamma | 1.9 / 2.2 / 2.5 |
| Flicker | -30 dB |
| Crosstalk | 1.1% |
| Color Shift | 3.5 min, 6 max JNCD at θL = 30° |
| Color Gamut | NTSC 97% min, 108% max |
| OLED Life Time | 200 hrs at 600 nits, 25°C, white color pattern; 1000 nits listed as TBD |
| AMOLED Positive Power ELVDD | 3.25 / 3.3 / 3.35 V |
| AMOLED Negative Power ELVSS | -3.35 / -3.3 / -3.25 V |
| Panel GEOA Power VDD | 5.8 / 6 / 6.2 V |
| Panel GEOA Power VEE | -6.2 / -6 / -5.8 V |
| Panel Reference Power VINT | -3 V typ |
| Vdata Voltage VGMP | 4.4 V typ |
| Vdata Voltage VGSP | 1.2 V typ in normal mode, 0.8 V typ in HBM mode |
| Digital Power Supply VDDIO | 1.65 / 1.8 / 1.95 V |
| Analog Power Supply VCI | 2.65 / 2.8 / 2.95 V |
| Normal Mode | 60 Hz, 25°C, 600 nits, Command Mode |
| HBM Mode | 60 Hz, 25°C, 1000 nits, Command Mode |
| Idle Mode | 15 Hz, 25°C, 50 nits |
| Deep Standby Mode | IVCI max 3 uA, IVDDIO max 3 uA |
Note: Before final project integration, please confirm display interface compatibility, touch communication design, power architecture, and actual mechanical fit with the target product structure.

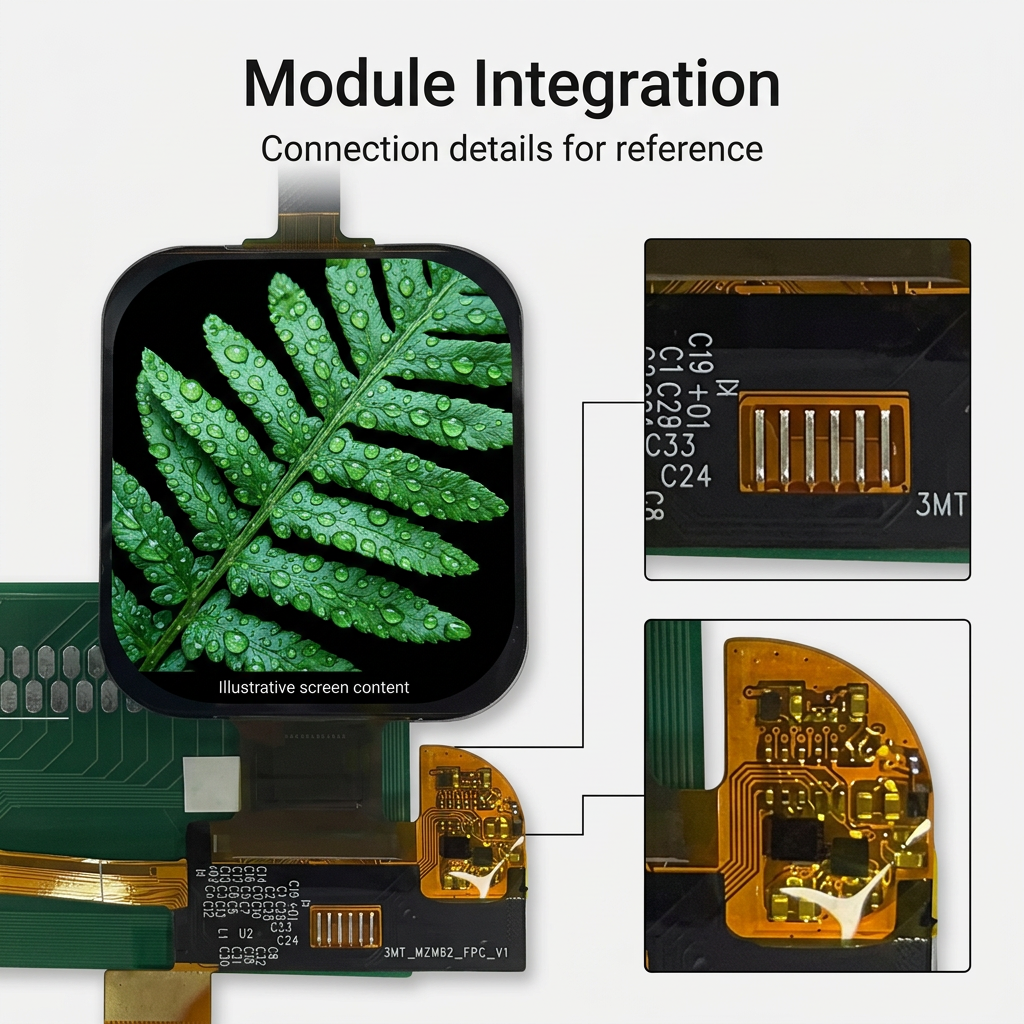

Interface and Integration Notes
This 1.952 inch AMOLED display module uses a MIPI DSI interface and includes a dedicated touch section. Based on the interface description, the display side uses differential MDSI clock and data lines, while the touch side uses an I2C-based touch communication structure.
- Display clock: MDSI_CLKP and MDSI_CLKN are used for DSI differential clock signaling.
- Display data: MDSI_D0P / MDSI_D0N and MDSI_D1P / MDSI_D1N are used for DSI differential data signaling.
- Display reset: RST is used for display initialization.
- Frame synchronization output: FMAPK is listed as tearing effect output synchronized by software command.
- Touch power and control: TP_VDD and TP_RST are provided for touch IC power and reset.
- Touch communication: TP_SCL and TP_SDA are used for touch I2C communication, with TP_INT for touch state interrupt.

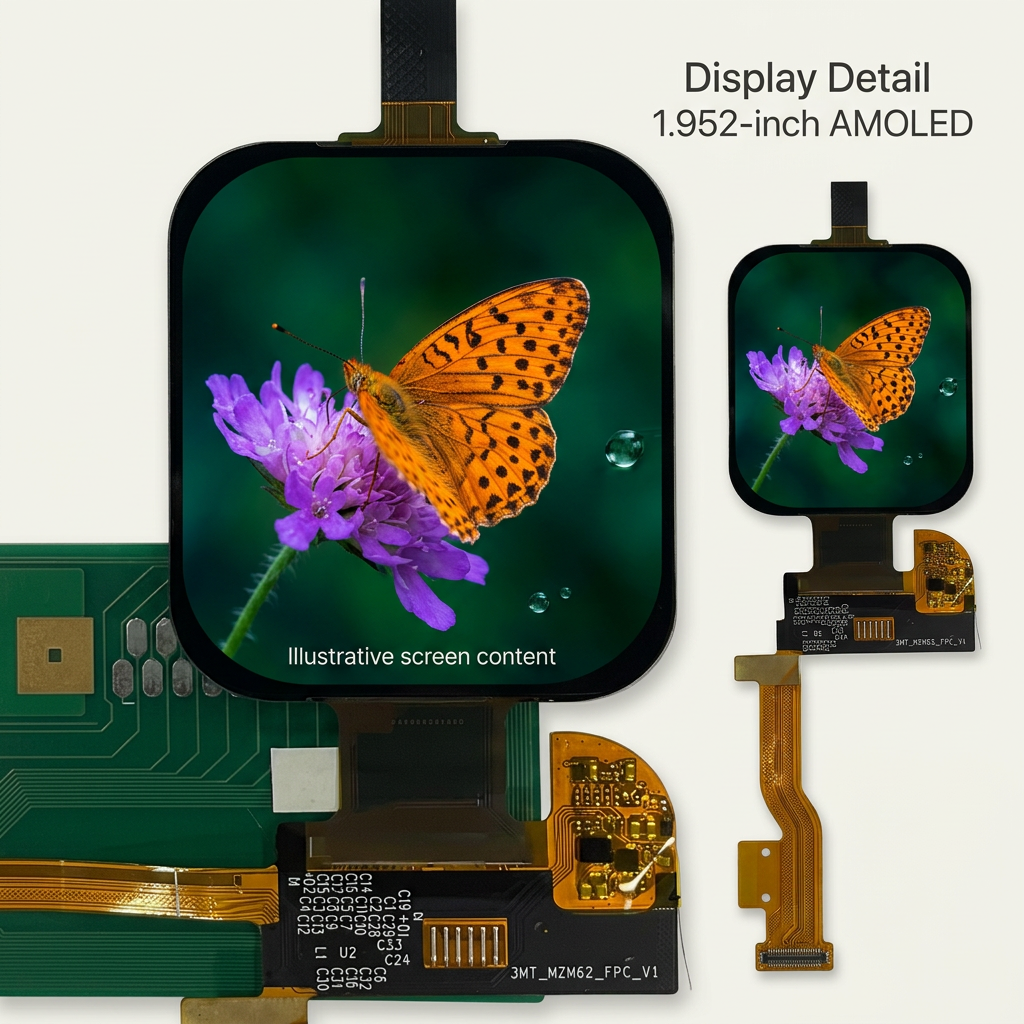

Display and Optical Performance Notes
This 410 × 502 AMOLED display module provides higher visual performance than smaller basic modules and is suitable for applications that require improved detail, touch interaction, and stronger outdoor visibility support.
- Full white brightness: 650 / 700 / 750 cd/m²
- Boost brightness: 900 / 1000 cd/m² without CG
- Brightness uniformity: 85%
- Contrast ratio: 10000
- Response time: 2 ms typ, 3 ms max
- Viewing angle: 85°
- Color gamut: NTSC 97% min, 108% max
- Flicker: -30 dB
- Crosstalk: 1.1%
Electrical and Power Reference
The specification provides normal mode, HBM mode, idle mode, and deep standby data for system power planning. This helps customers evaluate display behavior in different use conditions.
- AMOLED positive power ELVDD: 3.25 / 3.3 / 3.35 V
- AMOLED negative power ELVSS: -3.35 / -3.3 / -3.25 V
- Panel GEOA power VDD: 5.8 / 6 / 6.2 V
- Panel GEOA power VEE: -6.2 / -6 / -5.8 V
- Panel reference power VINT: -3 V typ
- Vdata voltage VGMP: 4.4 V typ
- Vdata voltage VGSP: 1.2 V typ in normal mode and 0.8 V typ in HBM mode
- Digital power supply VDDIO: 1.65 / 1.8 / 1.95 V
- Analog power supply VCI: 2.65 / 2.8 / 2.95 V
- Normal mode current: IELVDD / ELVSS 39.47 mA typ, 45.39 mA max
- HBM mode current: IELVDD / ELVSS 69.43 mA typ, 79.84 mA max
- Idle mode IVDDIO: 0.8 mA typ, 1 mA max
- Deep standby: IVCI max 3 uA and IVDDIO max 3 uA
Product Selection Notes
This model is suitable for customers who need a 1.952 inch AMOLED display module with touch support, higher resolution, and MIPI DSI communication for premium smart display integration.
Compared with lower-resolution or non-touch modules, this version is more suitable for premium wearable UI, touch interaction, and higher-detail graphic display.
- Choose this model when your project needs a larger compact AMOLED display with integrated touch support.
- Confirm MIPI DSI compatibility with your mainboard and system processor before final selection.
- Review touch integration design because this module includes a dedicated touch IC and touch communication pins.
- Check thickness allowance carefully, since the module thickness with lens is 3.46 mm.
- Confirm brightness mode strategy if your product needs normal mode and boost / HBM mode display behavior.
- Use lifetime wording cautiously because the datasheet lists OLED life time as 200 hrs at 600 nits under the specified test condition.

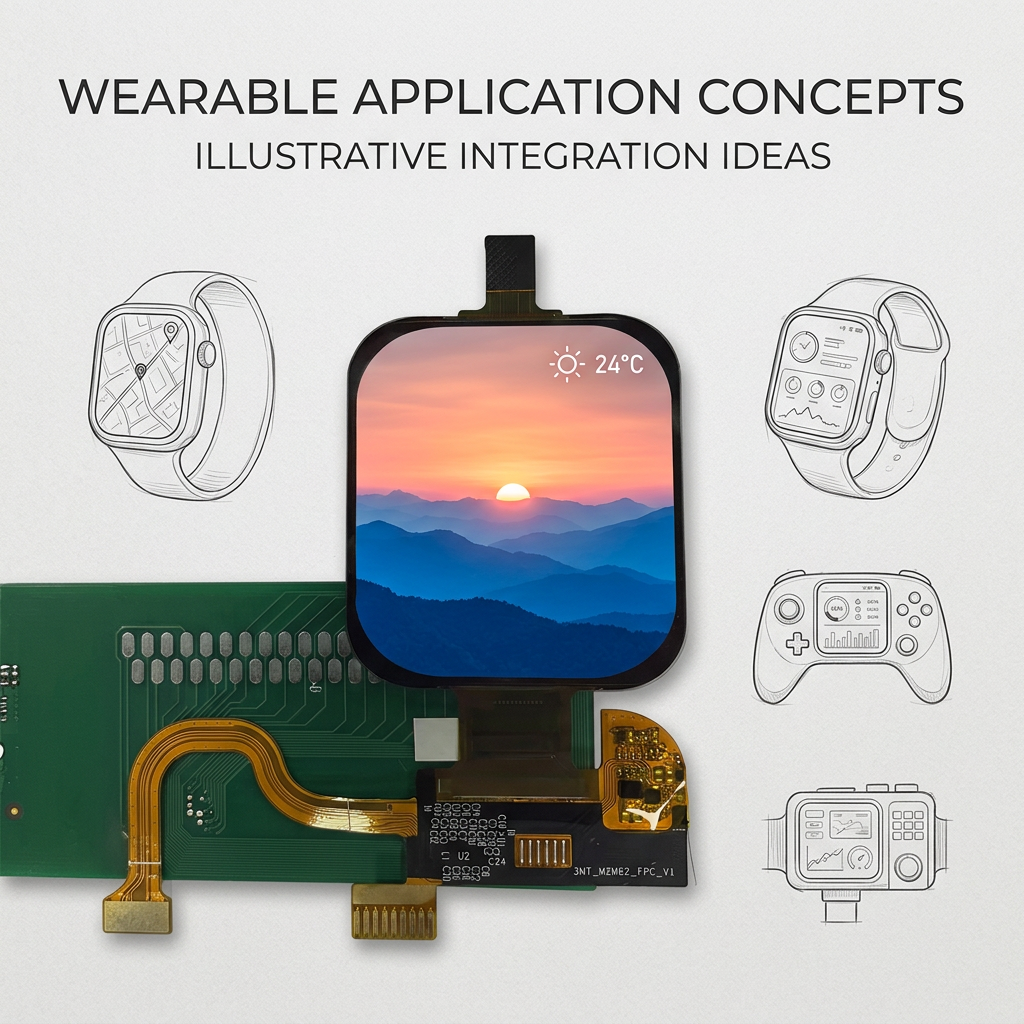

Application Scenarios
This 1.952 inch AMOLED display module is suitable for compact premium smart devices and touch-enabled high-clarity embedded display products.
Reliability and Handling Reference
According to the datasheet, this AMOLED module includes environmental, electrical, and mechanical reliability references for project validation, handling, transport, and storage review.
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +80°C
- High temperature operation: 70°C / 240 hrs
- Low temperature operation: -20°C / 240 hrs
- High temperature storage: 80°C / 240 hrs
- Low temperature storage: -40°C / 240 hrs
- High temperature humidity operation: 60°C / 93% RH / 240 hrs
- Thermal shock: -40°C to 85°C, dwell time 0.5 hr, 100 cycles
- Air discharge: ±4 / ±6 / ±8kV, 150pF / 330Ω, module level without CG
- Contact discharge: ±1 / ±2kV, 150pF / 330Ω, module level without CG
- Packing vibration-proof test: 2g, f = 10 → 55 → 10Hz, each X / Y / Z direction for 30 min
- Packing drop test: 60 cm height, 6 faces, 3 edges, and 1 corner
- Storage recommendation: 0°C to 40°C, relative humidity ≤ 80% for long-term storage
- Handling note: Avoid excessive pressure, unsuitable solvents, glass impact, and static electricity exposure.
Packaging and Delivery
Each AMOLED display module is packed using tray, vacuum bag, and carton protection according to the packing specification page, which helps reduce transport risk and improves handling protection during shipment.
- Selling Units: Sample support and bulk order supply available
- Customization Support: Project discussion, interface confirmation, and integration support available
- Shipping: Worldwide shipping supported according to destination and order arrangement
- Packing reference: Tray loading, vacuum package arrangement, and carton packing are shown in the packing section
Frequently Asked Questions
1. What is this 1.952 inch AMOLED display module mainly used for?
This module is suitable for smart wearable devices, touch-enabled AMOLED products, premium compact electronics, and embedded smart UI systems.
2. What resolution does this AMOLED display support?
It supports 410 × 502 resolution, which is suitable for higher-detail graphics, clearer text, and refined compact interface layouts.
3. What interface does this 1.952-inch AMOLED module use?
This model uses a MIPI DSI interface with differential clock and data signals, including MDSI_CLKP / CLKN and MDSI_D0 / D1 differential pairs.
4. Does this module support touch function?
Yes. The datasheet lists a touch IC CST9217 and touch-related pins including TP_VDD, TP_RST, TP_SCL, TP_SDA, and TP_INT.
5. What brightness does this 1.952 inch AMOLED display provide?
It provides 700 cd/m² typical brightness and 750 cd/m² maximum brightness under full white condition, and 1000 cd/m² typical brightness in boost mode without CG.
6. What are the module dimensions?
The LTPS glass outline is 33.07 × 41.05 mm, the module outline is 35.35 × 42.86 mm, the active area is 31.37 × 38.40 mm, and the thickness with lens is 3.46 mm.
7. Which driver IC and touch IC are used in this module?
The datasheet lists CO5300 as the driver IC and CST9217 as the touch IC.
8. What are the operating and storage temperature ranges?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -40°C to +80°C.
9. Is this display suitable for premium smart wearable products?
Yes. With its 410 × 502 resolution, MIPI DSI interface, touch support, and strong brightness performance, it is suitable for premium wearable and compact smart device applications.
10. What should be confirmed before selecting this AMOLED display module?
Before final selection, it is recommended to confirm MIPI DSI compatibility, touch integration design, mechanical space allowance, brightness mode strategy, power rail planning, and system firmware adaptation.
Why Choose This 1.952 Inch AMOLED Display Module
The 1.952 Inch AMOLED Display Module from Brownopto combines 410 × 502 resolution, MIPI DSI interface, integrated touch support, 700 nits typical brightness, and boost mode up to 1000 nits in a compact premium display solution.
For customers looking for a dependable 1.952 inch AMOLED display, a 410 × 502 touch AMOLED module, or a MIPI DSI AMOLED display for smart wearable products, this model is suitable for engineering evaluation, OEM / ODM projects, and advanced embedded UI development.
