1.6 Inch AMOLED Display Module 320x360 MIPI Touch Screen
Quick Product Summary
The 1.6 Inch AMOLED Display Module from Brownopto is a compact AMOLED display solution with touch support designed for smartwatches, wearable electronics, portable smart terminals, and other compact products that require vivid colors, strong contrast, high brightness, and a premium user interface.
- Product type: 1.6 inch AMOLED display module with touch
- Core specifications: 320 × 360 resolution, AMOLED panel, MIPI interface, integrated touch support
- Display structure: compact AMOLED module with lens, touch function, and slim profile for embedded device integration
- Brightness reference: 500 cd/m² typical full-white brightness, with boost brightness up to 1000 cd/m² in the specification
- Best for: smartwatches, wearable products, compact healthcare devices, and advanced portable electronics
- Main advantage: high-resolution small AMOLED module with touch, strong contrast, good color performance, and MIPI integration capability
- Recommended use: wearable product development, UI evaluation, embedded display integration, and OEM / ODM project applications
- Selection note: ideal for projects requiring a 1.6 inch AMOLED touch display with 320 × 360 resolution and compact mechanical dimensions
Product Overview
The 1.6 inch AMOLED display module from Brownopto is developed for compact smart devices that need a high-quality small display with touch interaction. This AMOLED display module with touch is especially suitable for wearable electronics and smart terminal interfaces where high contrast, bright full-color display, responsive touch control, and thin structure are important.
This 320 × 360 AMOLED module features an active area of 27.02 × 30.4 mm, an LTPS glass outline of 33.78 × 41.29 mm, and a module thickness of 2.02 mm with lens. Based on the provided specification, it uses the ST7801N driver IC, integrates touch through CST916E, and supports a MIPI interface for display communication in embedded smart devices.
For customers looking for a small AMOLED display module for smartwatch applications, this model provides a balanced combination of compact size, 320 × 360 resolution, AMOLED visual quality, touch integration, and practical system integration value.
Key Features
- 1.6 Inch AMOLED Display Structure: Designed for smart wearable and compact electronic products requiring a premium small-size display solution.
- 320 × 360 Resolution: Supports clear interface rendering for icons, data display, menu systems, graphics, and smartwatch UI layouts.
- Integrated Touch Support: Combines AMOLED display performance with touch interaction capability for more advanced and convenient product design.
- MIPI Interface: Suitable for embedded display communication in modern compact smart devices and wearable electronics.
- ST7801N Driver IC: Supports AMOLED driving and display control according to the specification reference.
- CST916E Touch IC: Supports touch integration for compact interactive device applications.
- High Brightness Capability: Typical full-white brightness is 500 cd/m², with boost brightness up to 1000 cd/m² according to the specification.
- AMOLED Visual Performance: Offers strong contrast, good color performance, wide viewing capability, and a premium visual effect for small devices.
Who This Product Is Best For
Technical Specifications
| Product Name | 1.6 Inch AMOLED Display Module |
|---|---|
| Brand | Brownopto |
| Model Reference | AMOLED1.6 |
| Display Mode | AMOLED |
| Display Size | 1.60 Inch |
| Resolution | 320 × 360 |
| Active Area | 27.02 × 30.4 mm |
| LTPS Glass Outline | 33.78 × 41.29 mm |
| Pixel Pitch | 0.08445 mm |
| Module Thickness | 2.02 mm (with lens) |
| Driver IC | ST7801N |
| Touch IC | CST916E |
| Interface | MIPI |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Brightness | 450 / 500 / 550 cd/m² (Min / Typ / Max, Full White) |
| Boost Brightness | 900 / 1000 cd/m² (Without CG, specification reference) |
| Contrast Ratio | 10000 |
| Viewing Angle | 85° |
| Color Gamut | NTSC 97% / 108% (specification reference) |
| Response Time | 2 ms typ, 3 ms max |
Note: Before final selection, it is recommended to confirm MIPI platform compatibility, touch communication logic, power sequencing, mechanical fit, connector matching, software initialization support, and actual brightness requirements according to the target device design.

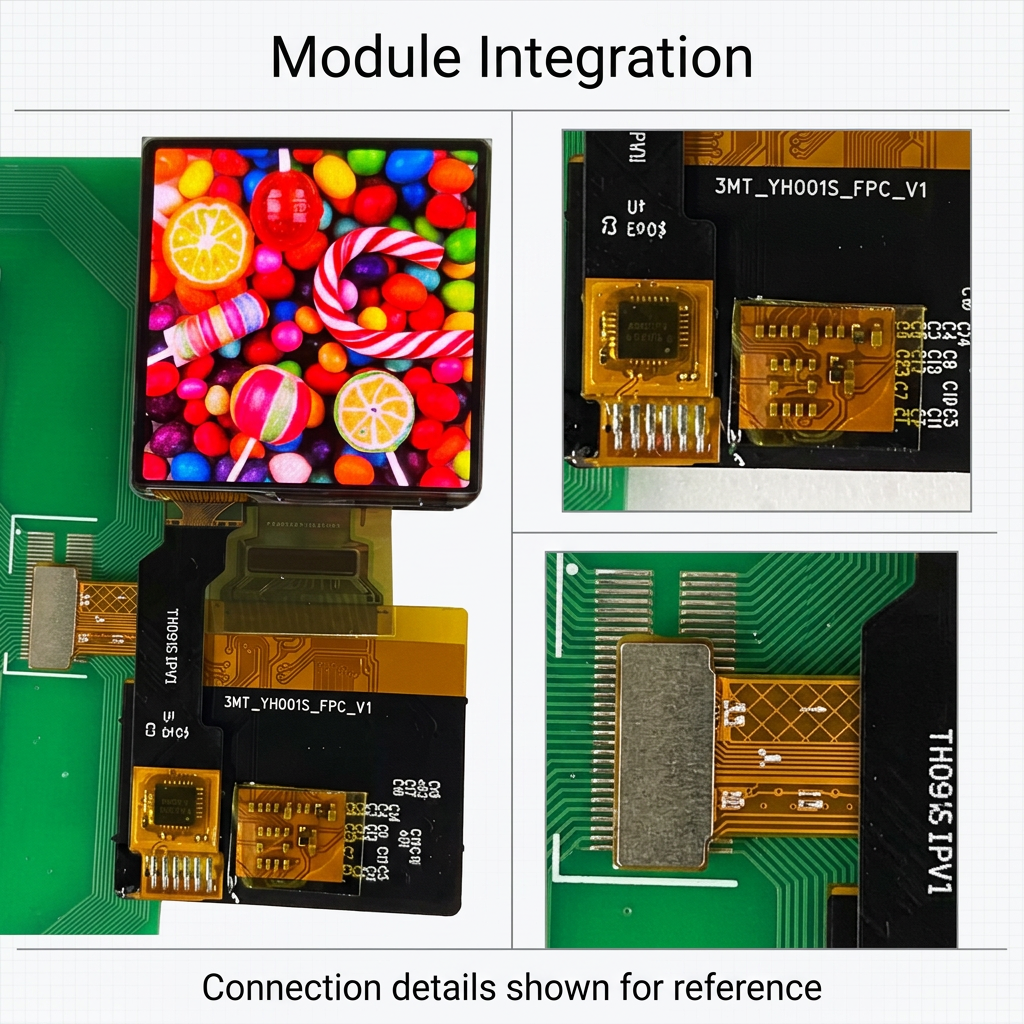

Interface and Integration Notes
This 1.6 inch AMOLED module with touch supports a 30-pin interface structure according to the specification. The display side uses MIPI differential signals for communication, while the touch side includes I2C touch signals for touch coordination.
- Display communication: MDSI_D0 differential data signals and MDSI_CLK differential clock signals are included for display-side communication.
- Synchronization support: TE output is provided to synchronize MCU frame writing according to the specification.
- Reset and power control: RST, VCI_EN, VDDID, and VBAT related pins are included for initialization and power management support.
- Touch communication: TP_SDA, TP_SCL, TP_INT, and TP_RST are included for touch integration.
- Integration recommendation: Confirm MIPI host compatibility, power-on and power-off timing, touch communication design, reset timing, and FPC connector mapping before hardware and software finalization.

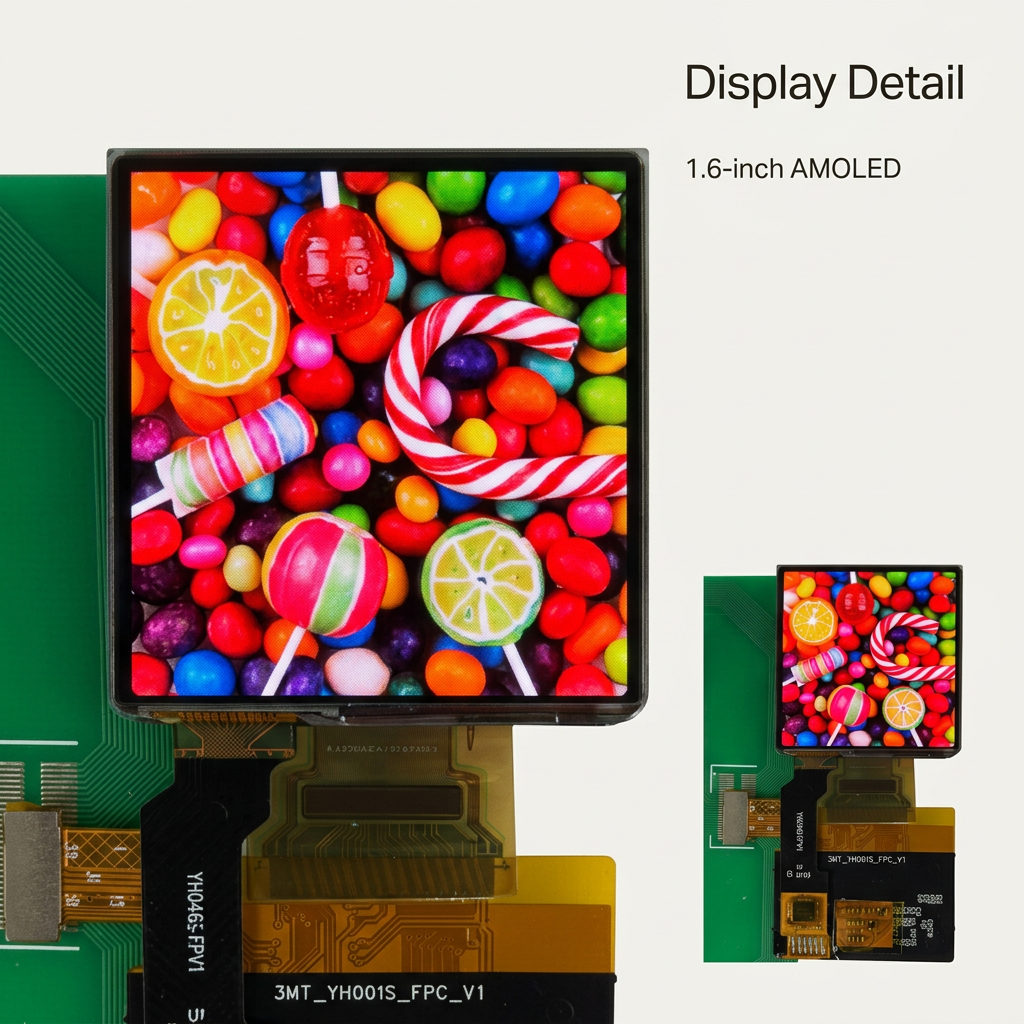

Display and Optical Performance Notes
This 320 × 360 AMOLED display module is intended for applications that need a more refined small-screen visual experience. According to the specification, the module offers 500 nits typical brightness, 10000 contrast ratio, 85° viewing angle, and good color gamut performance for wearable and compact product interfaces.
- Typical full-white brightness: 500 cd/m²
- Boost brightness reference: 1000 cd/m²
- Contrast ratio: 10000
- Brightness uniformity: 85%
- Response time: 2 ms typical
- Color gamut: NTSC up to 108%
- Color shift: 3.5 typ / 6 max JNCD at θL=30°
Product Selection Notes
This model is a strong choice for product teams that need a small AMOLED touch display for smartwatch or wearable product development. It is especially suitable for projects where compact mechanical structure, rich color display, and touch interaction are required together.
For engineering evaluation, this module is best understood as a 1.6 inch AMOLED display module with MIPI communication and integrated touch support, rather than a low-end general-purpose display. Its main value is premium display effect and embedded integration for advanced compact electronics.
- Choose this model when your project requires a compact AMOLED touch display with high resolution and premium UI effect.
- Confirm MIPI controller compatibility according to your SoC or host platform before final selection.
- Check touch integration requirements if your product requires interactive operation, gesture input, or menu navigation.
- Verify mechanical fit according to active area, outline size, lens thickness, and assembly structure.
- Confirm power strategy according to normal brightness mode, boost mode, and actual system power consumption targets.

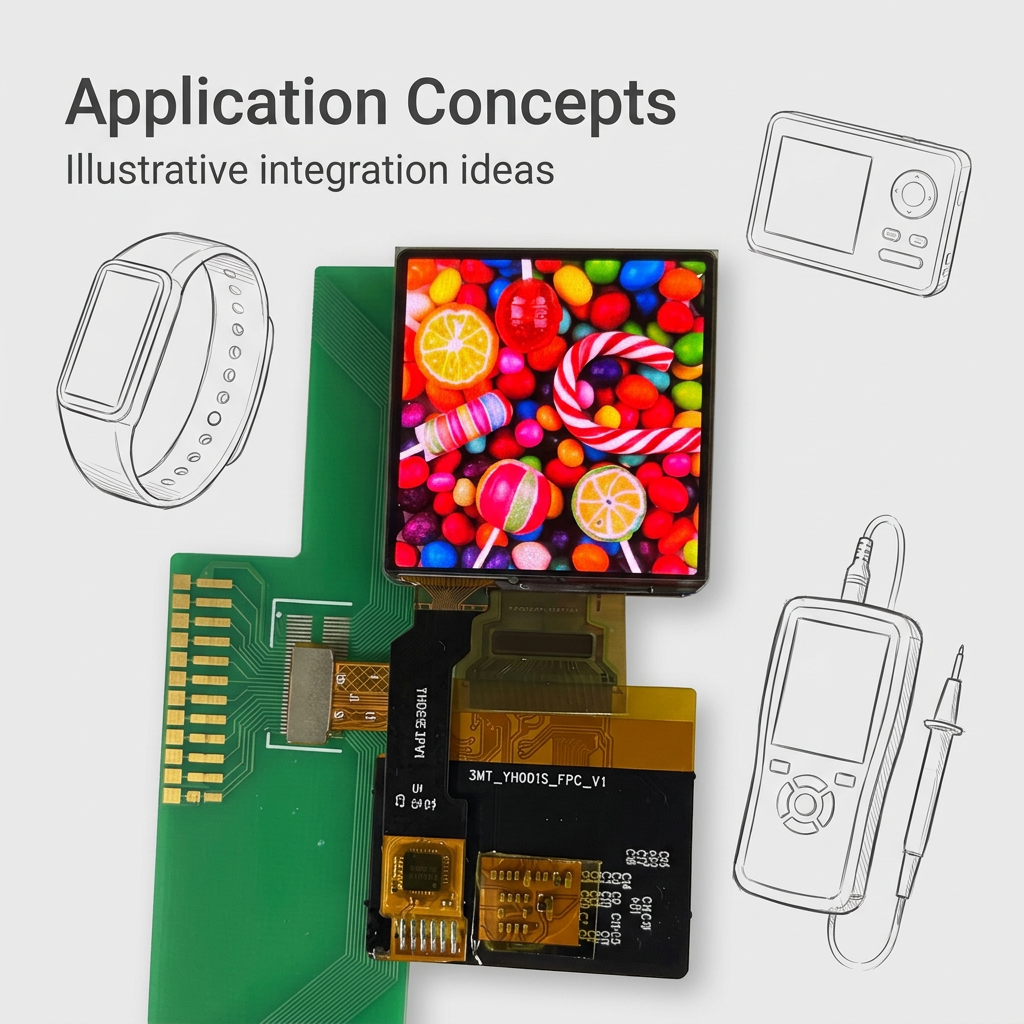

Application Scenarios
This 1.6 inch AMOLED display module with touch is suitable for compact smart electronics that require high-resolution display quality, advanced interface effect, and practical embedded integration.
Reliability and Handling Reference
According to the specification reference, this AMOLED module includes environmental, electrical, and mechanical reliability items for engineering evaluation and application reference.
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +80°C
- High temperature operation: 70°C / 240 hrs
- Low temperature operation: -20°C / 240 hrs
- High temperature storage: 80°C / 240 hrs
- Low temperature storage: -40°C / 240 hrs
- High temperature humidity operation: 60°C / 93%RH / 240 hrs
- Thermal shock: -40°C to 85°C, 100 cycles
- Handling note: The polarizer is soft and should be handled carefully to avoid scratches, pressure damage, and electrostatic risk.
- Storage note: Long-term storage should avoid direct sunlight, acid, alkali, harmful gas, damp conditions, and unsuitable humidity environments.
- Transportation note: Avoid falling, violent shock, excessive pressure, water, damp, and sunshine during transportation.
Packaging and Delivery
Each AMOLED display module is packed carefully to help protect the display area, touch structure, FPC connection area, and module assembly during sample shipment, storage, and transportation.
- Selling Units: Sample support and bulk order supply are available
- Customization Support: Touch integration discussion, interface matching, and project-based application support can be provided according to requirements
- Shipping: Global shipping supported, with final freight based on quantity, package method, and destination
Frequently Asked Questions
1. What is this 1.6 inch AMOLED display module used for?
This module is mainly used for smartwatches, wearable electronics, portable healthcare devices, and other compact smart products that require a small high-quality AMOLED screen with touch support.
2. What resolution does this AMOLED display support?
It supports a 320 × 360 resolution, making it suitable for smartwatch interfaces, icons, graphics, data display, and compact UI layouts.
3. Does this AMOLED module include touch support?
Yes. Based on the specification, this module supports touch integration and uses the CST916E touch IC.
4. What interface does this AMOLED display module use?
This module uses a MIPI interface for display communication, while the touch side includes I2C touch signals according to the specification.
5. Which driver IC and touch IC are used in this display module?
The display uses the ST7801N driver IC, and the touch function uses CST916E.
6. What are the active area and outline dimensions?
The active area is 27.02 × 30.4 mm, and the LTPS glass outline is 33.78 × 41.29 mm.
7. What is the thickness of this AMOLED touch display module?
The module thickness is 2.02 mm with lens, making it suitable for compact smart device structures.
8. What is the brightness of this 1.6 inch AMOLED display?
The specification shows 500 cd/m² typical brightness under full-white conditions, and boost brightness up to 1000 cd/m² in the optical section.
9. What is the operating temperature range?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -40°C to +80°C.
10. What should be confirmed before selecting this AMOLED display module?
Before final selection, it is recommended to confirm the MIPI host compatibility, touch communication logic, power timing, mechanical dimensions, software initialization support, and actual application brightness requirements.
Why Choose This 1.6 Inch AMOLED Display Module
The 1.6 Inch AMOLED Display Module from Brownopto combines 320 × 360 resolution, AMOLED visual quality, ST7801N display driving, CST916E touch support, and MIPI embedded communication in a compact module structure suitable for advanced wearable and portable electronics.
For customers looking for a dependable 1.6 inch AMOLED touch display, a 320 × 360 AMOLED module for smartwatch applications, or a small MIPI AMOLED display module for embedded smart devices, this model is a strong choice for engineering evaluation, product development, and OEM / ODM integration.
