1.47 Inch AMOLED Display Module 194×368 for Wearable Devices
Quick Product Summary

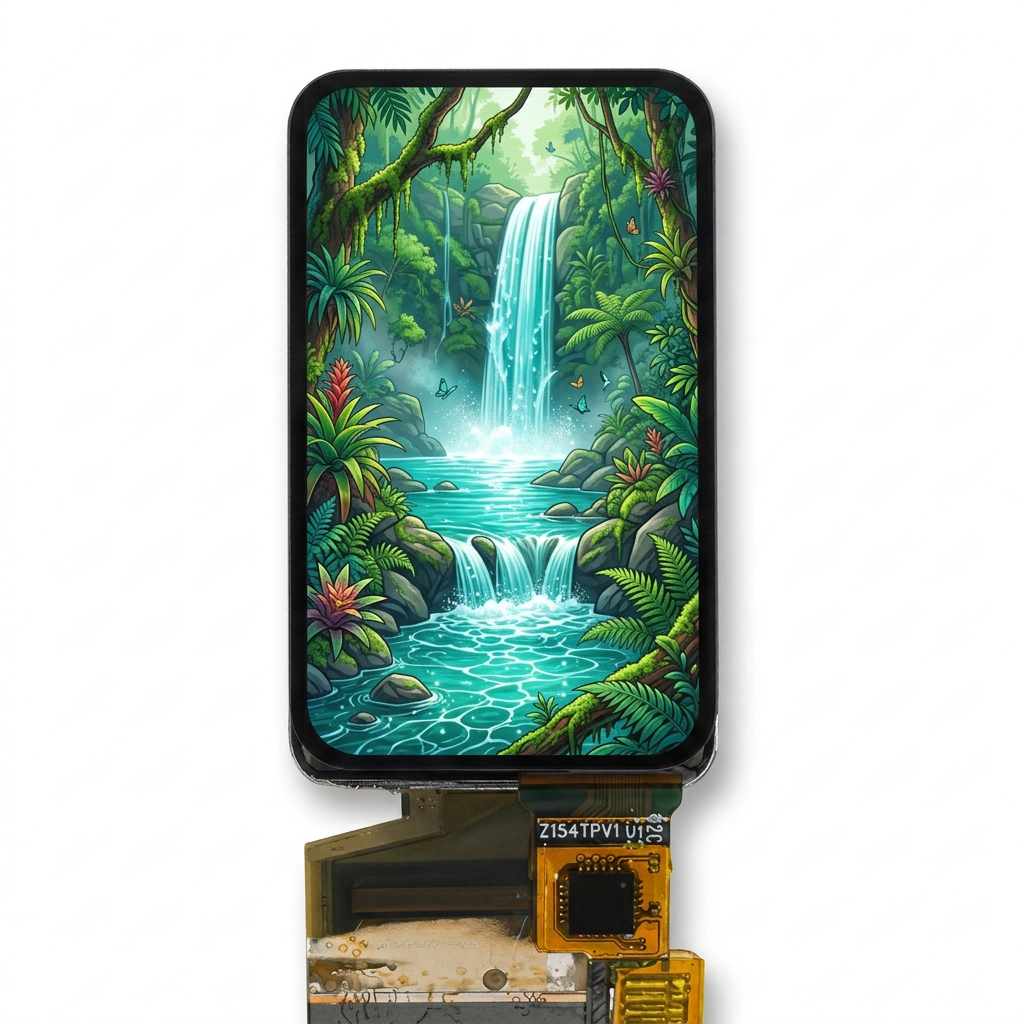

The 1.47 Inch AMOLED Display Module from Brownopto is a compact high-brightness AMOLED display module developed for wearable electronics, smart control interfaces, and embedded display applications that require slim structure, rich color, and stable QSPI communication.
- Product type: 1.47 inch AMOLED display module for wearable devices and compact smart electronics

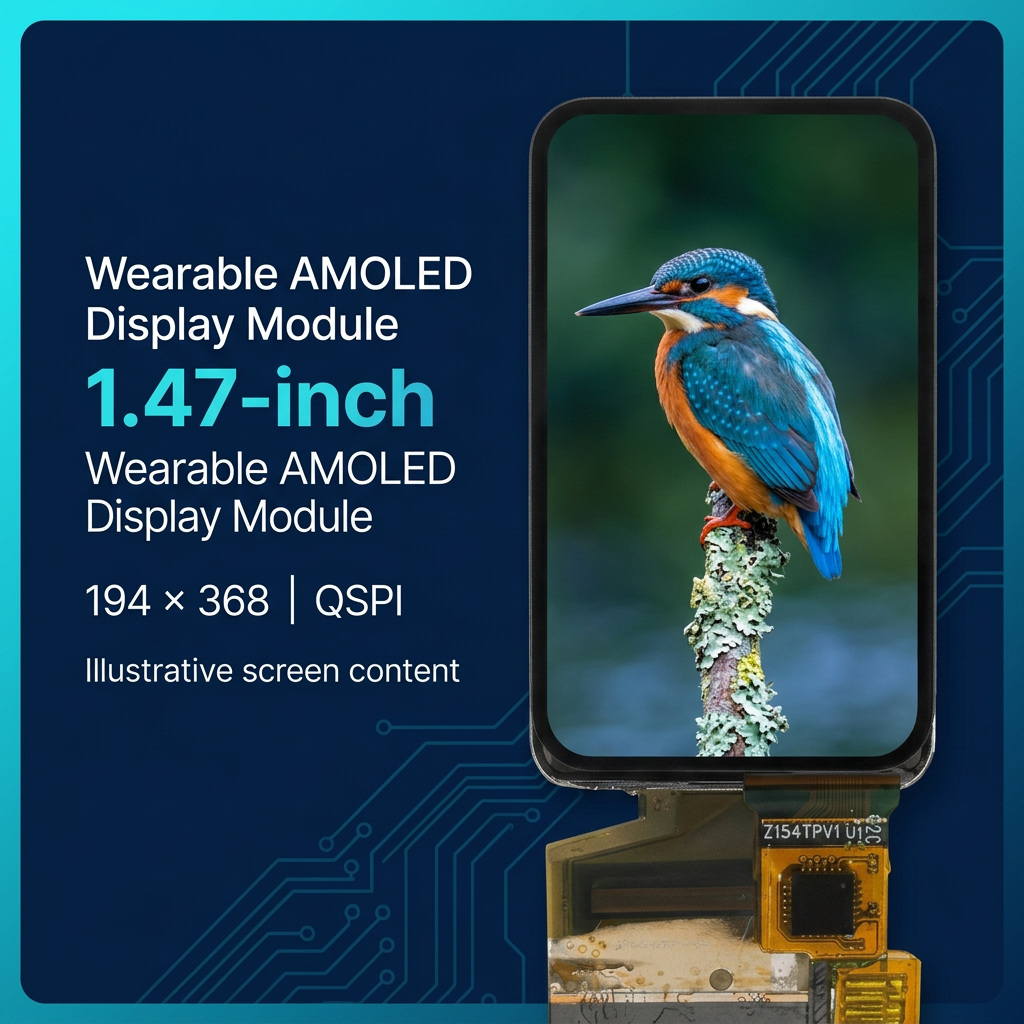

- Core specifications: 194 × 368 resolution, AMOLED panel, QSPI interface, SH8501 driver IC

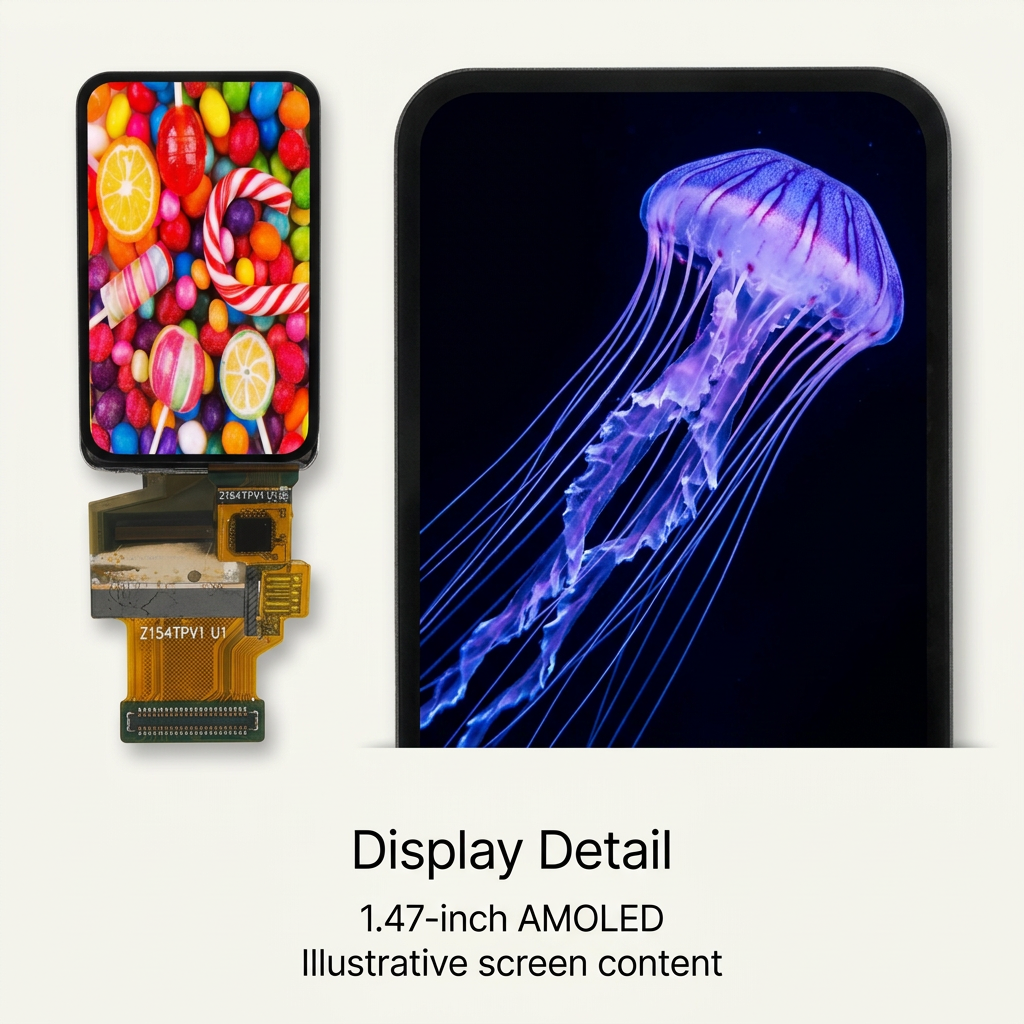

- Display structure: slim rectangular AMOLED module with compact active area and touch support reference
- Brightness reference: 800 cd/m² typical luminance and 850 cd/m² maximum in full white condition
- Best for: wearable displays, compact control panels, portable electronics, and embedded UI products
- Main advantage: 1.47 inch AMOLED screen with vivid color, fast response, and high brightness performance
- Recommended use: wearable product development, embedded interface design, engineering evaluation, and OEM / ODM integration
- Selection note: suitable for projects requiring a 1.47 inch AMOLED display with QSPI interface and slim module structure
Product Overview
The 1.47 inch AMOLED display module from Brownopto is designed for compact electronic products that require clear visual performance, slim structural design, and reliable interface integration. According to the specification, this model uses a 194 × 368 AMOLED panel with an active area of 17.46 × 33.12 mm and a compact module outline of 23.10 × 39.90 mm.
This 1.47 inch AMOLED module uses the SH8501 driver IC and lists CST820 as the touch IC reference in the specification. The interface table clearly shows QSPI-related signal definitions, making it suitable for compact display products that need practical electrical integration support.
For customers looking for a 1.47 inch AMOLED display module for wearable or compact embedded applications, this model offers a practical combination of slim size, good brightness, fast response time, and engineering-oriented electrical design.
Key Features
- 1.47 Inch AMOLED Display: Suitable for wearable devices and compact electronic products requiring vivid full-color visual output.
- 194 × 368 Resolution: Supports clear UI rendering for status display, menus, icons, notifications, and smart interface layouts.
- QSPI Interface: The interface description includes QSPI data lines, helping support compact host-side communication design.
- SH8501 Driver IC: Used as the display driver platform according to the attached specification.
- Touch IC Reference: CST820 is listed in the electrical section as the touch IC reference.
- High Brightness Performance: Standard brightness is 800 cd/m² typical and reaches 850 cd/m² maximum in full white condition.
- Fast Response Performance: Response time is 2 ms typical and 3 ms maximum according to the electro-optical table.

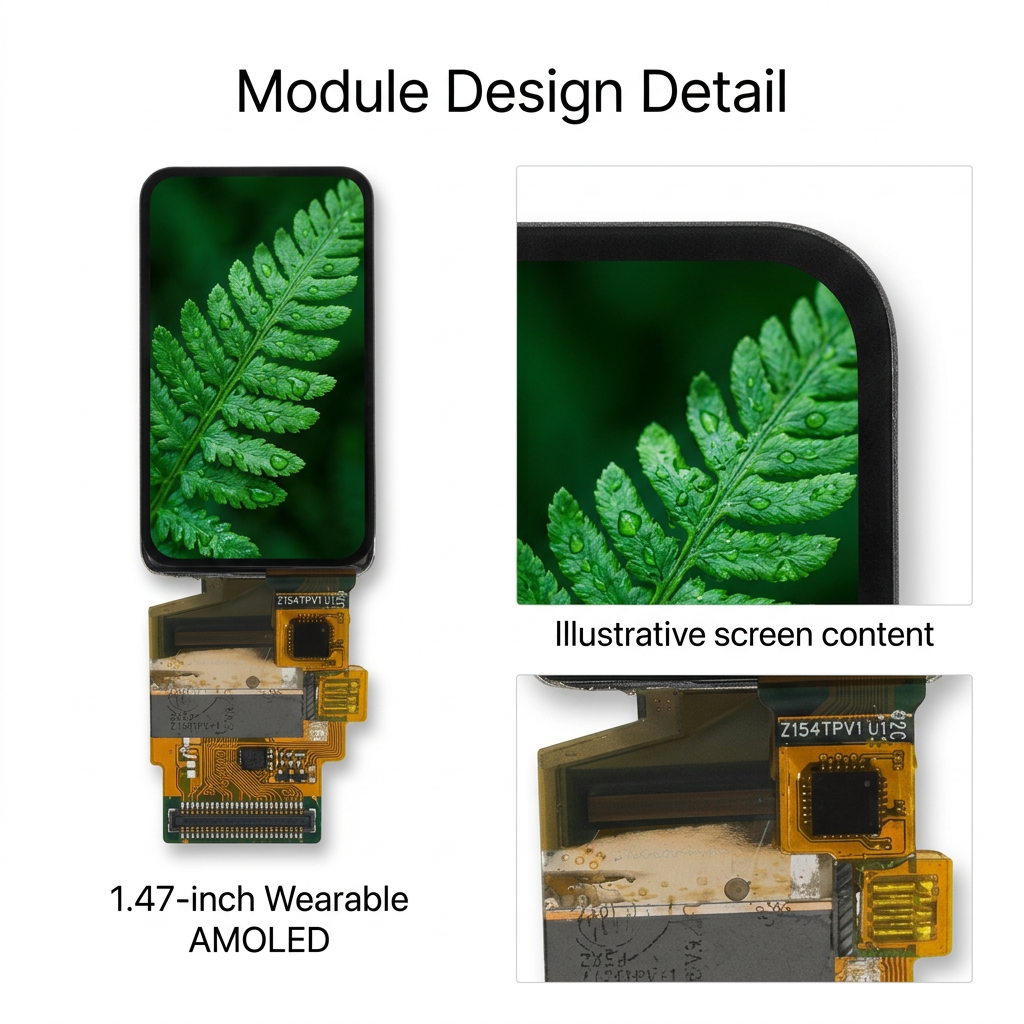

- Slim Module Structure: The module thickness with lens is 2.13 mm, suitable for compact product integration.
Who This Product Is Best For
Technical Specifications
| Product Name | 1.47 Inch AMOLED Display Module |
|---|---|
| Brand | Brownopto |
| Model Reference | AMOLED1.47 |
| Display Mode | AMOLED |
| Display Size | 1.47 Inch |
| Resolution | 194 × 368 |
| Module Outline | 23.10 × 39.90 mm |
| LTPS Glass Outline | 19.36 × 36.17 mm |
| Active Area | 17.46 × 33.12 mm |
| Module Thickness (with Lens) | 2.13 mm |
| Interface | QSPI |
| Driver IC | SH8501 |
| Touch IC | CST820 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Brightness | 750 / 800 / 850 cd/m² (Min / Typ / Max) |
| Boost Brightness | 900 / 1000 cd/m² (Min / Typ, Without CG) |
| Brightness Uniformity | 85% |
| Contrast Ratio | 10000 min |
| Response Time | 2 ms typ, 3 ms max |
| Color Gamut | NTSC 97% / 108% (Min / Typ) |
| Viewing Angle | 85° |
| Gamma | 1.9 / 2.2 / 2.5 (Min / Typ / Max) |
| Flicker | -30 dB |
| Crosstalk | 1.1% |
| Color Shift | 3.5 / 6 JNCD |
| Deep Standby Current | VCI max 10 uA, VDDIO max 10 uA |
| OLED Lifetime | 200 hrs at 600 nits white color pattern |
Note: Before final selection, it is recommended to confirm host-side interface compatibility, software initialization, touch communication, power sequencing, connector design, and actual mechanical fit in the target product.
Interface and Integration Notes
This 1.47 inch AMOLED display module shows a clear QSPI interface structure in the interface description table, including L_CS, L_SCLK, L_IO0, L_IO1, L_IO2, and L_IO3. This helps support compact display integration for embedded products and wearable devices.
- Main display interface reference: QSPI-related signals are clearly listed in the interface description.
- Reset control: L_RES is listed as the reset signal for proper device initialization.
- Tearing effect output: L_TE is included for frame synchronization reference.
- Touch interface support: TP_SDA and TP_SCL are listed for touch I2C communication, with TP_INT and TP_RST included.
- Power control note: VBAT, VDD, and VCI_EN are also listed, so full host-side power design and sequence confirmation is still recommended.
Display and Optical Performance Notes
This 194 × 368 AMOLED display module is suitable for compact display products that require good brightness, strong color performance, fast response, and wide viewing support. According to the electro-optical section, the module provides 800 cd/m² typical brightness and 850 cd/m² maximum brightness in full white condition.
- Brightness: 750 / 800 / 850 cd/m² (Min / Typ / Max)
- Boost brightness: 900 / 1000 cd/m² (Min / Typ, without CG)
- Brightness uniformity: 85%
- Contrast ratio: 10000 min
- Response time: 2 ms typ, 3 ms max
- Color gamut: NTSC 97% min, 108% typ
- Viewing angle: 85°
- Gamma: 2.2 typ
- Flicker: -30 dB
- Crosstalk: 1.1%
Electrical and Power Reference
According to the provided specification, this AMOLED module includes normal mode and deep standby mode for engineering reference and system power planning.
- Digital power supply VDDIO: 1.7 / 1.8 / 1.9 V
- Analog power supply VCI: 3.2 / 3.3 / 3.4 V
- AMOLED positive power ELVDD: 3.25 / 3.3 / 3.35 V
- AMOLED negative power ELVSS: -3.35 / -3.3 / -3.25 V
- Panel GEOA power VDD: 5.8 / 6.0 / 6.2 V
- Panel GEOA power VEE: -6.2 / -6.0 / -5.8 V
- Panel reference power VINT: -3 V typ
- Vdata voltage VGMP: 4.4 V typ
- Vdata voltage VGSP: 1.2 V typ in normal mode, 0.8 V typ in HBM mode
- Normal mode condition: 60 Hz, 25°C, 600 nits, command mode
- 100% pixel on current: IELVDD / ELVSS 39.47 mA typ, 45.39 mA max
- Normal mode VCI current: 5.8 mA typ, 6.5 mA max
- Normal mode VDDIO current: 5.5 mA typ, 5.8 mA max
- Deep standby current: IVCI max 10 uA, IVDDIO max 10 uA
Product Selection Notes
This model is a strong choice for product teams that need a 1.47 inch AMOLED display module for wearable or compact embedded applications. It is especially suitable for projects where slim size, good brightness, practical touch integration, and engineering-defined electrical characteristics are required together.
For engineering evaluation, this module is best understood as a compact rectangular high-brightness AMOLED module with SH8501 driver platform and QSPI interface support, rather than a generic low-end display. Its key value is compact form factor, practical interface structure, and optical performance for small smart devices.
- Choose this model when your project requires a 1.47 inch AMOLED display with 194 × 368 resolution.
- Confirm host-side interface compatibility before final hardware and software selection.
- Check power design carefully according to ELVDD, ELVSS, VCI, VDDIO, VDD, and VEE requirements.
- Verify mechanical fit according to active area, LTPS glass outline, and full module outline.
- Review touch integration if the product requires TP communication and touch state management.
- Evaluate brightness mode requirements if the project may use standard brightness and boost brightness conditions differently.
Application Scenarios

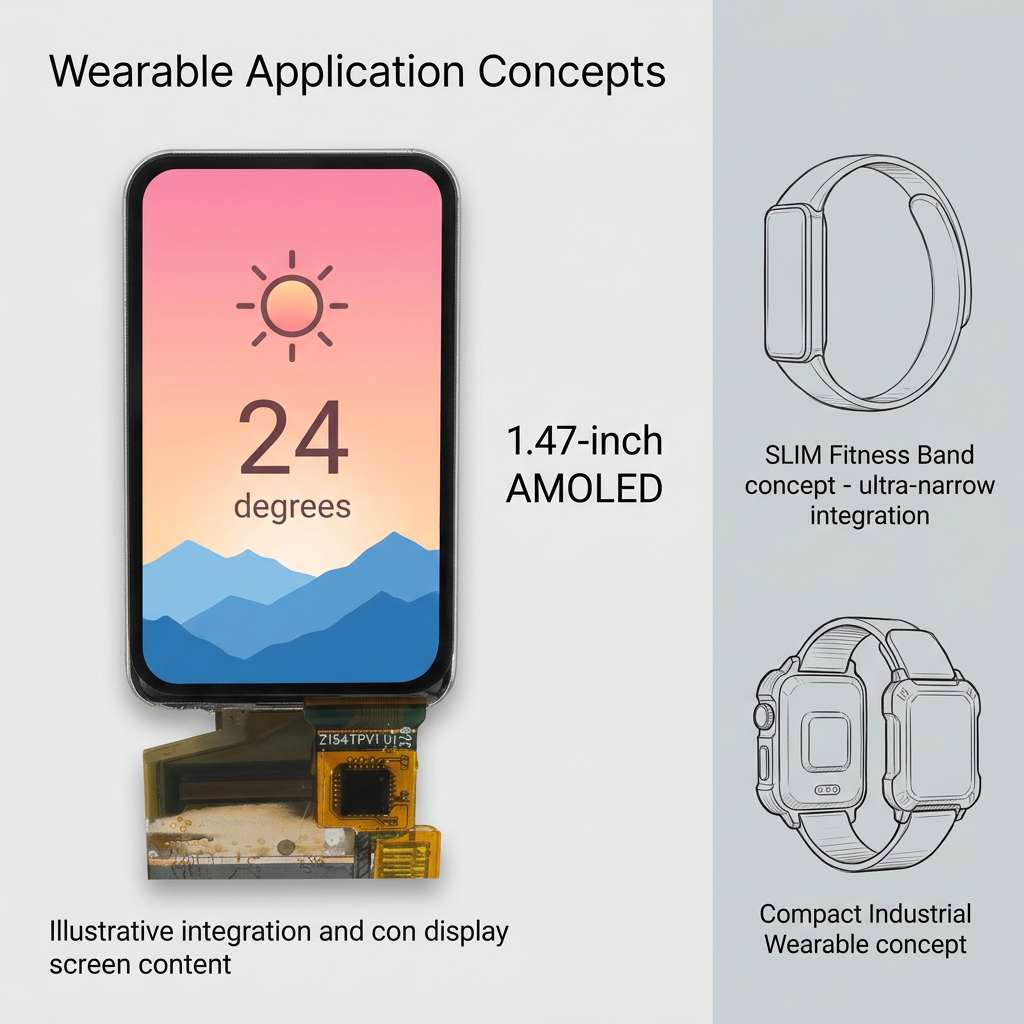

This 1.47 inch AMOLED display module is suitable for compact smart electronics that require vivid color, slim display structure, and reliable embedded control.
Reliability and Handling Reference
According to the specification reference, this AMOLED module includes environmental, electrical, and mechanical reliability items for engineering evaluation and product application support.
- Operating temperature: -20°C to +70°C
- Storage temperature: -30°C to +80°C
- High temperature operation: 70°C / 48 hrs
- Low temperature operation: -20°C / 48 hrs
- High temperature storage: 80°C / 48 hrs
- Low temperature storage: -30°C / 48 hrs
- High temperature humidity operation: 60°C / 90% RH / 48 hrs
- Thermal shock: -20°C to +70°C / 48 hrs
- Air discharge: ±4 / ±6 / ±8 kV, module level, without CG
- Contact discharge: ±1 / ±2 kV, module level, without CG
- Packing drop test: 60 cm height, 6 faces, 3 edges, and 1 corner
- Packing vibration-proof test: 2g, f = 10 -> 55 -> 10 Hz, each of X / Y / Z for 30 min
- Handling note: Avoid strong shock, excessive pressure, improper cleaning solvents, and static electricity damage during assembly.
- Storage note: Avoid direct sunlight and fluorescent lamp exposure, and store within the recommended environment.
- Transportation note: Avoid falling, violent shock, excessive pressing, water, damp, and sunshine during transportation.
Packaging and Delivery
Each AMOLED display module is packed carefully to help protect the display area, FPC section, and module assembly during shipment, storage, and transportation.
- Selling Units: Sample support and bulk order supply are available
- Customization Support: Interface confirmation, application discussion, and project-based support can be provided according to requirements
- Shipping: Global shipping supported, with final freight based on quantity, package method, and destination
- Packing reference: The packing page shows tray loading, vacuum packing, and carton packing reference for shipment
Frequently Asked Questions
1. What is this 1.47 inch AMOLED display module used for?
This module is suitable for wearable electronics, compact embedded products, portable devices, and other small smart products that require a slim full-color AMOLED display.
2. What resolution does this AMOLED display support?
It supports a 194 × 368 resolution, suitable for status interfaces, menus, icons, notifications, and compact display layouts.
3. What interface does this AMOLED module use?
According to the interface description, this module uses a QSPI-related interface structure with data and clock definitions suitable for compact embedded integration.
4. Which driver IC is used in this module?
According to the specification, the module uses the SH8501 driver IC. The datasheet also lists CST820 as the touch IC reference.
5. What are the active area and outline dimensions?
The active area is 17.46 × 33.12 mm, and the module outline is 23.10 × 39.90 mm.
6. What is the brightness of this 1.47 inch AMOLED display?
The electro-optical specification shows 800 cd/m² typical brightness and 850 cd/m² maximum brightness in full white condition. It also lists 1000 cd/m² typical boost brightness without CG.
7. What are the viewing angle and response time?
This AMOLED display module provides a 85° viewing angle and a 2 ms typical response time, with 3 ms maximum according to the datasheet.
8. What are the operating and storage temperature ranges?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C.
9. Does this module support touch integration?
The specification lists CST820 as the touch IC reference and includes TP_INT, TP_RST, TP_SDA, and TP_SCL in the interface description, so it supports touch-related integration planning.
10. What should be confirmed before selecting this AMOLED display module?
Before final selection, it is recommended to confirm display interface compatibility, touch communication, power supply design, mechanical dimensions, software initialization, and actual optical performance requirements.
Why Choose This 1.47 Inch AMOLED Display Module
The 1.47 Inch AMOLED Display Module from Brownopto combines 194 × 368 resolution, 800 nits typical brightness, QSPI interface support, SH8501 driver platform, touch integration reference, and compact slim structure in a design suitable for advanced wearable and embedded electronics development.
For customers looking for a dependable 1.47 inch AMOLED display module, a 194 × 368 AMOLED screen, or a small embedded AMOLED display for wearable applications, this model is a practical choice for engineering evaluation, product development, and OEM / ODM integration.
