1.41 Inch AMOLED Display 320×360 High Brightness Module
Quick Product Summary
The 1.41 Inch AMOLED Display Module from Brownopto is a compact high-resolution AMOLED display module developed for wearable and smart device applications that require vivid color, thin integrated structure, high brightness support, and reliable display performance.
- Product type: 1.41 inch AMOLED display module for compact smart device applications
- Core specifications: 320 × 360 resolution, AMOLED panel, CO5300 driver IC, CST820 touch IC
- Display structure: slim AMOLED module with lens structure and one-cell application note in drawing reference
- Brightness reference: 500 cd/m² typical luminance, 550 cd/m² maximum, boost mode up to 1000 cd/m² typical
- Best for: smart wearables, compact handheld electronics, user interface modules, and custom embedded display products
- Main advantage: 1.41 inch AMOLED screen with 320 × 360 resolution, strong optical performance, and compact module integration
- Recommended use: wearable product development, engineering evaluation, embedded smart display projects, and OEM / ODM device integration
- Selection note: suitable for projects requiring a 1.41 inch AMOLED display with compact dimensions and MIPI DSI-related signal design
Product Overview
The 1.41 inch AMOLED display module from Brownopto is designed for compact smart device integration and wearable display applications that need clear image quality, high brightness capability, stable electrical performance, and a refined full-color user interface. According to the specification, this model uses a 320 × 360 AMOLED panel with a 23.84 × 26.82 mm active area and a compact 32.21 × 49.34 mm LTPS glass outline.
This 1.41 inch AMOLED module includes the CO5300 driver IC and CST820 touch IC as listed in the datasheet. The module thickness with lens is 2.02 mm, making it suitable for slim device structures where display quality and mechanical control both matter.
For customers looking for a 1.41 inch AMOLED display module for wearable or compact electronics applications, this model offers a practical combination of AMOLED image quality, brightness flexibility, reliable mechanical integration, and engineering-oriented electrical design.
Key Features
- 1.41 Inch AMOLED Display: Suitable for compact smart device and wearable product development requiring vivid full-color visual performance.
- 320 × 360 Resolution: Supports clean display rendering for icons, system interfaces, notifications, status screens, and embedded UI applications.
- High Brightness Support: Standard brightness is 500 cd/m² typical, and boost mode reaches 1000 cd/m² typical according to the electro-optical table.
- Compact Integrated Structure: Uses a 32.21 × 49.34 mm LTPS glass outline and 2.02 mm module thickness with lens for device integration.
- CO5300 Driver IC: Used as the display driver platform according to the attached specification.
- CST820 Touch IC: Touch controller reference is listed in the specification for integration planning.
- Fast Response Performance: Response time is 2 ms typical and 3 ms maximum according to the datasheet.
- Wide Viewing Performance: Typical viewing angle reaches 85° for top, bottom, right, and left directions.
Who This Product Is Best For
Technical Specifications
| Product Name | 1.41 Inch AMOLED Display Module |
|---|---|
| Brand | Brownopto |
| Model Reference | AMOLED 1.41 |
| Display Mode | AMOLED |
| Display Size | 1.41 Inch |
| Resolution | 320 × 360 |
| LTPS Glass Outline | 32.21 × 49.34 mm |
| Active Area | 23.84 × 26.82 mm |
| Pixel Pitch | 0.745 × 0.745 mm |
| Module Thickness | 2.02 mm (with lens) |
| Driver IC | CO5300 |
| Touch IC | CST820 |
| Display Interface Signals | MIPI DSI-related pin definitions shown in interface table |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Brightness | 450 / 500 / 550 cd/m² (Min / Typ / Max) |
| Boost Brightness | 900 / 1000 cd/m² (Min / Typ) |
| Brightness Uniformity | 85% |
| Contrast Ratio | 10000 |
| Viewing Angle | 85° |
| Response Time | 2 ms typ, 3 ms max |
| Color Gamut | NTSC 97% min, 108% typ |
| Flicker | -30 dB |
| Crosstalk | 1.1% |
| Color Shift | 3.5 typ, 6 max JNCD |
| OLED Life Time | 200 hrs at 25°C, white pattern, 600 nits |
| Deep Standby Current | IVCI max 3 uA, IVDDIO max 3 uA |
Note: Before final selection, it is recommended to confirm host-side interface compatibility, power sequencing, software initialization, touch communication, connector matching, and actual mechanical fit in the target product.
Interface and Integration Notes

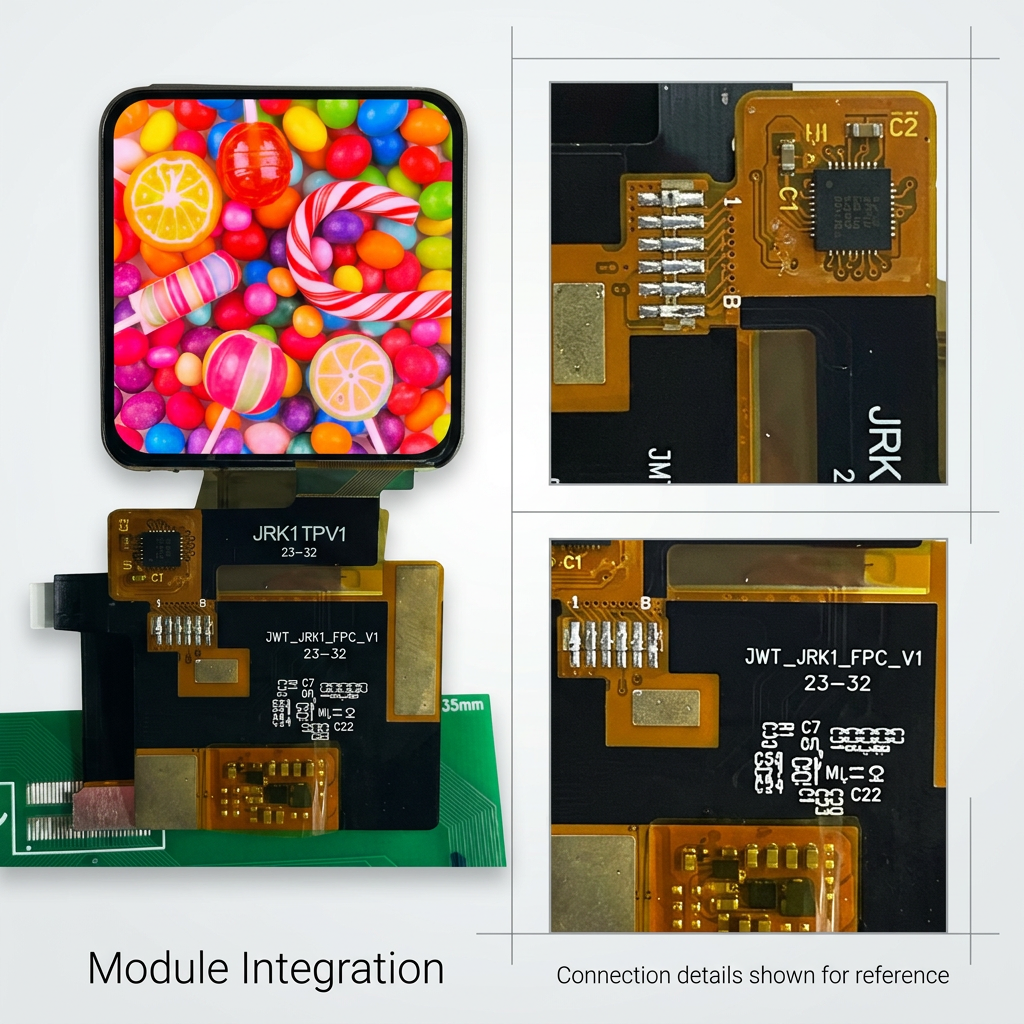

This 1.41 inch AMOLED display module shows a pin definition table that includes MIPI DSI-related signal names such as MDSI_DON, MDSI_DOP, MDSI_CLKN, and MDSI_CLKP. The module also includes touch-related pins such as TP_INT, TP_SDA, TP_SCL, and TP_RST.
- Main display signal reference: DSI-D0 differential data and DSI clock differential signal definitions are listed in the interface description.
- Touch communication: TP_SDA and TP_SCL are provided for touch I2C communication.
- Interrupt and reset: TP_INT, TP_RST, and XRES are listed for status and initialization control.
- Power rails: VCI, VDDID, ELVDD, and ELVSS are included in the electrical and interface sections.
- Engineering note: For actual project use, host-side hardware and software support should be confirmed according to the exact pin definition and initialization sequence in the datasheet.
Display and Optical Performance Notes

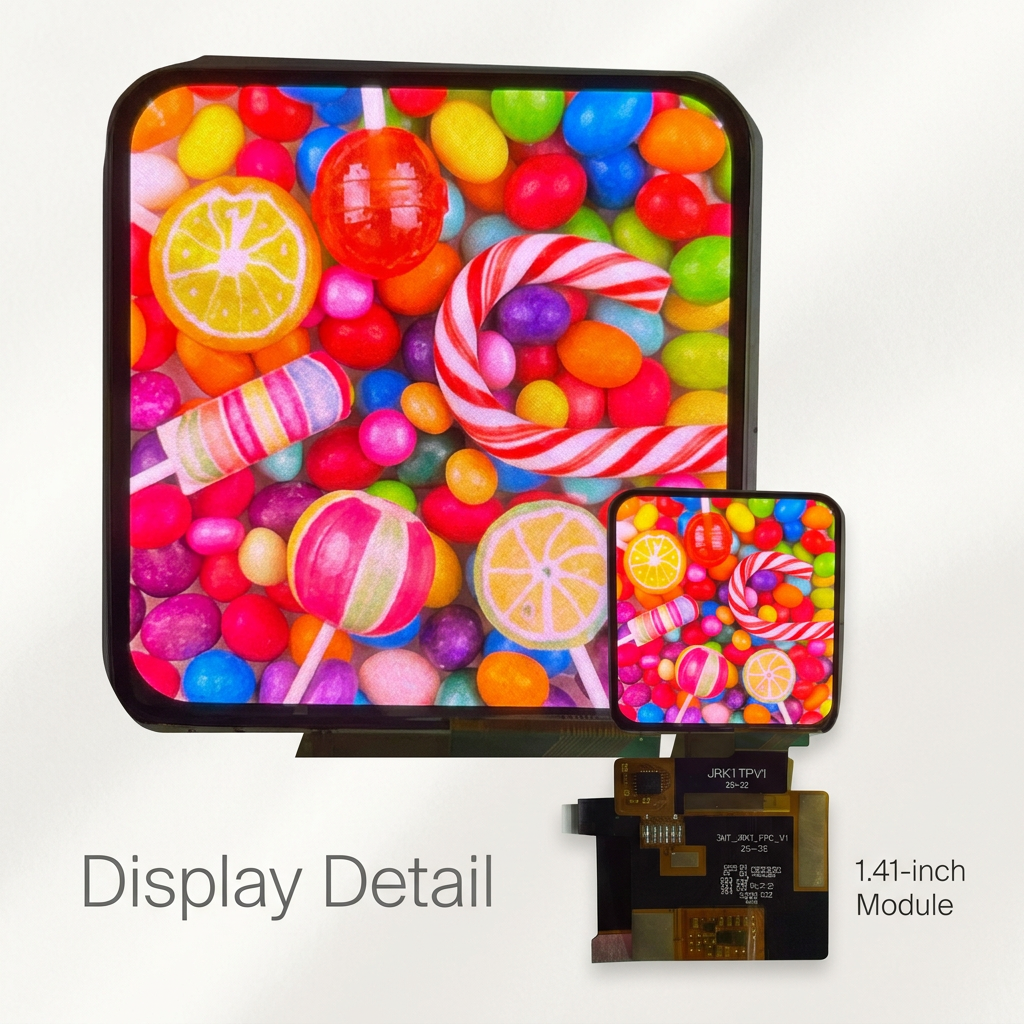

This 320 × 360 AMOLED display module is suitable for compact products requiring strong contrast, fast response, and flexible brightness behavior. According to the electro-optical section, the module provides 500 cd/m² typical brightness, 550 cd/m² maximum brightness, and a boost mode of 1000 cd/m² typical without CG.
- Brightness: 450 / 500 / 550 cd/m² (Min / Typ / Max)
- Boost brightness: 900 / 1000 cd/m² (Min / Typ)
- Brightness uniformity: 85%
- Contrast ratio: 10000
- Viewing angle: 85°
- Response time: 2 ms typ, 3 ms max
- Color gamut: NTSC 97% min, 108% typ
- Flicker: -30 dB
- Crosstalk: 1.1%
- Color shift: 3.5 typ, 6 max JNCD
Electrical and Power Reference
According to the provided specification, this AMOLED module includes normal mode, HBM mode, idle mode, and deep standby mode for engineering reference and system power planning.
- Digital power supply VDDIO: 1.65 / 1.8 / 1.95 V
- Analog power supply VCI: 2.65 / 2.8 / 2.95 V
- AMOLED positive power ELVDD: 3.25 / 3.3 / 3.35 V
- AMOLED negative power ELVSS: -3.35 / -3.3 / -3.25 V
- Panel GEOA power VDD: 5.8 / 6 / 6.2 V
- Panel GEOA power VEE: -6.2 / -6 / -5.8 V
- Panel reference power VINT: -3 V typ
- Vdata voltage: VGMP 4.4 V typ, VGSP 1.2 V typ in normal mode
- Normal mode test condition: 60 Hz, 600 nits, command mode
- 100% pixel on current in normal mode: IELVDD / ELVSS 39.47 mA typ, 45.39 mA max
- HBM mode reference: 60 Hz, 1000 nits, command mode, ELVDD-ELVSS = 7.2 V marked TBD
- 100% pixel on current in HBM mode: 69.43 mA typ, 79.84 mA max
- Idle mode: 15 Hz, 50 nits, IVDDIO 0.8 mA typ, 1 mA max
- Deep standby current: IVCI max 3 uA, IVDDIO max 3 uA
Product Selection Notes
This model is a strong choice for product teams that need a 1.41 inch AMOLED display module for compact embedded devices or wearable applications. It is especially suitable for projects where AMOLED image quality, slim mechanical structure, and engineering-defined electrical characteristics are required together.
For engineering evaluation, this module is best understood as a compact high-brightness AMOLED module with CO5300 driver platform and CST820 touch support, rather than a generic low-end display. Its key value is display quality, integration compactness, and practical development reference.
- Choose this model when your project requires a 1.41 inch AMOLED display with 320 × 360 resolution.
- Confirm host-side interface compatibility before final hardware and software selection.
- Check power design carefully according to ELVDD, ELVSS, VCI, VDDIO, VDD, and VEE requirements.
- Verify mechanical fit according to active area, glass outline, and module thickness with lens.
- Review boost mode conditions separately if high-brightness application performance is required.
- Check lifetime expectation carefully because the datasheet lists OLED life time as 200 hrs under the stated 600 nits white-pattern condition.
Application Scenarios
This 1.41 inch AMOLED display module is suitable for compact smart electronics that require colorful visual output, slim integration, and reliable embedded control.
Reliability and Handling Reference
According to the specification reference, this AMOLED module includes environmental, electrical, and mechanical reliability items for engineering evaluation and product application support.
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +80°C
- High temperature operation: 70°C / 240 hrs
- Low temperature operation: -20°C / 240 hrs
- High temperature storage: 80°C / 240 hrs
- Low temperature storage: -40°C / 240 hrs
- High temperature humidity operation: 60°C / 93%RH / 240 hrs
- Thermal shock: -40°C to 85°C, dwell time 0.5 hr, 100 cycles
- Air discharge: ±4 / ±6 / ±8 kV, module level, without CG
- Contact discharge: ±1 / ±2 kV, module level, without CG
- Packing vibration-proof test: 2g, f = 10 -> 55 -> 10 Hz, each of X / Y / Z for 30 min
- Packing drop test: 60 cm height, 6 faces, 3 edges, and 1 corner
- Handling note: Avoid mechanical shock, excessive force, unsuitable solvents, static damage, and improper power signal input.
- Storage note: Long-term recommended storage condition is 0°C to 40°C and relative humidity ≤80%.
- Transportation note: Avoid falling, violent shock, excessive pressure, water, damp conditions, and sunshine during transport.
Packaging and Delivery
Each AMOLED display module is packed carefully to help protect the display area, lens structure, FPC section, and module assembly during shipment, storage, and transportation.
- Selling Units: Sample support and bulk order supply are available
- Customization Support: Interface confirmation, application discussion, and project-based support can be provided according to requirements
- Shipping: Global shipping supported, with final freight based on quantity, package method, and destination
- Packing reference: The packing page shows tray loading, vacuum packing, and carton packing reference for production shipment
Frequently Asked Questions
1. What is this 1.41 inch AMOLED display module used for?
This module is mainly used for wearable electronics, compact smart devices, and other embedded products that require a small full-color AMOLED display.
2. What resolution does this AMOLED display support?
It supports a 320 × 360 resolution, suitable for icons, menus, status display, control interfaces, and compact UI layouts.
3. Which driver IC and touch IC are used in this module?
According to the specification, the module uses the CO5300 driver IC and CST820 touch IC.
4. What are the active area and outline dimensions?
The active area is 23.84 × 26.82 mm, and the LTPS glass outline is 32.21 × 49.34 mm.
5. What is the brightness of this 1.41 inch AMOLED display?
The electro-optical specification shows 500 cd/m² typical brightness, 550 cd/m² maximum brightness, and 1000 cd/m² typical boost brightness.
6. What is the viewing angle and response time?
This AMOLED display module provides a 85° viewing angle and a 2 ms typical response time, with 3 ms maximum according to the datasheet.
7. What interface does this AMOLED module use?
The interface table shows MIPI DSI-related signal definitions. Final host-side interface compatibility should be confirmed according to the exact project hardware design.
8. What are the operating and storage temperature ranges?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -40°C to +80°C.
9. Is this module suitable for slim products?
Yes. According to the mechanical specification, the module thickness is 2.02 mm with lens, making it suitable for compact product structures where thickness control is important.
10. What should be confirmed before selecting this AMOLED display module?
Before final selection, it is recommended to confirm display interface compatibility, power supply design, mechanical dimensions, touch integration, software initialization, and actual brightness and lifetime requirements.
Why Choose This 1.41 Inch AMOLED Display Module
The 1.41 Inch AMOLED Display Module from Brownopto combines 320 × 360 resolution, compact AMOLED visual quality, 500 nits typical brightness, boost mode up to 1000 nits typical, CO5300 driver support, and CST820 touch reference in a slim module structure suitable for advanced compact electronics development.
For customers looking for a dependable 1.41 inch AMOLED display module, a 320 × 360 compact AMOLED screen, or a small embedded AMOLED display for wearable and smart electronics applications, this model is a strong choice for engineering evaluation, product development, and OEM / ODM integration.
