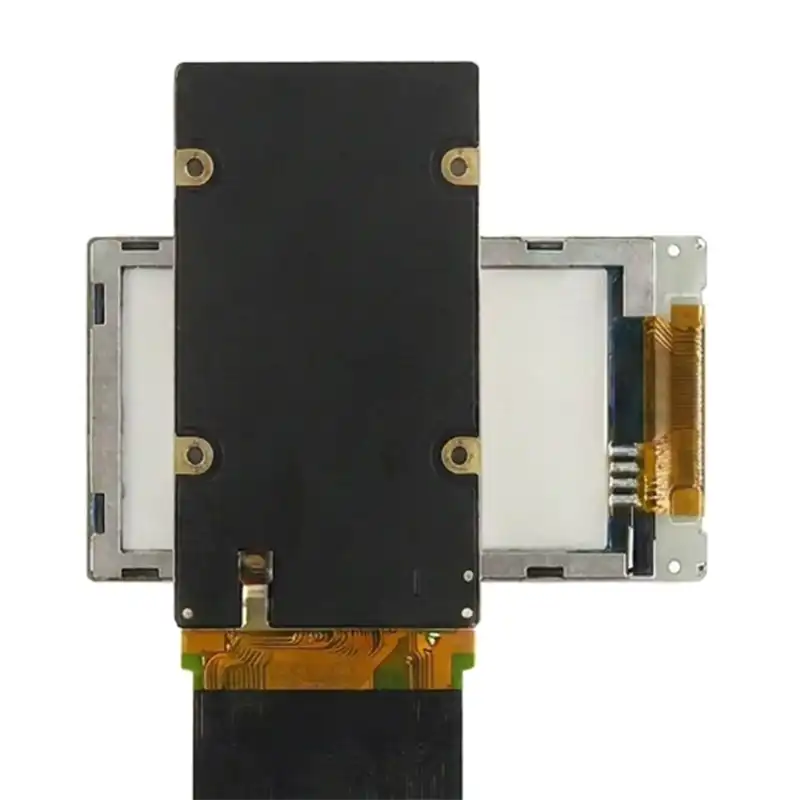

0.95 Inch Wearable AMOLED Display Module 120x240 SPI Touch Screen
Quick Product Summary
The 0.95 Inch Wearable AMOLED Display Module from Brownopto is a compact AMOLED display solution developed for smart bands, healthcare wearables, portable smart electronics, and other small devices that require vivid colors, deep contrast, slim structure, and integrated touch support.
- Product type: 0.95 inch wearable AMOLED display module
- Core specifications: 120 × 240 resolution, AMOLED panel, touch integration, 24-pin SPI interface
- Display structure: on-cell touch design with lens, compact outline, and thin module profile
- Brightness reference: typical 350 cd/m² surface luminance, with operating data also referencing 600 nits normal mode and 1000 nits HBM mode in the specification
- Best for: smart bands, compact wearable devices, health monitoring products, and lightweight portable interfaces
- Main advantage: small-size AMOLED module with touch, high contrast, wide viewing angle, and practical embedded integration value
- Recommended use: wearable product evaluation, prototype development, UI validation, and OEM / ODM customized device projects
- Selection note: ideal for projects requiring a small AMOLED screen with touch, SPI communication, and compact mechanical structure
Product Overview
The 0.95 inch AMOLED display module from Brownopto is designed for wearable electronics and compact smart devices that need a small full-color display with premium visual performance. This wearable AMOLED display is suitable for applications where deep blacks, high contrast, thin structure, and responsive interface design are important.
This 120 × 240 AMOLED module features an active area of 10.80 × 21.60 mm, a LTPS glass outline of 35.50 × 15.50 mm, and a module thickness of 1.72 mm with lens. The module uses the ICNA3306 driver IC, integrates touch through AXS5106, and supports a 24-pin SPI interface for practical connection in embedded wearable systems.
For customers looking for a small AMOLED display module with touch, this model offers a balanced combination of compact size, AMOLED image quality, wide viewing angle, and integration flexibility for wearable display development, product testing, and mass-production evaluation.
Key Features
- 0.95 Inch Compact AMOLED Design: Built for wearable products and other small electronic devices that require a slim and space-efficient display structure.
- 120 × 240 Resolution: Suitable for compact graphical interfaces, icon display, text presentation, and vertical wearable UI layouts.
- Integrated Touch Support: Combines AMOLED display performance with touch function support for more convenient user interaction design.
- 24-pin SPI Interface: Supports practical embedded connection for wearable device platforms and compact product control systems.
- ICNA3306 Driver IC: Helps provide stable display control and AMOLED driving performance in product integration.
- AXS5106 Touch IC: Supports touch coordination for wearable applications requiring responsive operation.
- Thin Module Structure: With a module thickness of 1.72 mm including lens, this display is suitable for compact industrial design requirements.
- AMOLED Visual Advantages: Offers high contrast, deeper blacks, wide viewing angle, and stronger display appearance compared with many conventional small display solutions.
Who This Product Is Best For
Technical Specifications
| Product Name | 0.95 Inch Wearable AMOLED Display Module |
|---|---|
| Brand | Brownopto |
| Model Reference | AMOLED0.95 |
| Display Mode | AMOLED |
| Display Size | 0.95 Inch |
| Resolution | 120 × 240 |
| Active Area | 10.80 × 21.60 mm |
| LTPS Glass Outline | 35.50 × 15.50 mm |
| Pixel Size | 0.09 × 0.09 mm |
| Module Thickness | 1.72 mm (with lens) |
| Driver IC | ICNA3306 |
| Touch IC | AXS5106 |
| Interface | 24-pin SPI |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Surface Luminance | 300 / 350 / 400 cd/m² (Min / Typ / Max) |
| Contrast Ratio | 30000:1 |
| Viewing Angle | 88° |
| NTSC Ratio | 85% / 100% (specification reference) |
Note: Before final selection, it is recommended to confirm interface compatibility, touch communication logic, controller support, software adaptation, mechanical fit, connector location, power design, and actual application brightness requirements according to the target wearable device platform.
Interface and Integration Notes
This wearable AMOLED module with touch supports a 24-pin interface structure that includes display and touch connections for embedded integration. Based on the provided specification, the module side includes SPI communication for display control and I2C touch signals for touch coordination.
- Display control: SPI_CS, SPI_SDI, SPI_SDO, SPI_CLK, SPI_DCX, TE, and reset-related pins are included for module communication and synchronization.
- Touch communication: TP_SDA, TP_SCL, TP_INT, and TP_RST are included for touch function integration.
- Power design: The module includes analog power, pixel circuit power, ground pins, and touch power input according to the specification.
- Integration recommendation: Confirm MCU / platform compatibility, initialization sequence, touch communication design, and connector mapping before final hardware layout.
Product Selection Notes
This model is a practical choice for product teams that need a small AMOLED screen with touch for compact wearable or portable electronics. It is especially suitable for projects where mechanical space is limited, but premium display effect and interactive operation are still required.
For engineering evaluation, this module is best understood as a 0.95 inch wearable AMOLED display with SPI display communication and touch support, rather than a general-purpose large-screen module. Its strength is compact integration efficiency for small smart devices.
- Choose this model when your project requires a compact AMOLED module with touch, strong contrast, and a slim mechanical profile.
- Confirm controller compatibility according to your MCU platform, SPI communication design, and software driving requirements.
- Check touch integration needs in advance if your product requires gesture or touch-based operation logic.
- Verify mechanical fit according to active area, outline size, module thickness, and structural assembly space.
- Confirm power and brightness strategy according to real usage conditions, especially if your product needs different display modes or enhanced brightness performance.
Application Scenarios
This 0.95 inch AMOLED display module is suitable for smart wearable and compact embedded products that require a small high-quality display with touch coordination and practical interface integration.
Reliability and Handling Reference
According to the specification reference, this AMOLED module includes reliability items covering high-temperature storage, low-temperature storage, high-temperature operating, low-temperature operating, temperature cycle storage, and high-temperature humidity storage.
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +80°C
- Handling note: The display surface and polarizer should be handled carefully to avoid scratches, pressure damage, and electrostatic risk.
- Storage note: Long-term storage should avoid direct sunlight, harmful gas exposure, and unsuitable humidity conditions.
- Transportation note: Avoid falling, violent shock, excessive pressure, water, damp environments, and direct sunshine during shipment and handling.
Packaging and Delivery
Each AMOLED display module is packed carefully to help protect the display surface, touch area, FPC connection area, and structural parts during sample delivery, storage, and transportation.
- Selling Units: Sample supply and bulk order support are available
- Customization Support: Project-based display selection, touch integration discussion, and application matching support can be provided according to requirements
- Shipping: Global shipping supported, with final freight based on quantity, packing method, and destination
Frequently Asked Questions
1. What is this 0.95 inch AMOLED display module used for?
This module is mainly used for smart bands, wearable electronics, health monitoring devices, and other compact products that require a small AMOLED screen with touch support and vivid display performance.
2. What resolution does this wearable AMOLED display support?
It supports a 120 × 240 resolution, making it suitable for compact vertical UI layouts, icons, text, and wearable interface content.
3. Does this AMOLED module include touch support?
Yes. Based on the specification, this module supports touch integration and uses the AXS5106 touch IC for touch-related coordination.
4. What interface does this small AMOLED display use?
This module uses a 24-pin SPI interface for display communication, while the touch part includes I2C-related touch signals according to the specification.
5. Which driver IC is used in this AMOLED display module?
The display uses the ICNA3306 driver IC, and the touch function uses AXS5106.
6. What are the active area and outline dimensions?
The active area is 10.80 × 21.60 mm, and the LTPS glass outline is 35.50 × 15.50 mm.
7. What is the thickness of this wearable AMOLED module?
The module thickness is 1.72 mm with lens, which makes it suitable for compact wearable product structures.
8. What is the operating temperature range?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -40°C to +80°C.
9. What are the main advantages of this 0.95 inch AMOLED display?
The main advantages are its compact 0.95 inch size, 120 × 240 resolution, AMOLED contrast performance, touch integration, thin structure, and practical suitability for wearable product development.
10. What should be confirmed before selecting this AMOLED display module?
Before final selection, it is recommended to confirm the display interface, touch communication logic, controller compatibility, mechanical dimensions, power design, and target application brightness requirements.
Why Choose This 0.95 Inch Wearable AMOLED Display
The 0.95 Inch Wearable AMOLED Display Module from Brownopto combines 120 × 240 resolution, AMOLED visual performance, ICNA3306 driver control, touch support, and a compact 24-pin SPI integration structure in a practical small-size module.
For customers looking for a dependable wearable AMOLED display module, a small AMOLED screen with touch, or a 0.95 inch AMOLED module for smart wearable devices, this model is a strong choice for evaluation, engineering development, and OEM / ODM product integration.
