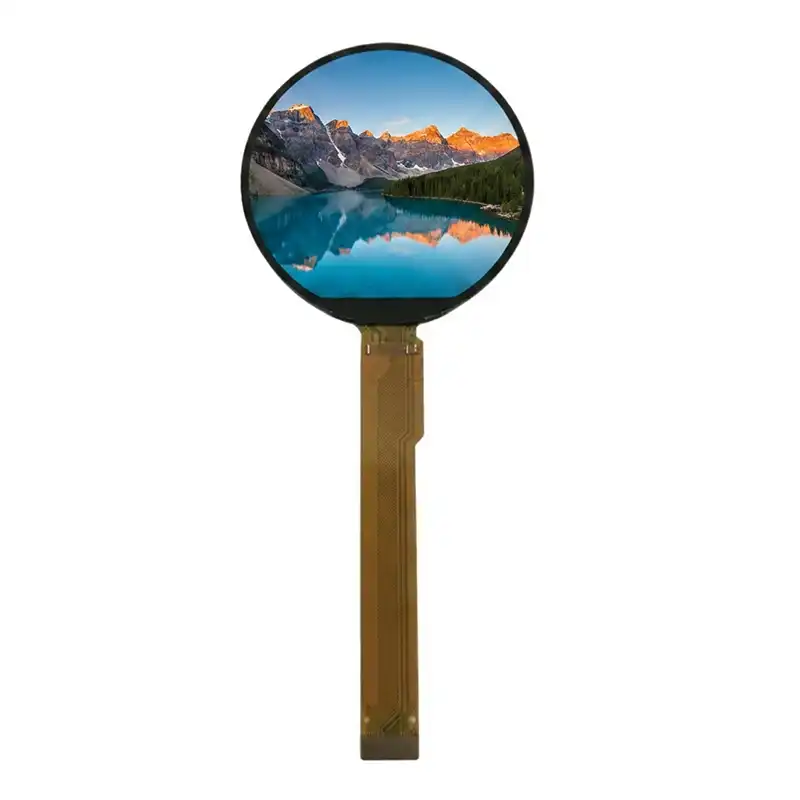

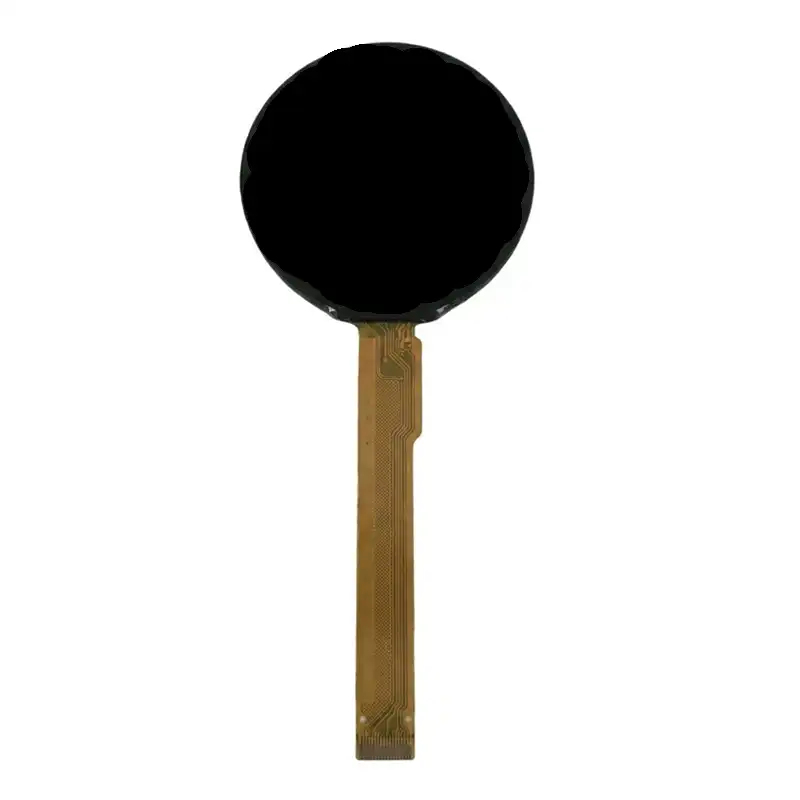

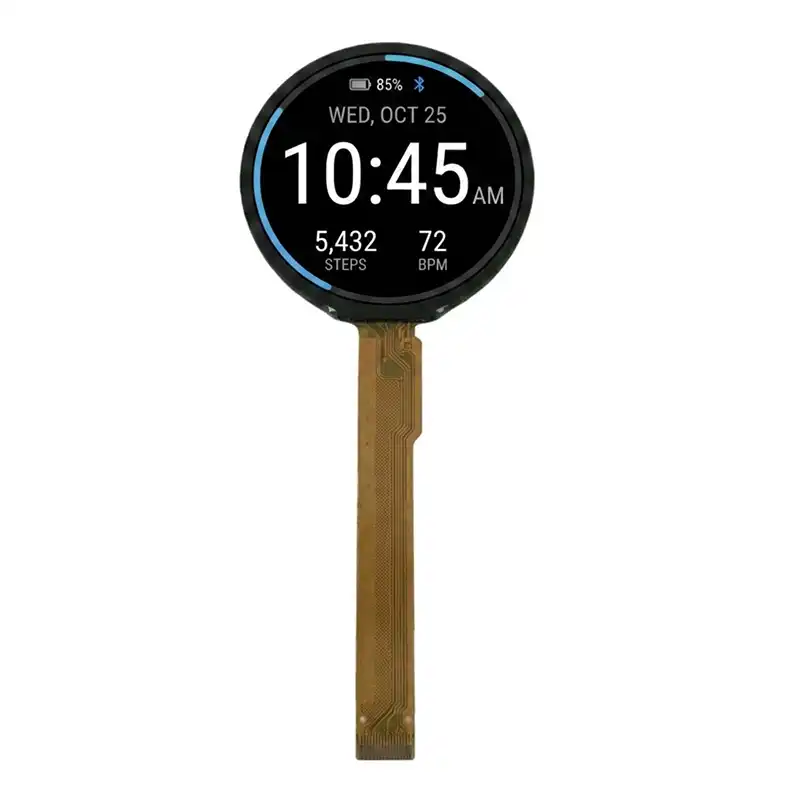

1.8 Inch Round LCD Display Module for Smart Control Interfaces
Quick Product Summary
The 1.8 Inch Round TFT LCD Display Module from Brownopto is a compact circular display solution designed for embedded devices, smart terminals, industrial control products, and consumer electronics that require a true round screen interface and flexible hardware integration.
- Product type: 1.8 inch true round TFT LCD display module
- Core specifications: 360 × 360 resolution, 300 nits brightness, ST77916 driver IC, multiple interface support
- Supported interfaces: MIPI, RGB, MCU, SPI, and QSPI
- Best for: round control panels, smart terminals, compact HMI devices, dashboard-style interfaces, and embedded systems
- Main advantage: true circular display structure with broader interface flexibility for different development platforms
- Recommended use: engineering evaluation, OEM integration, embedded product development, and circular UI applications
- Selection note: suitable for indoor and general electronic display projects; interface matching should be confirmed based on the actual controller platform
Product Overview
The 1.8 Inch Round TFT LCD Display from Brownopto is a compact circular display module designed for smart terminals, embedded systems, industrial control panels, and consumer electronics that require a modern round screen interface.
This round TFT LCD screen features a 360 × 360 resolution, 300 nits brightness, and a 45.68 × 45.68 mm active area, making it suitable for clear display of icons, text, menus, and graphical content in circular user interfaces.
Powered by the ST77916 driver IC, this module supports MIPI, RGB, MCU, SPI, and QSPI interfaces, giving developers more flexibility for different hardware platforms and round display applications.
Key Features
- True Round Screen Design: The circular display structure is ideal for smart home interfaces, instrument panels, rotary control systems, wearable-style interfaces, and other compact products requiring a round visual layout.
- 360 × 360 Resolution: Delivers balanced image clarity for round UI design, icons, text, and graphical display content in a compact module.
- ST77916 Driver IC: Provides stable display performance and supports reliable operation in embedded and industrial applications.
- Multiple Interface Options: Supports MIPI, RGB, MCU, SPI, and QSPI interfaces for broader compatibility across different development platforms.
- 300 Nit Brightness: Suitable for indoor applications and general-purpose electronic display devices.
- Compact Circular Display Module: A practical solution for applications requiring a small round TFT LCD with flexible interface support and efficient integration value.
Who This Product Is Best For
Technical Specifications
| Product Name | 1.8 Inch Round TFT LCD Display Module |
|---|---|
| Brand | Brownopto |
| Display Size | 1.8 Inch |
| Display Shape | Round Screen |
| Driver IC | ST77916 |
| Resolution | 360 × 360 |
| Brightness | 300 nits |
| Interface | MIPI / RGB / MCU / SPI / QSPI |
| Active Area | 45.68 × 45.68 mm |
| Outline Dimensions | 47.99 × 49.86 × 1.9 mm |
Note: For actual project implementation, it is recommended to confirm interface matching, controller compatibility, pin definition, and software support before final selection.
Optional Matching Driver Boards
This 1.8 inch round TFT LCD display can be paired with optional driver boards for product development, signal evaluation, and application testing.
- Parallel Port Drive Board: Suitable for display testing and embedded interface development.
- Rotary Control Display Board: Designed for round UI control applications and rotary interaction solutions.
- AI Human-Computer Interaction Driver Board: Suitable for smart interactive display projects and advanced HMI development.
Product Selection Notes
This product supports MIPI, RGB, MCU, SPI, and QSPI interfaces, offering strong application flexibility for circular display projects across different controller platforms.
With multiple interface options and a compact round structure, it is a practical choice for developers seeking flexibility, visual appeal, and efficient system integration.
- Choose this model when your project requires a compact round TFT LCD with multiple interface options.
- Confirm the target interface based on your controller platform, communication design, and software development path.
- Check mechanical fit according to active area, outline dimensions, connector space, and front-panel design.
- Evaluate brightness suitability if the product will be used in higher ambient light conditions.
- Confirm support requirements in advance if you need driver board matching, engineering evaluation, or project-based selection assistance.
Application Scenarios
This 1.8 inch round TFT LCD module is suitable for compact electronic products that require a circular visual interface, flexible signal support, and modern industrial design.
Frequently Asked Questions
1. Is this a true round TFT LCD display?
Yes. This product is a true circular TFT LCD display designed for applications that require a round screen interface and compact visual integration.
2. What resolution does this 1.8 inch round screen support?
It supports a resolution of 360 × 360, which is suitable for circular UI layouts, icons, text, and graphical display content.
3. Which driver IC is used in this circular display module?
This module uses the ST77916 driver IC to provide stable display control and reliable performance.
4. What interfaces are available for this round TFT LCD screen?
This product supports MIPI, RGB, MCU, SPI, and QSPI interfaces, making it suitable for a wide range of hardware platforms and system designs.
5. What applications is this product suitable for?
It is suitable for smart home devices, round dashboard displays, control terminals, embedded HMI systems, and consumer electronics requiring a circular display module.
6. Is this display suitable for embedded and OEM development?
Yes. This module is suitable for embedded product development, OEM integration, engineering evaluation, and project-based round display applications.
7. Is 300 nits brightness suitable for all environments?
300 nits brightness is generally suitable for indoor and general electronic display applications. For brighter ambient environments, brightness suitability should be evaluated according to the actual use condition.
8. Are matching driver boards available for testing and development?
Yes. Optional matching solutions include a parallel port drive board, rotary control display board, and AI human-computer interaction driver board.
9. What should be confirmed before selecting this round TFT LCD module?
It is best to confirm the target interface, controller compatibility, pin definition, mechanical dimensions, and whether driver board support is needed during development.
10. What is the main benefit of this 1.8 inch round TFT LCD display?
The main benefit is that it combines a true circular display structure, 360 × 360 resolution, flexible interface support, and compact size for modern round-screen embedded products.
Why Choose This 1.8 Inch Round TFT LCD Display
The 1.8 Inch Round TFT LCD Display from Brownopto combines a compact circular form factor, 360 × 360 resolution, flexible interface support, and stable ST77916 driver performance in one practical module.
If your project requires a reliable round TFT LCD screen, a versatile circular display module, or a practical solution for smart device interfaces, this product is a strong choice for development, evaluation, and integration.
Featured collection
TFT Custom Solutions
Our company offers custom-made TFT solutions, tailored to your unique display needs, ensuring high-quality, precision, and satisfaction.
Touchscreen Enhancement
Boost your device’s interactivity with our advanced touchscreen technology. We tailor the panel shape and glass thickness to your requirements, enhancing your product’s user experience.
Custom Cable Design
Steady and efficient hardware connections play a vital role in guaranteeing optimal display performance. Our bespoke cabling solutions ensure consistently stable and efficient connectivity, supporting your display unit’s essential operations.
Interface Customization
Enhance the performance of your devices with our tailored display interface solutions. We provide a variety of commonly used interfaces, including MIPI, TTL/RGB, MCU, LVDS, EDP, and SPI. We tailor these interfaces to align with your specific device requirements, ensuring optimized performance and efficiency.
Cover Glass Customization
High-quality cover glass serves to protect your display and enhance the stability and durability of your device. Selecting the appropriate glass thickness and conducting optical bonding further elevates the display quality. Our customized glass solutions ensure that your device not only looks good, but also stood the test of time.
Software/Firmware Customization
Enhance display performance with our customized software and firmware. We tailor the user interface to your device’s needs, maximizing user experience and operational efficiency.
INTELLIGENT CONTROL BOARD
Utilizes high-performance processors and advanced algorithms to achieve fast response and high-efficiency data processing capabilities. Supports various communication protocols to ensure seamless connection with external devices.
Round TFT LCD Series FAQ
Common questions about round TFT LCD displays for OEM and embedded applications.
What is a round TFT LCD display used for?
A round TFT LCD display is commonly used in products that require a circular user interface, such as smart thermostats, rotary control panels, smart home devices, compact HMI terminals, dashboard-style interfaces, and custom embedded products.
Why choose a round TFT display instead of a standard rectangular LCD?
A round TFT display is a better choice for products with circular housings, dial-based layouts, or rotary interaction logic. It helps improve design consistency, reduces unused display corners, and supports round UI elements more naturally than a standard rectangular LCD.
What interfaces are commonly available for round TFT LCD modules?
Round TFT LCD modules are commonly available with interfaces such as MIPI, RGB, MCU, SPI, and QSPI, depending on the display model and project requirements. The right interface should be selected based on the controller platform, pin availability, data speed, and development architecture.
Can round TFT LCD displays be used in OEM and embedded projects?
Yes. Round TFT LCD displays are widely used in OEM and embedded product development. They are suitable for engineering evaluation, hardware integration, interface testing, and mass-production projects that require compact circular display solutions.
What should be confirmed before selecting a round TFT LCD module?
Before selecting a round TFT LCD module, it is best to confirm the required display size, resolution, interface type, brightness level, controller compatibility, mechanical space, and whether a matching driver board or customization support is needed.
