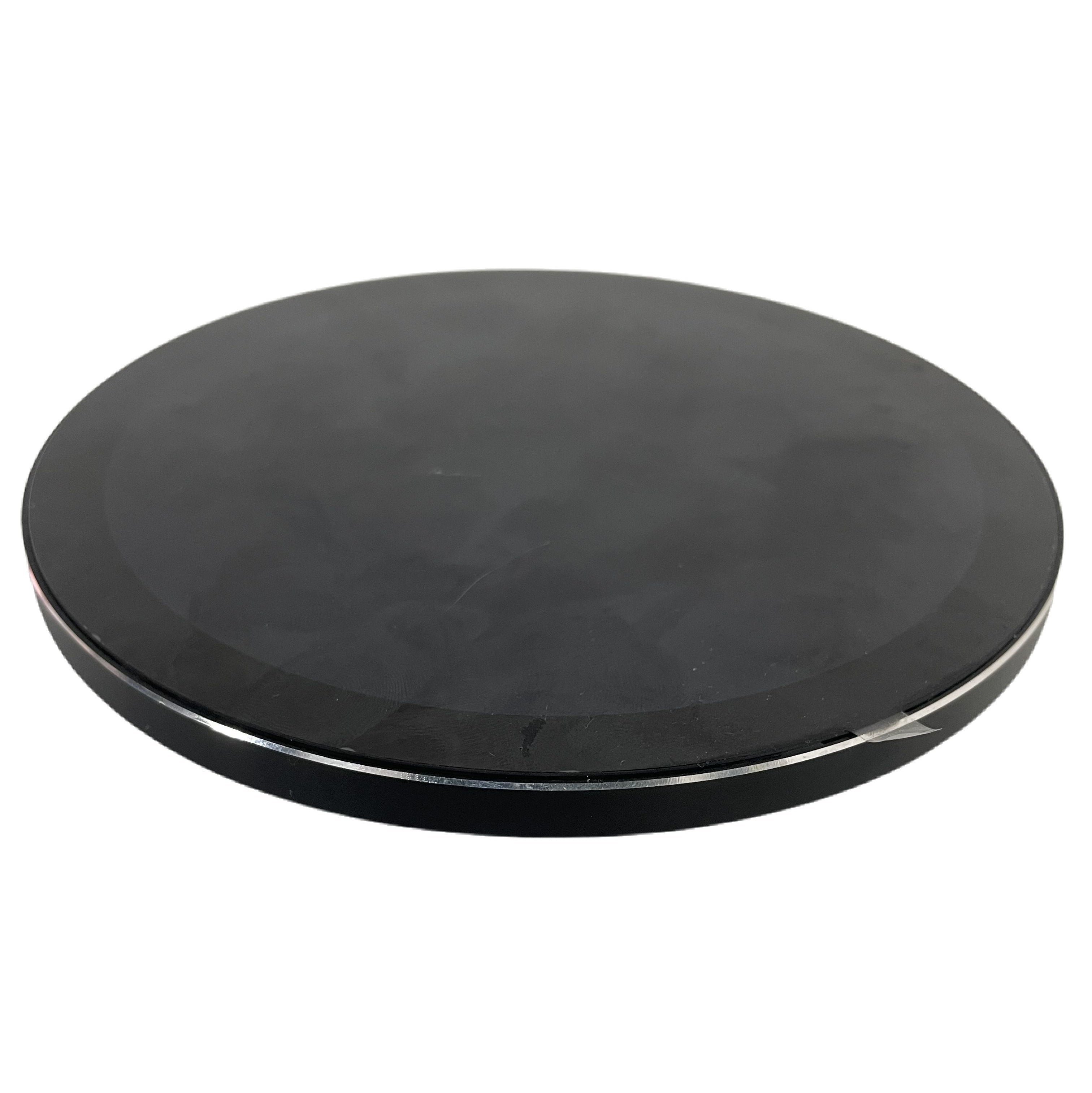

23.6-inch Round Smart Display Terminal LCD Advertising Screen
BR236L2B-N Advertising Screen Overview
23.6-inch round smart display terminal offers a vibrant and high-definition visual experience. Key features include:
- Display Quality: A 23.6-inch LCD panel with a resolution of 1280(V)×1280(H) and a brightness of 1500 cd/m², providing crystal-clear images with a wide viewing angle of 178° horizontally and vertically.
- Performance: Equipped with a Rockchip RK3568 quad-core ARM Cortex-A55 processor running at 2.0GHz, paired with 2GB DDR4 RAM and 16GB EMMC storage (with options for 16GB/32GB).
- Operating System: Runs on Android 11, offering a robust platform for application support and user interface.
- Connectivity: Supports 10/1000M Ethernet, 2.4G WiFi, and Bluetooth 4.0, ensuring seamless network access.
- Optional Features: Includes a 4G module and dual 8Ω5W speakers for enhanced audio.
- Content Management: Supports multi-split screen displays, schedule-based content release management, and remote terminal monitoring.
- Customization: Allows for free screen partitioning, combining various media elements, and supports system-level operations like startup, shutdown, and restart.
- Design: Wall-mountable with a sleek metal design, weighing 9.1Kg and featuring VESA 200*200mm mounting points.
- Environmental Compatibility: Operates within a temperature range of 0°C to 50°C and humidity levels of 10% to 85%.
- Power Consumption: Consumes ≤120W with an input voltage range of 100-240V (50/60Hz).
The device is ideal for high-impact advertising and informational displays, ensuring engaging multimedia content delivery in a stylish and functional package.
Product Parameter(Model:BR236L2B-N )
| Screen parameters | |
| Size | 23.6"LCD Panel |
| Active display area | 599.424(W)×599.424(H) mm |
| Resolution | 1280(V)x1280(H) |
| Brightness | 1500cd/㎡ |
| Contrast ratio | 10O0:1 |
| Display color | 16.7M,72%NTSC |
| Backlight | WLED |
| Viewing angles | 178°(H) X 178°(V) |
| Response time | 14ms |
| Lifespan | 50000 hours |
| Main board Spec. | |
| CPU | Rockchip RK3568 Quad core ARM Cotex-A55 2.0Ghz |
| 内存/RAM | 2G DDR4 |
| ROM | 16G EMMC(16G/32G EMMC for optional) |
| Memory extension | TF Card extension with the highest support for 128GB |
| System | Android 11 |
| Intetnet | Support 10/1000M Internet、2.4G WIFI connection 、BT 4.0 |
| RTC real time clock | Support timing on / off function |
| Interfaces | USB 3.0*2,TF*1,RJ45*1,HDMI OUT*1,Ear+Mic *1 |
| Optional | 4G module |
| speak 8Ω5W*2 | |
| Support for special requirements customization | |
| Information Release System (Optional) | |
| Split Screen Display | Support for displaying pictures, videos at 1080x1080 resolution and text information release, including clocks. Support for multiple split-screen displays. |
| Content Management | Schedule management according to the release calendar: The types include time slots, days, weeks, months, and rotation. Can divide single terminal or group display by segments. |
| Terminal Monitoring | Support network access, terminal monitoring: Download programs and server commands sent to terminals, and visualize execution status. |
| Content Release | Support offline file transfer, monitor terminal operation status, and support statistical reports. |
| Free Partitioning | Free division of screen areas: Arbitrary combination of video, images, subtitles, clocks, weather forecasts, and various information sources such as web data. |
| Playback Management | Player management: Support system startup, shutdown, and restart. Support remote software upgrades. |
| machine specification | |
| Operating voltage | 100-240V(50/60Hz) |
| Power Rating | AC 100-240V input |
| Power consumption | ≤120W |
| Product size | 657*657*55mm |
| Installation | wall-mounted |
| material | Metal materials |
| Net | ≤9.1KG |
| VESA | 200*200mm |
| Environmental | |
| Storage Environment | Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa |
| Working Environment | Temperature：0℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa |
| Packing list | |
| Admachine | 1Pcs |
| Power Cable | 1Pcs |
Featured collection
Product description display
BOE offers premium display solutions, including bar-shaped, high-brightness, embedded, square displays, and commercial products to fulfill diverse needs. BOE is your all-in-one solution for indoor and outdoor displays.
Product feature introduction
UHD
Ultra HD display
Feature name
Simultaneous multiple display with composite playback function
You can create composite content consisting of videos plus multiple static images or dynamic images using pre-installed software.
FAQ
Questions about BAR LCD and Advertisement Display
1. What is a Bar LCD Display?
A Bar LCD Display is a narrow, elongated LCD screen used to display advertisements, menus, or information. Its slim design makes it ideal for limited spaces such as bars, ceilings, or above doorways.
2. What are the main applications of Bar LCD Displays?
Widely used in bars, restaurants, convenience stores, subways, elevators, and shopping malls for dynamic ads, promotions, or real-time notifications.
3. Does it support landscape and portrait mounting?
Yes, most models support both landscape and portrait orientations for flexible installation.
4.How to maintain a Bar LCD Display?
Clean the screen regularly with a soft cloth, avoid direct sunlight, and check power and signal cables
5.What types of Advertisement Displays are available?
Main types include LCD, LED, OLED, transparent, and double-sided displays, suitable for various applications.
6. What are the installation options?
Supports wall-mount, floor-standing, ceiling-hang, and recessed installation for flexible deployment.
