7 Inch Bar Type LCD Module for Smart Displays and Embedded Device Design
7 Inch Bar type LCD Module for Smart Displays and Embedded Device Design
Compact portrait Bar type LCD Module with 280 × 1424 resolution, 500 nits brightness, 30pin MIPI interface, and OTA7290B driver IC for smart display and embedded integration.

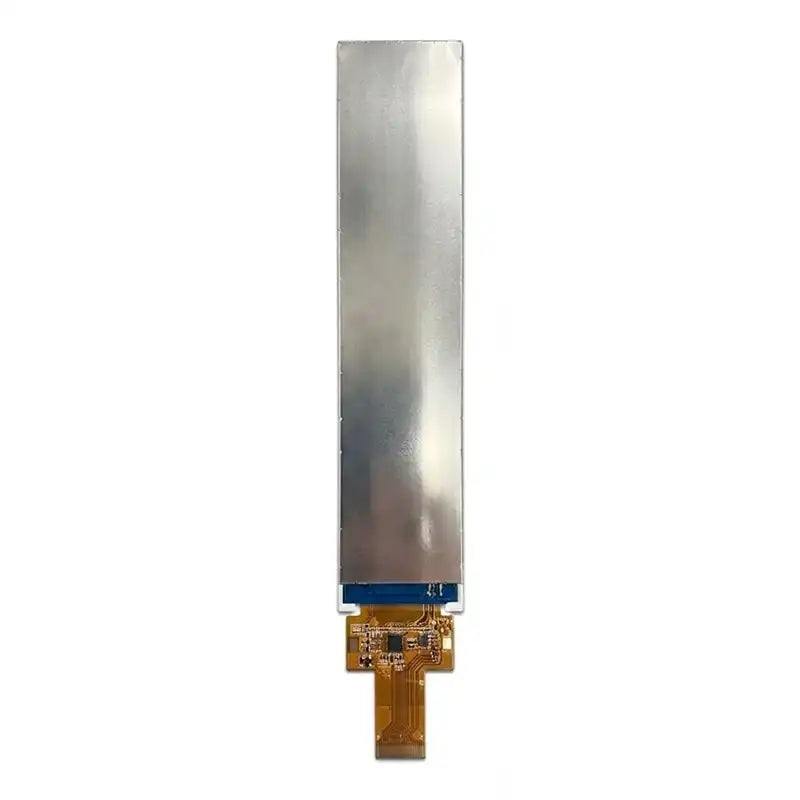

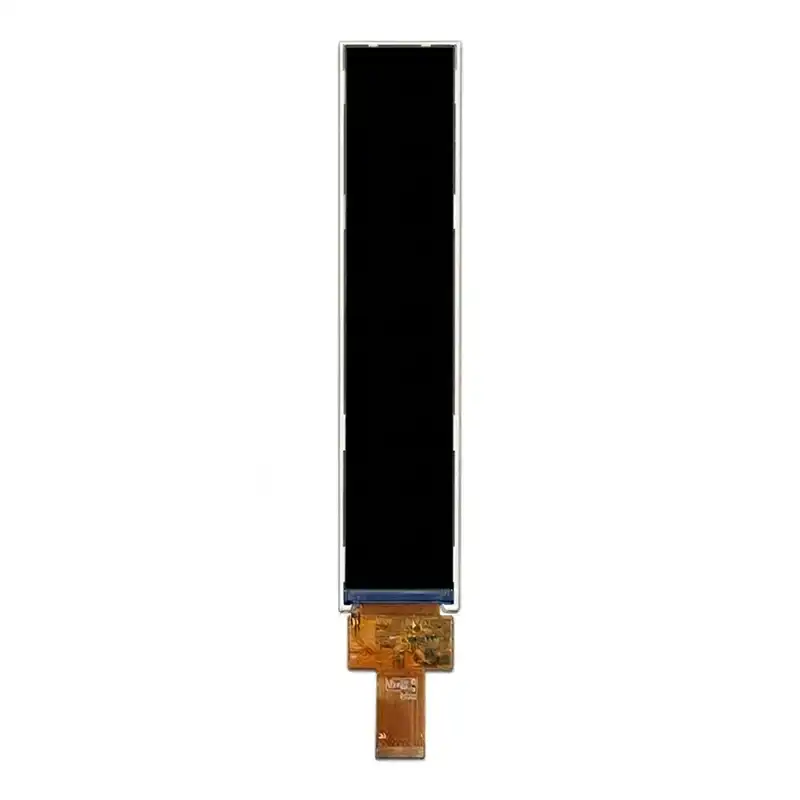

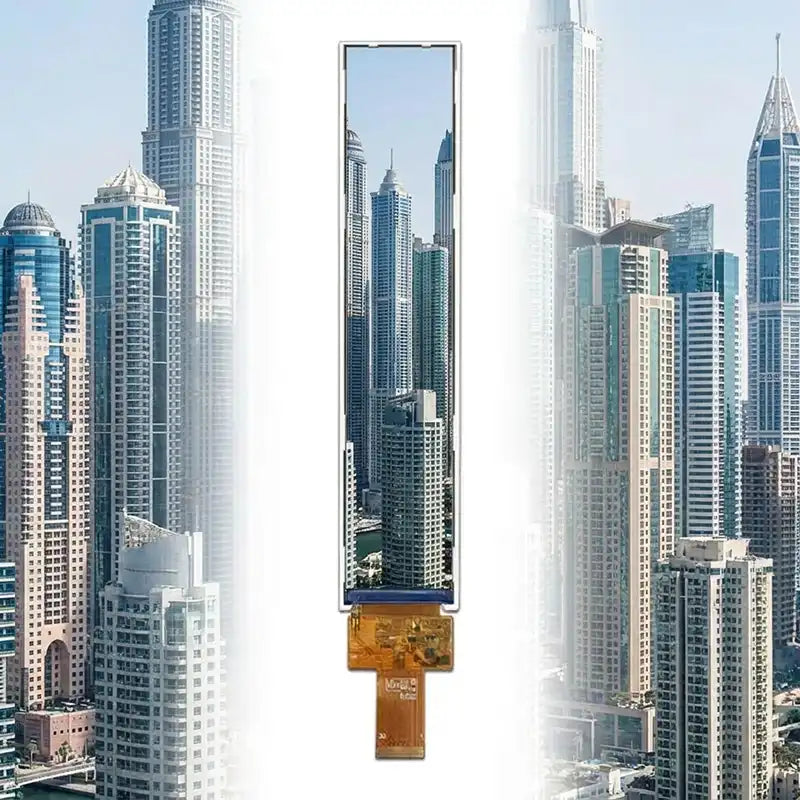

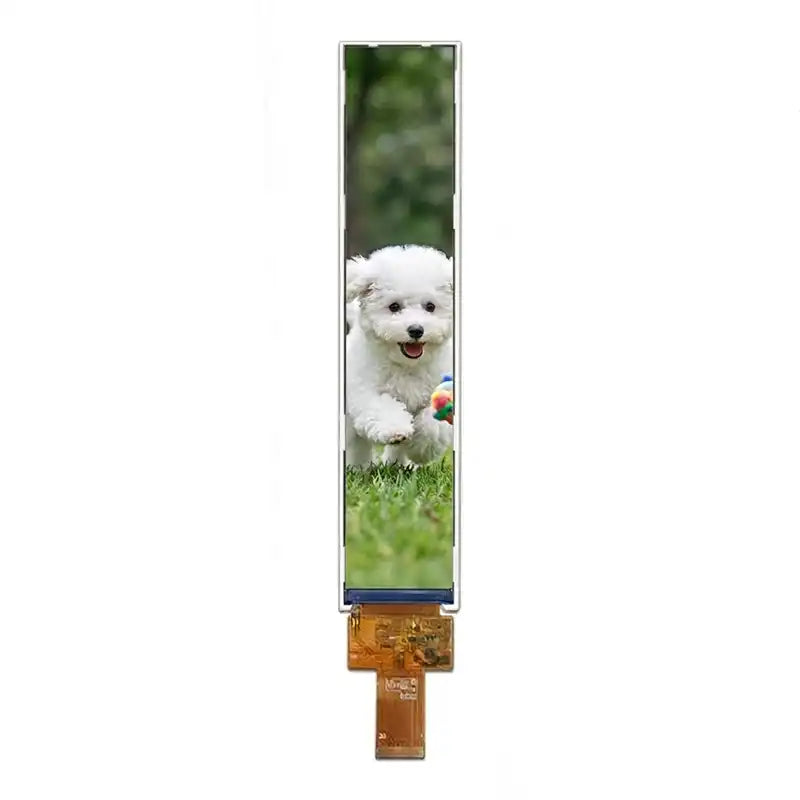

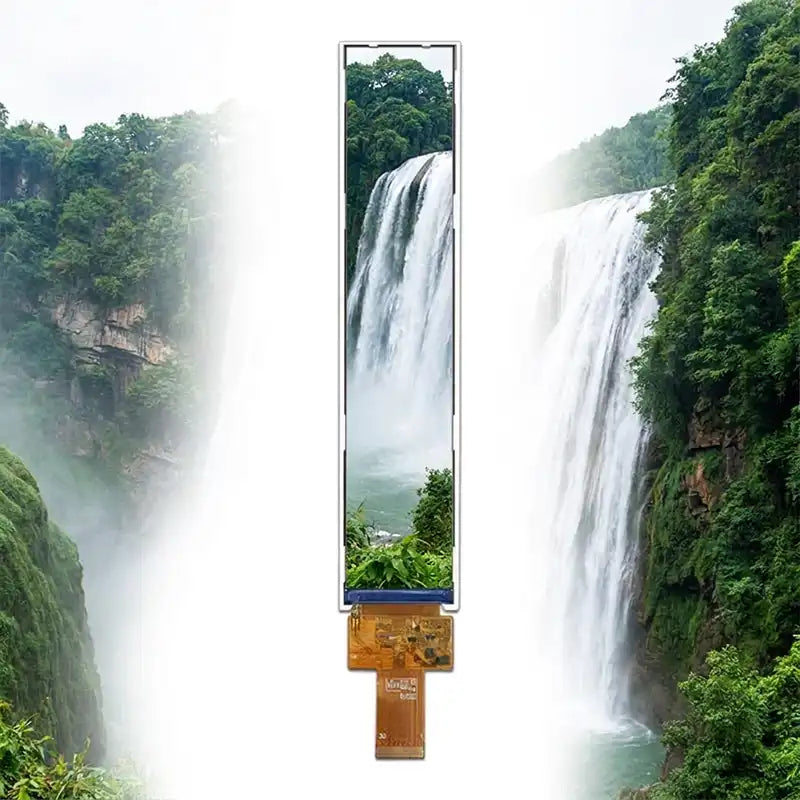

The 7 inch Bar type LCD Module is a portrait TFT display designed for products that require a narrow and elongated screen structure. Compared with conventional display formats, this Bar type LCD Module is suitable for smart displays, embedded systems, and custom electronic devices where vertical content presentation and installation efficiency are important.
With a 280 × 1424 resolution, 500 nits brightness, and 30pin MIPI interface, this Bar type LCD Module supports clear display performance and practical system integration. The module is driven by the OTA7290B driver IC and is suitable for applications requiring a stable long strip LCD display solution.
For customers looking for a compact bar type LCD module, bar type TFT LCD, or long strip LCD display, this 7 inch model is a practical option for product development and embedded UI design.
Quick Highlights
- 7 inch Bar type LCD Module with slim portrait structure
- 280 × 1424 resolution for clear vertical content display
- 500 nits brightness for stable indoor viewing
- 30pin MIPI interface for embedded integration
- OTA7290B driver IC for reliable display driving performance
- Suitable for smart displays and embedded device applications
Key Features of 7 Inch Bar type LCD Module
Bar Type Structure
This Bar type LCD Module uses a slim long strip design, making it suitable for narrow installation spaces and vertical UI layouts.
280 × 1424 Resolution
Supports clear text, icon, and interface display performance for embedded products and compact smart display systems.
500 nits Brightness
Provides stable indoor readability for products requiring clear and consistent display performance.
30pin MIPI Interface
Provides a practical interface solution for embedded system design and efficient hardware integration.
OTA7290B Driver IC
Offers stable driving support for this Bar type LCD Module in smart display and embedded device applications.
Narrow and Long Design
Specially suited for narrow and long LCD product designs that require a distinctive portrait display layout.
Product Overview
The 7 inch Bar type LCD Module is designed for applications that need a compact display with a narrow portrait format rather than a standard screen ratio. This makes it a suitable choice for smart displays, embedded devices, and custom electronic products with limited front panel space.
Its 280 × 1424 resolution allows clear vertical content presentation, while the 500 nits brightness supports stable readability in indoor use scenarios. With a 30pin MIPI interface and OTA7290B driver IC, this Bar type LCD Module helps simplify system integration for compact display solutions.
For product developers and OEM customers, this model is a practical choice when a long strip LCD display is required to improve interface layout, optimize installation structure, or support a more distinctive product appearance.
Typical Applications
Technical Specifications
| Product Name | 7 Inch Bar type LCD Module |
|---|---|
| Display Size | 7 Inch |
| Orientation | Portrait |
| Resolution | 280 × 1424 |
| Brightness | 500 nits |
| Interface | 30pin / MIPI |
| Driver IC | OTA7290B |
| Active Area | 33.6 × 170.88 mm |
| Outline Dimensions | 38.2 × 181.47 × 3.45 mm |
| Main Application | Smart Displays, Embedded Devices |
Optional Matching Driver Board
| Option | Driver Board Type |
|---|---|
| 1 | HDMI driver board |
| 2 | Linux driver board |
Selection Notes
- Narrow and long structure: this model is suitable for LCD products requiring a slim and elongated portrait display design.
- Portrait layout: suitable for vertical user interface content and long strip visual presentation.
- Stable brightness: 500 nits supports clear indoor viewing performance.
- Integration support: 30pin MIPI interface helps support practical embedded system connection requirements.
- Application target: recommended for smart displays, embedded devices, and custom electronic interface projects.
Integration Support
This 7 inch Bar type LCD Module is suitable for customers developing compact embedded products that require a narrow portrait display. The combination of 280 × 1424 resolution, 30pin MIPI interface, and OTA7290B driver IC provides a practical foundation for system design and product integration.
- Suitable for compact embedded control projects
- Supports smart display integration
- Suitable for custom UI development
- Helpful for long strip layout product design
- Applicable to OEM / ODM custom display projects
Bar type LCD Module FAQ
1. Is this a Bar type LCD Module?
2. What resolution does this Bar type LCD Module support?
3. What interface does this 7 inch Bar type LCD Module use?
4. What driver IC is used in this Bar type LCD Module?
5. What applications is this Bar type LCD Module suitable for?
6. Why choose this 7 inch Bar type LCD Module?
Need a 7 Inch Bar type LCD Module for Your Project?
Contact us for samples, detailed specifications, interface support, and OEM / ODM service for this compact Bar type LCD Module.
