Access the complete range of BROWNOPTO TFT LCD and OLED display module datasheets to explore detailed specifications, mechanical drawings, and interface options. Our downloadable product guides are designed to help engineers, designers, and procurement teams select and integrate the right display solution for their applications.

TFT LCD Display Datasheets (0.96" – 32")

Our TFT LCD datasheets provide in-depth technical data for sizes ranging from compact 0.96-inch modules to large 32-inch commercial displays. Each document includes resolution, brightness, viewing angles, interface details, and environmental specifications.

  • TFT LCD Modules: 0.96" – 15.6", resolutions from 80×160 to Full HD, interfaces including RGB, LVDS, MIPI DSI, HDMI.

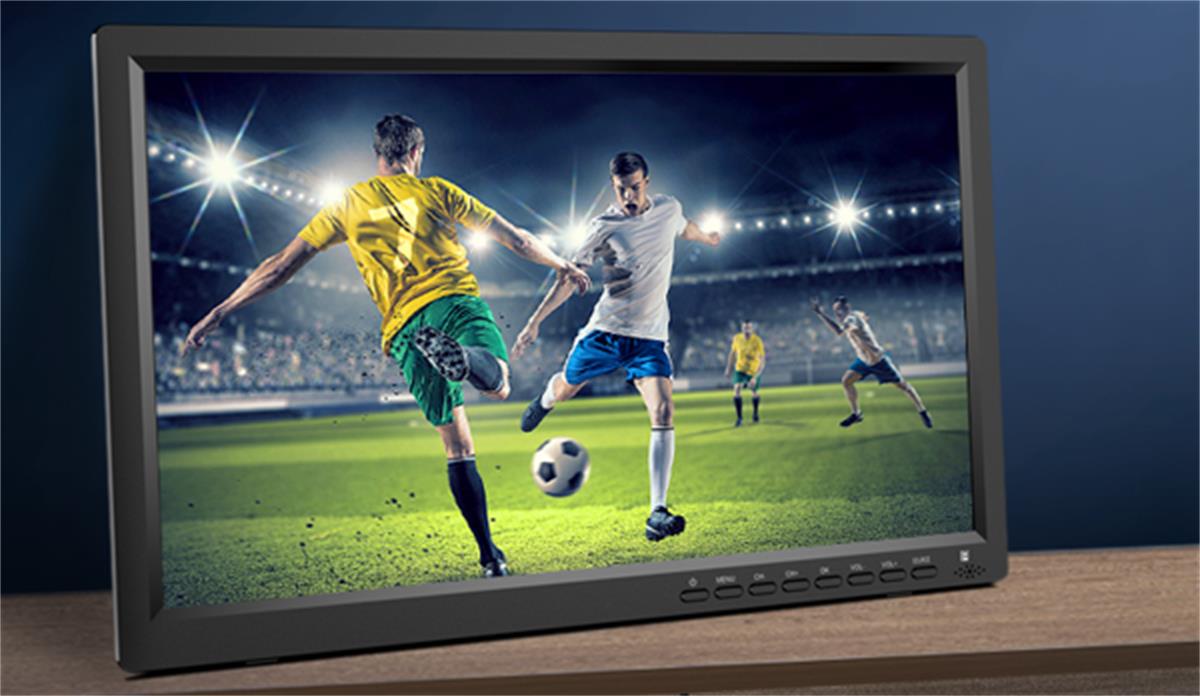

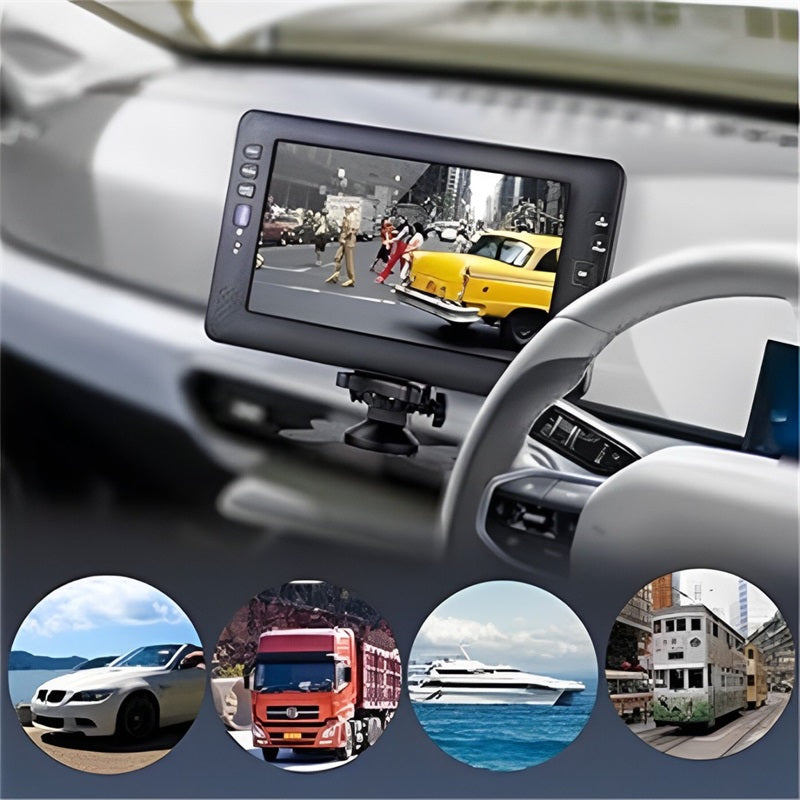

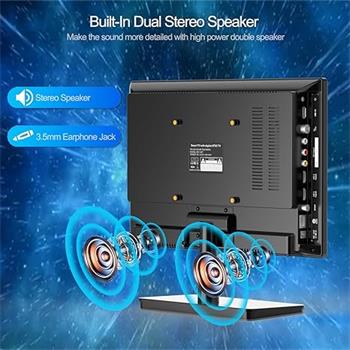

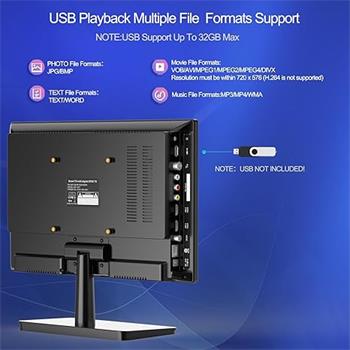

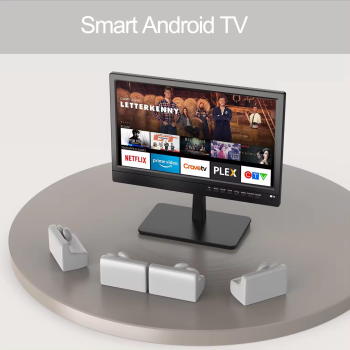

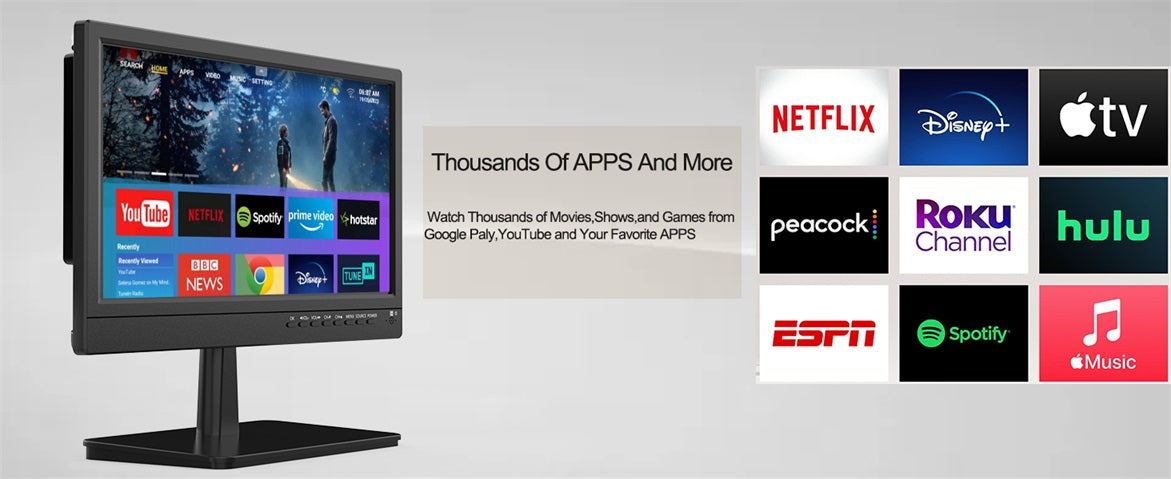

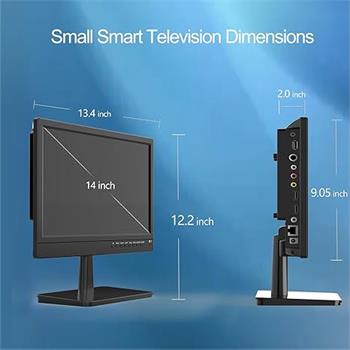

  • Portable TFT TVs: 7" – 15.6", high brightness, built-in power options, multiple video inputs.
  • Commercial TFT Displays: 18.5" – 32", long-life LED backlight, wide temperature range, 24/7 operation support.

OLED Display Module Datasheets (1.0" – 8.0")

Our OLED display datasheets cover small to large modules, with details on pixel layouts, contrast ratio, driver ICs, and mechanical drawings. Ideal for applications ranging from wearables to high-end instrumentation.

  • Small OLED Modules: 1.0" – 1.54", SPI/I²C interfaces, ultra-low power consumption.
  • Mid-Size OLED Panels: 2.4" – 4.3", high brightness, wide viewing angles, SPI/MIPI DSI interfaces.
  • Large OLED Displays: 5.0" – 8.0", capacitive touch options, flexible and transparent OLED availability.

Technical Specifications & Product Guides

Each datasheet includes:

  • Mechanical dimensions and CAD drawings
  • Electrical characteristics and pin definitions
  • Interface protocols (SPI, I²C, RGB, LVDS, MIPI DSI, HDMI)
  • Operating temperature ranges and reliability data
  • Backlight specifications and optical performance charts

We also provide product integration guides to ensure seamless hardware and firmware compatibility.

Need a custom solution? Contact our engineering team for tailored datasheets, custom display designs, or OEM/ODM support.
