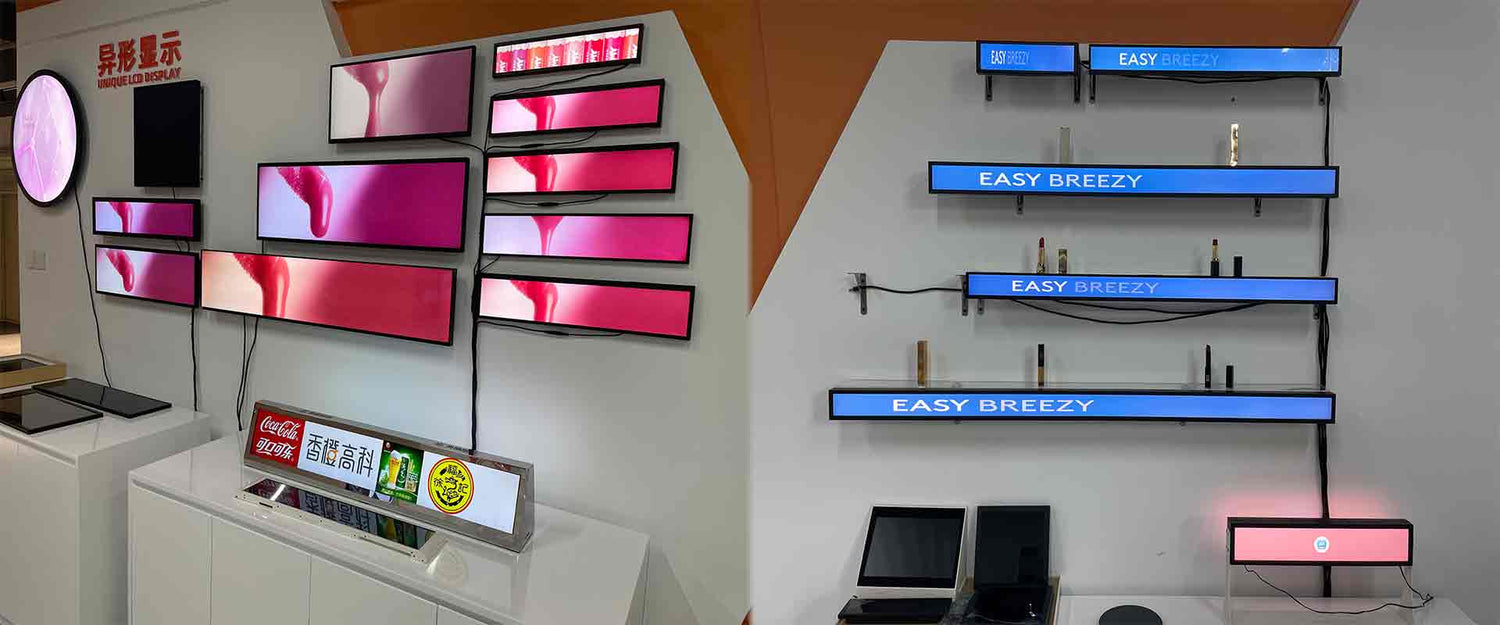

Bar LCD Display Modules: Key Parameters Engineers Must Know in 2026

The digital signage landscape is undergoing a radical transformation. As we approach 2026, the era of forcing content into standard 16:9 rectangles is ending. The future belongs to adaptability, and leading this charge is the Bar LCD Display. These innovative, elongated screens are unlocking new real estate for information and advertising in spaces previously deemed unusable.

Whether you are an engineer designing a smart retail shelving system or a procurement manager sourcing for a public transport upgrade, understanding the intricacies of a Stretched Bar LCD Display is non-negotiable. This comprehensive guide serves as your ultimate technical resource, covering everything from terminology and manufacturing technologies to industrial-grade specifications and future trends.

1. Defining the Technology: Terminology & Synonyms

One of the first hurdles in sourcing these modules is the lack of standardized naming conventions. In the global market, a Stretched LCD Display can be referred to by over a dozen different names. For engineers and buyers, recognizing these high-relevance synonyms is crucial to ensure you are finding the correct product specifications.

A Bar LCD Display is defined by its aspect ratio, which is significantly wider than it is tall (e.g., 16:3, 32:9). Here is a breakdown of the industry terminology you will encounter in 2026:

• Ultra-Wide LCD Display: This term emphasizes the panoramic width of the screen, often used in gaming or immersive advertising contexts.
• Wide Bar LCD Screen: A descriptive term often used in general commercial listings.
• Elongated LCD Display: This highlights the physical stretching of the pixels or the glass substrate.
• Narrow Bar LCD Display: Often used to describe smaller height displays (e.g., 2 inches or 4 inches high) used in tight vertical spaces like shelf edges.
• Ultra-Long LCD Screen: Similar to "Ultra-Wide," but focuses on the length, common in transportation route maps.
• Wide Aspect Ratio LCD: The technical engineering term referring to the mathematical ratio of pixels.
• Non-Standard LCD Display: A broad category that differentiates these screens from standard TV or monitor sizes.

2. Manufacturing Technology: Native vs. Cut Panels

When selecting a Bar LCD Module, understanding the manufacturing process is vital for predicting reliability. There are two primary methods for creating these screens:

Method A: Cut Panel Technology (Resizing)

Historically, most Stretched Bar LCD Display units were made by physically cutting a standard 16:9 panel glass. Engineers use precision laser cutting machines to slice the glass, seal the liquid crystal, and re-bond the circuits.

Pros: Lower cost for small batches; wide variety of sizes available based on standard mother glass.
Cons: If not done correctly, edge sealing issues can occur over time. However, by 2026, cutting technology has matured significantly, making Custom Bar LCD Display cutting highly reliable.

Method B: Native Photomask (Original Manufacturing)

For high-volume orders, manufacturers create a specific photomask to produce the glass in the bar shape directly from the factory line. This is often seen in standard sizes like the Shelf Edge LCD Display used in supermarkets.

Pros: Higher stability; no micro-cracks from cutting; better yield rates for mass production.
Cons: Extremely high initial tooling cost; limited to standard sizes.

3. Critical Technical Parameters for 2026

To ensure your Bar LCD Display performs in real-world conditions, you must pay attention to the following specifications.

Brightness (Nits)

Standard monitors are usually 250-300 nits. However, a Commercial Bar LCD Display often needs to compete with bright retail lighting or direct sunlight.

• Indoor Retail: Look for 500-700 nits.
• Semi-Outdoor / Window Facing: Requires High Brightness, typically 1000-2500 nits.

Resolution & Aspect Ratio

Because these are Non-Standard LCD Display units, the resolution will look unique (e.g., 1920x360 or 3840x600). Your content management system (CMS) must be able to handle these custom resolutions without stretching or distorting the image.

Viewing Angle

For a Shelf Edge LCD Display mounted low on a shelf, the top-down viewing angle is critical. Always specify IPS (In-Plane Switching) panels to ensure 178°/178° viewing angles so colors do not wash out when customers look down at the price tag.

4. Application Scenarios: Where Form Meets Function

The unique form factor of the Stretched LCD Display allows it to slide into spaces that were previously static. Here are the dominant application scenarios for 2026, designed to improve your long-tail keyword ranking:

Retail Revolution

Shelf Edge LCD Display and Digital Shelf Display technologies are replacing paper labels. These allow retailers to change prices instantly across thousands of stores. A Retail Bar LCD Display can also play high-definition video ads right next to the product, triggering impulse buys.

Digital Signage & Branding

In shopping malls, the Advertising Bar LCD Screen is used on headers, pillars, and narrow architectural gaps. A Digital Signage Bar LCD creates a seamless video strip that can wrap around corners or line the top of a store entrance.

Transportation Hubs

Subways and buses utilize the Transportation Information Display. These Ultra-Long LCD Screen units are perfect for displaying dynamic route maps that update as the vehicle moves. They are also widely used as Elevator Bar LCD Display units, providing news and floor info in the header of the elevator cab.

Food & Beverage

Quick-service restaurants are adopting the Menu Board Bar LCD. Unlike large TVs that take up vertical wall space, these bar displays can be mounted directly above the food counter, displaying prices and promotions in a sleek, linear format.

5. B2B & Industrial Purchasing Guide

Sourcing for industrial applications requires a different checklist than commercial retail. If you are in the B2B sector, focus on these high-conversion procurement terms.

Industrial Grade Reliability

An Industrial Bar LCD Display is built to withstand harsh environments. Unlike consumer electronics, these must operate 24/7 without "burn-in" or blackening (isotropic failure). Key features include:

• Wide Temperature Range: Operating from -20°C to +70°C.
• Conformal Coating: Protecting the PCB from dust and humidity.
• Vibration Resistance: Essential for transportation applications.

Customization & OEM Services

The market for OEM Bar LCD Display services is booming. Because every project is unique, you may need a Custom Bar LCD Display. Manufacturers can customize:

• The physical size (cutting the glass to the millimeter).
• The brightness (adding LED backlights).
• The housing (metal, open frame, or plastic).

6. Smart Integration: Android & Touch Capabilities

In 2026, a display is rarely just a display; it is an intelligent terminal.

Android Bar LCD Display

Integrating an operating system directly into the monitor is a major trend. An Android Bar LCD Display features a built-in motherboard (SOC) running Android. This allows for Wi-Fi/4G connectivity, enabling remote content updates via the cloud without needing an external media player box. This "All-in-One" approach reduces cabling and installation complexity.

Touch Bar LCD Display

Adding interactivity transforms a passive sign into a tool. A Touch Bar LCD Display typically uses PCAP (Projected Capacitive) technology, similar to a smartphone. This is popular for Industrial Bar LCD Display controls on machinery or interactive wayfinding in retail.

7. Installation & Thermal Management

Due to the compact nature of a Bar LCD Module, heat dissipation can be a challenge, especially for high-brightness models.

When installing a Wide Aspect Ratio LCD into an enclosure, engineers must ensure adequate airflow. For Outdoor Bar LCD Display units, active cooling (fans) or aluminum heat sinks integrated into the chassis are often required to prevent the liquid crystals from overheating and turning black.
