1) Overview & Core Value

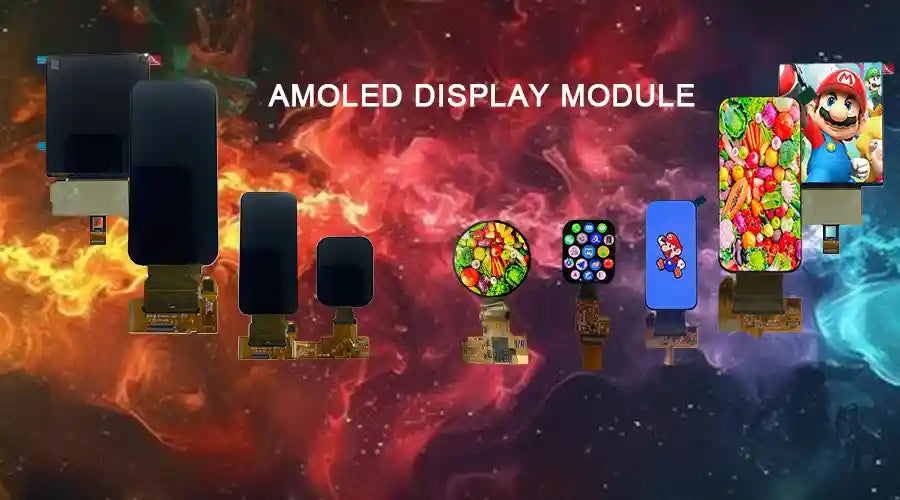

An amoled display module is a complete display subsystem integrating a TFT backplane, OLED emission stack, optical layers and encapsulation, a display driver IC (DDIC) or timing controller, and an FPC interface. Unlike LCD, AMOLED is self-emissive: each subpixel can turn fully on or fully off, delivering near-infinite contrast, fast response, thin modules, and flexible form factors such as curved or foldable designs.
2) Structure & Working Principles
TFT Backplane (LTPS / IGZO / LTPO)
- LTPS: High mobility for high PPI and brightness drive.
- IGZO: Low leakage and excellent uniformity, supports low refresh and standby power.
- LTPO: Wide-range VRR (1–120 / 144 Hz) reduces dynamic and idle power.
Emission Stack & Subpixel Matrix
Layouts vary by product goals. Below is a schematic comparison between PenTile and RGB Stripe.
3) Key Performance Dimensions
- Brightness & APL: Peak vs. full-field sustained brightness; ABL behavior.
- Dimming: High-frequency PWM vs. DC or hybrid dimming.
- VRR & Touch: 1–120 / 144 Hz LTPO plus high touch sampling.
- Color: DCI-P3 coverage, white point stability across APL.
Brightness Sustain Behavior
PWM Frequency Behavior
4) Applications & Design Notes
Applications:
Mobile devices, wearables, automotive displays, and high-end consumer electronics.
Design Notes:
Optimize for dark UI to leverage per-pixel lighting and improve power efficiency. Implement pixel refresh or motion to mitigate static image persistence. Ensure EMI protection and signal integrity in layout design.
5) Selection & Spec Checklist
| Category | What to Verify | Evidence or Notes |
|---|---|---|
| Resolution & Matrix | PPI, subpixel layout (PenTile vs. RGB stripe), viewing distance fit. | Macro shots, MTF, text rendering samples. |
| Brightness & Thermal | Peak nits, full-field sustain, ABL curve at high APL. | 10% / 100% windows, thermal camera logs. |
| Color | Gamut coverage, ΔE, white point drift vs. APL or brightness. | Factory LUTs, spectro data, multi-APL sweeps. |
| Dimming | PWM frequency curve, duty shape, DC or hybrid modes. | Scope plus photodiode captures; user toggles. |
| Lifespan | Blue pixel decay, logo protection, compensation cadence. | Warranty, stress tests. |
| VRR / Touch | VRR range, touch rate, end-to-end latency. | Latency tests, stutter checks. |
| Optics | Reflectance, haze, polarizer, AR or AG effects. | Outdoor ACR, reflectance percentage. |
| Reliability | Damp heat, thermal shock, drop or press, folding cycles. | Reports with limits. |
| I/O & Power | MIPI DSI or eDP version, power rails, init scripts. | DDIC datasheet, timing charts. |
| Supply | Uniformity, screening, lead time, lifecycle. | Outgoing QA, roadmap. |
6) Integration & Validation Flow
- Get spec, EVK, driver, and init data; verify power sequences.
- Use standard patterns to test brightness, color, power, and PWM.
- Define display strategies for indoor, outdoor, night, and AOD scenarios.
Aging and Compensation
7) Power & Thermal Design
- Content-adaptive: Dark mode, controlled white area, low-APL iconography.
- Refresh-adaptive: 1–10 Hz static, 120 / 144 Hz motion; avoid oscillatory VRR.
- Driver efficiency: Optimize DDIC or DCDC; reduce bus toggles; sync touch and frame rate.
- Heat path: Midframe plus graphite or VC; consider fold area resistance and fatigue.
8) Display Quality Optimization
- Near-black: Gamma and dither tuning for detail vs. noise.
- HDR: Peak area, tone mapping, sustain policy.
- Text: AA aligned with subpixel matrix.
- Reflection: Low-reflect AR plus outdoor ACR policy.
Gamma and Near-Black Handling
9) Calibration & Quality Control
- Instrumentation: Spectrometer or colorimeter with OLED correction matrices.
- Standards: SDR sRGB or BT.709 (Gamma 2.2–2.4); HDR with PQ (ST 2084).
- Consistency: Uniformity checks; strict banding, CCT drift, and defect limits.
10) Risks, Health & Compliance
- Flicker & comfort: Disclose PWM frequency; offer high-frequency or hybrid modes.
- Blue light: Certifications plus real night modes with CCT and luminance control.
- Regulations: EMC, environmental, and reliability requirements for automotive, medical, and industrial use.
11) Procurement & Collaboration
- Supplier: Stable supply, mature LTPO, proven compensation.
- Support: EVK, PWM scopes, thermal curves, APL–luminance–power models.
- Contracts: Yield, warranty, color and uniformity KPIs, burn-in liability, upgrades.
FAQ
What is an amoled display module?
A self-emissive subsystem: TFT backplane, OLED stack, optics and encapsulation, DDIC or timing, and interface.
How does LTPO save power?
Wide-range VRR, including down to 1–10 Hz, reduces both motion-related and idle power.
Is high-frequency PWM necessary?
It helps flicker-sensitive users in low light; 960 Hz or higher, or hybrid DC-like modes, are commonly preferred.
How to minimize burn-in risk?
Use pixel shifting, UI rotation or fading, dark themes, minimize static bright areas, and apply logo protection.
