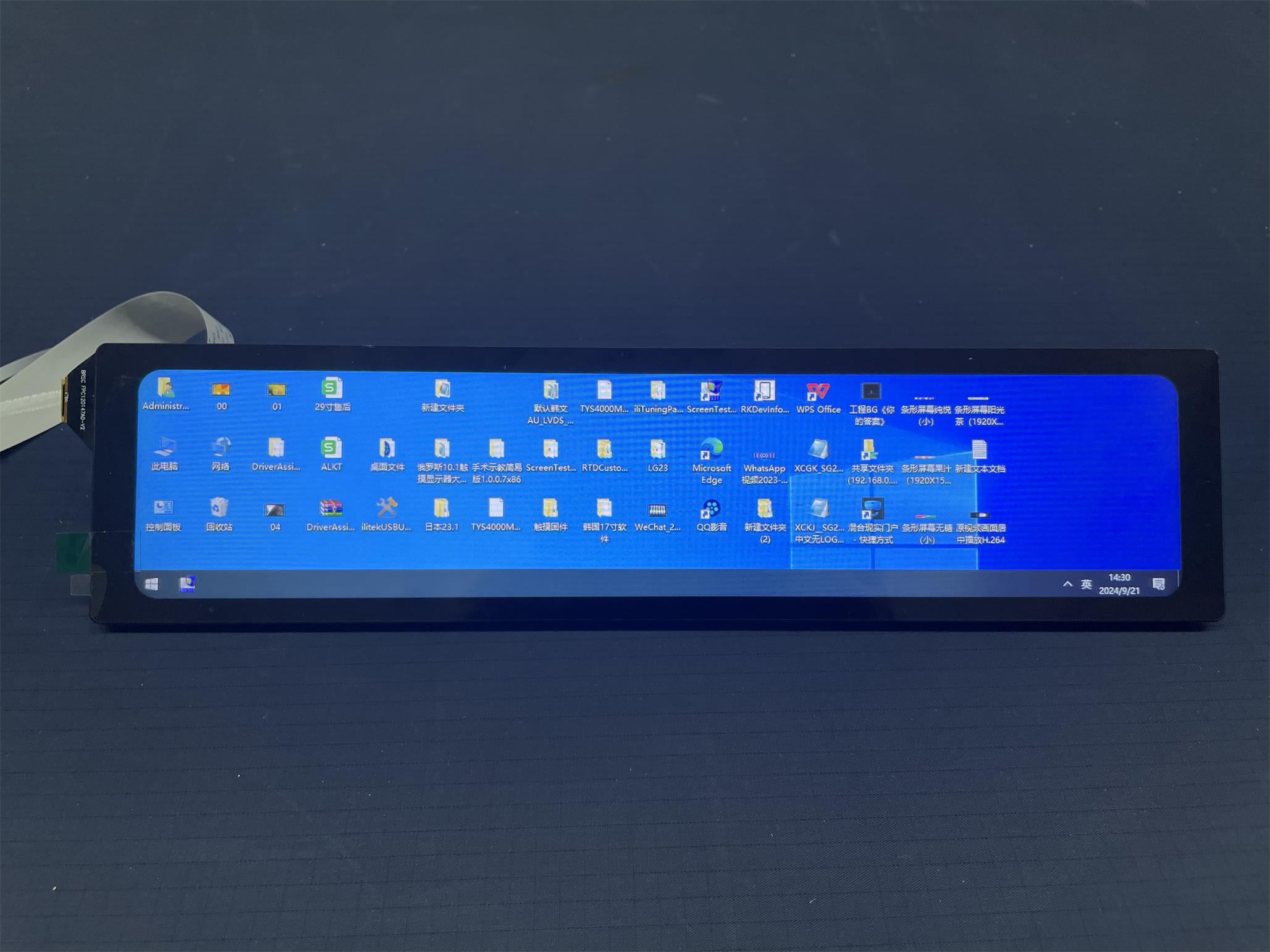

11.9 INCH TFT LCD Module – HDMI Input
High-resolution 11.9-inch IPS TFT LCD display module with MIPI interface, ideal for industrial, medical, and embedded applications. Full viewing angle, high brightness, and reliable performance.
Key Features
🖥️ 11.9" IPS Display
Advanced In-Plane Switching (IPS) technology for wide viewing angles and accurate color reproduction.
🔍 1480×320 High Resolution
Ultra-wide aspect ratio (4.625:1) for dashboard, HMI, and control panel applications.
⚡ MIPI DSI Interface
4-lane MIPI interface for high-speed data transmission and easy integration with modern SoCs.
☀️ 800 cd/m² High Brightness
Excellent visibility even in bright environments. Glare surface treatment for clarity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Panel Size | 11.9 inch (diagonal) |
| Resolution | 320(H) × 1480(V) pixels |
| Active Area | 57.984 mm (H) × 268.176 mm (V) |
| Pixel Pitch | 0.1812 mm × 0.1812 mm (RGB stripe) |
| Display Mode | Transmission, Normally Black |
| Viewing Direction | Full viewing (IPS) |
| Interface | 4-Lane MIPI DSI |
| Backlight | White LED, 18.6V typ, 180mA typ |
| Contrast Ratio | 900:1 (typ) |
| Luminance | 800 cd/m² (center, typ) |
| Response Time | 30 ms (typ), Rising + Falling |
| Viewing Angle | 85°/85° (H/V), CR > 10 |
| Operating Temp. | -20°C to +70°C |
| Storage Temp. | -30°C to +80°C |
| Outline Dimensions | 65.00 mm (W) × 282.00 mm (H) × 4.50 mm (D) |
| Weight | 120g |

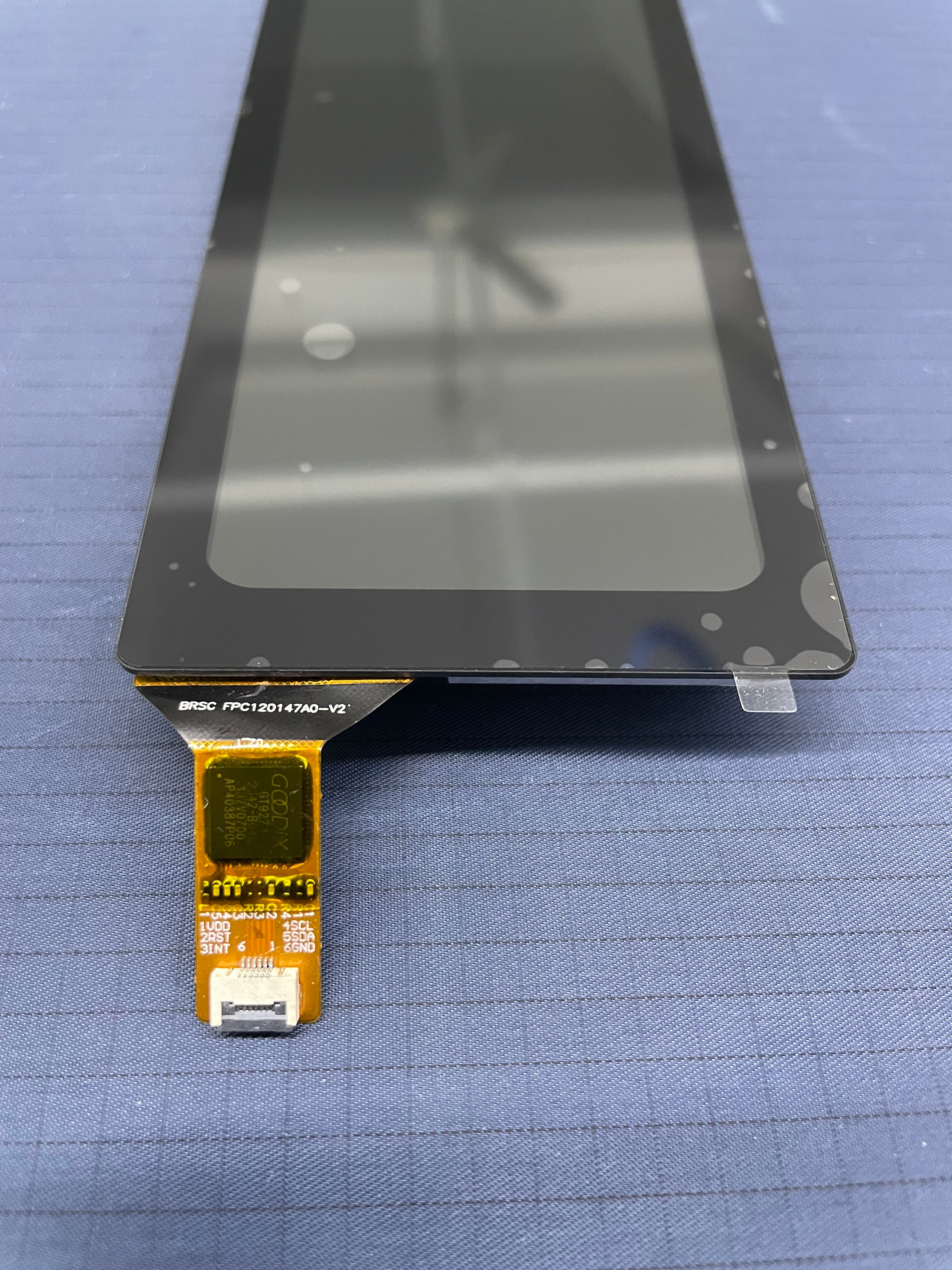

Interface & Pinout (FPC Connector)
40-pin FPC connector with MIPI DSI, power, and control signals.
- MIPI Data/Clock: D0P/N, D1P/N, D2P/N, D3P/N, CLKP/N (4-lane)
- Power: VDD (3.3V), IOVCC (1.8V–3.3V), GND
- Control: RSTB (Reset), STBYB (Standby)
- Backlight: A (Anode), K (Cathode), 18.6V / 180mA typical
- NC: Pins 20, 21, 22, 23, 26, 31, 34, 40 (No connection)
Typical Applications
- Industrial HMI: Control panels, automation systems
- Medical Devices: Patient monitors, diagnostic equipment
- POS & Kiosk: Payment terminals, self-service machines
- Automotive: Dashboard displays, rear-seat entertainment
- IoT & Embedded: Smart home hubs, robotics
Reliability & Environmental Compliance
- ✅ Operating Temperature: -20°C to +70°C
- ✅ Storage Temperature: -30°C to +80°C
- ✅ High/Low Temperature & Humidity Testing (IEC60068-2)
- ✅ Thermal Shock: -30°C ↔ 80°C, 72 cycles
- ✅ Vibration & Shock Resistant (Non-operating)
- ✅ ESD Protection: ±4kV Contact, ±8kV Air (IEC 61000-4-2)
- ✅ RoHS Compliant – No hazardous substances
Frequently Asked Questions
- What is the interface type?
- The module uses a 4-lane MIPI DSI interface with a 40-pin FPC connector.
- Is the backlight adjustable?
- Yes, brightness can be controlled via PWM or current regulation on the LED pins.
- What is the warranty period?
- 12 months from shipment date under normal use and storage conditions.
- Can I get a sample?
- Yes, samples are available for qualified customers. Contact sales for details.
Ready to Integrate This High-Performance Display?
Ideal for industrial, medical, and embedded systems.
View All LCD Modules
Optional HDMI Driver Board – Use with BR11940RB-A1
Want to connect your 11.9" LCD module directly to HDMI sources like Raspberry Pi, PC, camera, or gaming console? Add our HDMI-to-MIPI Driver Board for plug-and-play compatibility.
Driver Board Features
- ✅ HDMI Input: Supports 1080p@60Hz, compatible with most HDMI sources
- ✅ Auto-Detect MIPI Output: Pre-configured for BR11940RB-A1 (320×1480 resolution)
- ✅ Power Input: 5V/2A via USB-C or DC jack
- ✅ On-Screen Display (OSD): Adjust brightness, contrast, rotation via buttons
- ✅ Rotation Support: 0°, 90°, 180°, 270° (perfect for vertical displays)
- ✅ Plug-and-Play: No drivers or software setup required
- ✅ Mounting Holes: Compatible with standard enclosures
Supported Devices
Raspberry Pi (all models), Windows/Linux PC, NVIDIA Jetson, Arduino, DSLR cameras, drones, gaming consoles (switch in handheld mode), and more.
