1.50 INCH AMOLED Display Visual Inspection Standards | Brownopto
High-Performance AMOLED Display Solutions

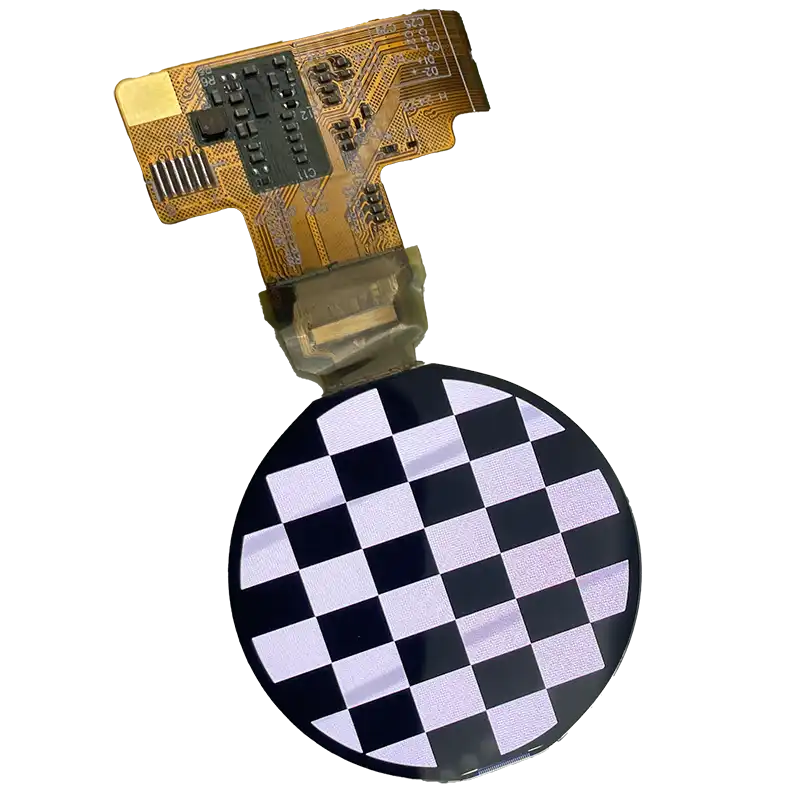

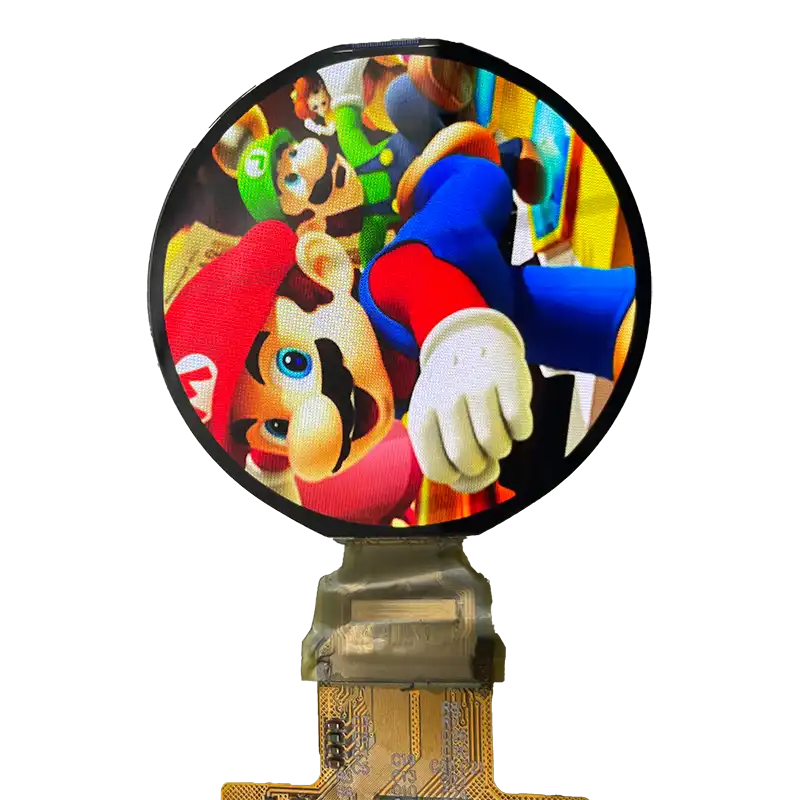

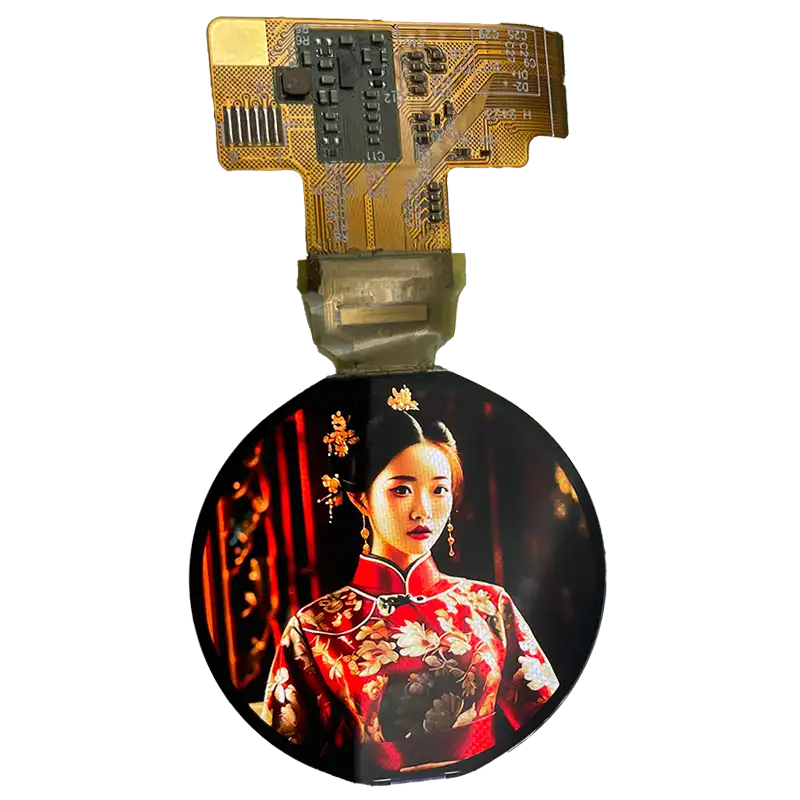

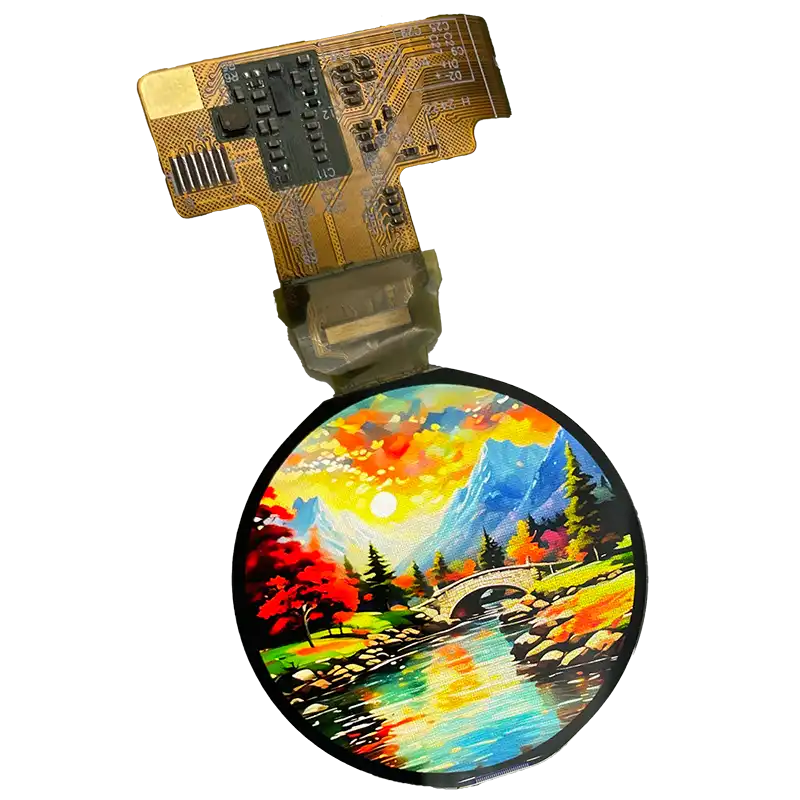

The 1.50-inch AMOLED module from Shenzhen Brownopto Technology Co., LTD is a high-resolution, compact display solution ideal for smartwatches, wearables, and portable devices. Featuring a sharp 480 × 480 resolution, LTPS backplane technology, and support for MIPI/QSPI/MSPI interfaces, this module delivers vibrant colors, deep blacks, and excellent power efficiency.
Key Features
- Display Size: 1.50 inch diagonal
- Resolution: 480 × 480 pixels
- Active Area: 37.7568 × 37.7568 mm
- Technology: AMOLED with LTPS TFT backplane
- Interface: MIPI DSI / QSPI / MSPI (configurable)
- Driver IC: ST7802
- Touch Panel: Integrated (CST820B Touch IC)
- Display Colors: 16.7M (24-bit RGB)
- Contrast Ratio: >200,000:1 (typ.)
- Viewing Angle: 85° all directions (CR ≥10)
- Luminance: 600 cd/m² (typ.)
- Response Time: ≤3 ms (rise & fall)
- Module Dimensions: 40.19 × 40.15 × 0.2 mm
- Environmental Compliance: RoHS compliant
Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 1.50 inch |
| Resolution | 480 × 480 pixels |
| Active Area | 37.7568 × 37.7568 mm |
| Pixel Pitch | 78.66 μm |
| Technology | AMOLED (LTPS TFT) |
| Color Depth | 16.7 million colors |
| Interface | MIPI DSI / QSPI / MSPI |
| Driver IC | ST7802 |
| Touch Controller | CST820B (integrated) |
| Contrast Ratio | >200,000:1 (typ.) |
| Luminance | 600 cd/m² (typ.) |
| Viewing Angle | 85° all directions (CR≥10) |
| Response Time | ≤3 ms (TON + TOFF) |
| Uniformity | ≥85% (9-point measurement) |
| NTSC Coverage | ≥95% |
| Gamma | 2.2 ± 0.2 |
| Module Dimensions | 40.19 × 40.15 × 0.2 mm |
| Weight | TBD |
| Operating Voltage | VCI_EN=3.3V, IOVCC=1.8V, VBAT=2.9~5.5V |
| Touch Voltage | TP_VCC = 2.8~3.6V |
| Power Consumption | TBD (Full white @ 60Hz) |
| Compliance | RoHS |
Application Scenarios
The 1.50-inch AMOLED module is widely used across industries thanks to its compact size, sharp visuals, and power efficiency:
- Wearables: Smartwatches, fitness trackers, health monitors
- IoT Devices: Smart home hubs, portable sensors
- Medical Equipment: Patient monitoring systems, diagnostic tools
- Consumer Electronics: Smart cameras, audio players, handheld gadgets
- Industrial Applications: HMI panels, test equipment, meters
Handling Precautions
- Avoid mechanical pressure or impact on the active area.
- Use ESD-safe tools and grounding during assembly.
- Clean only with IPA or soft dry cloth; avoid solvents.
- Do not disassemble or modify the module.
- Follow recommended power-on/off sequence in datasheet.
Resource download: specification
