1.45 INCH AMOLED Display 466x466 | MIPI for Wearables
High-Performance AMOLED Display Solutions

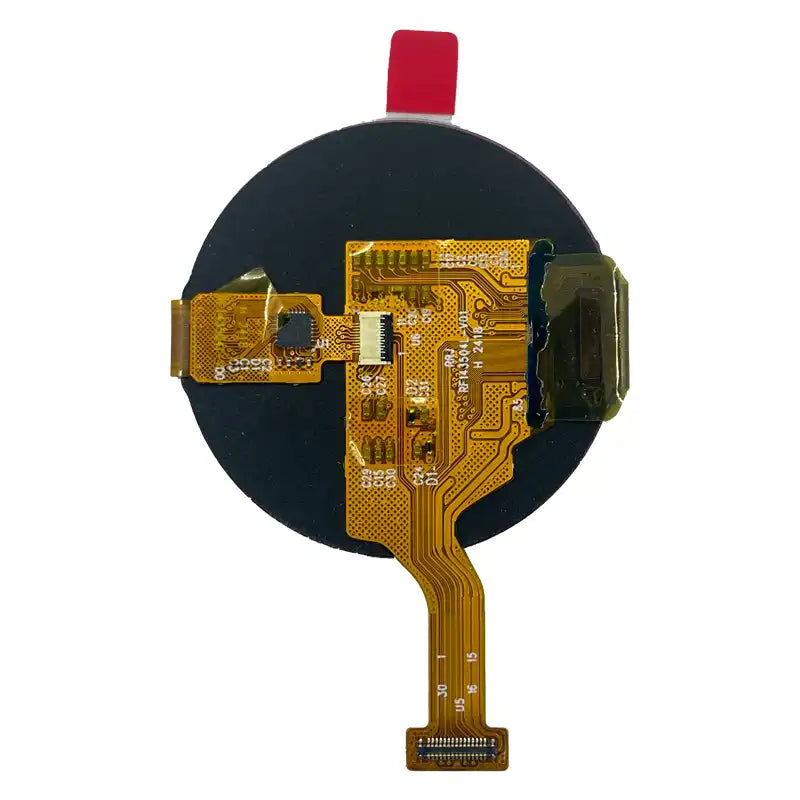

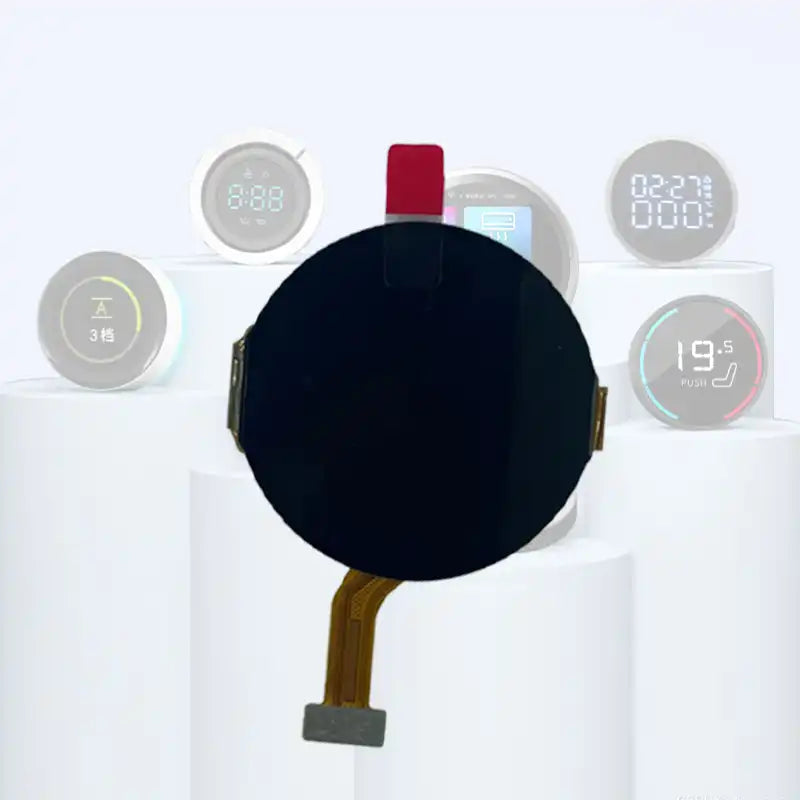

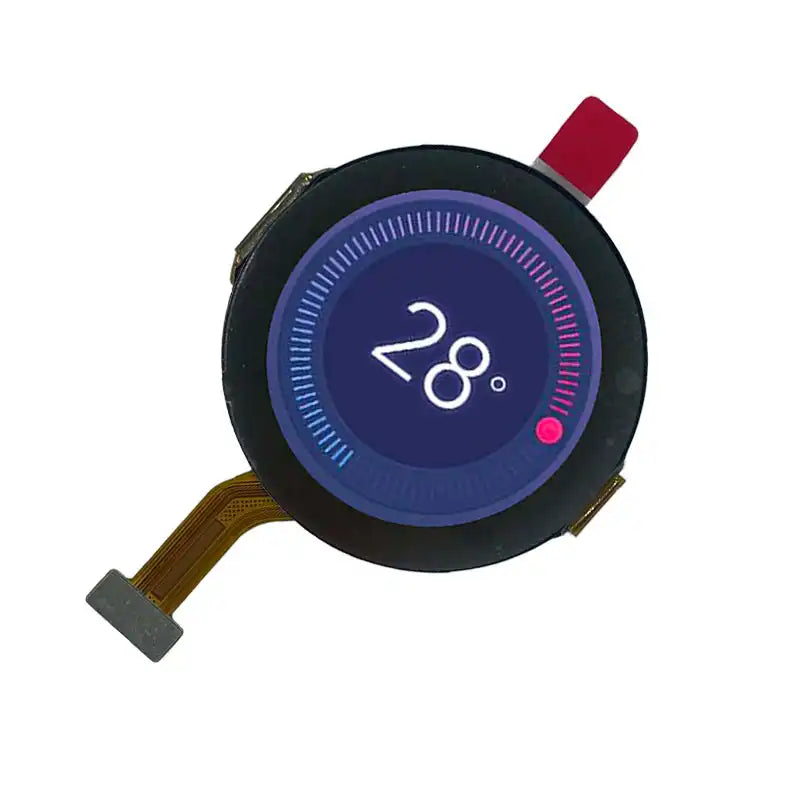

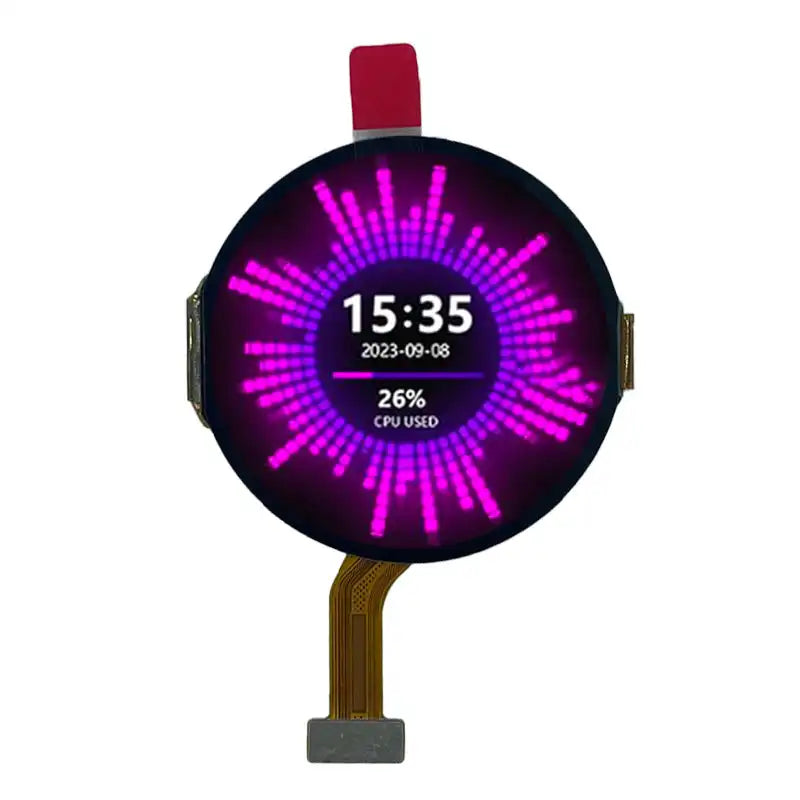

The 1.45-inch AMOLED module (Model: BR145010-A1) from Shenzhen Brownopto Technology Co., LTD is a high-resolution, compact display solution engineered for next-generation wearables, healthcare devices, and IoT applications. Featuring a sharp 466 × 466 resolution, advanced LTPS backplane technology, and a MIPI 1-Lane interface, this module delivers vibrant colors, deep blacks, ultra-fast response, and excellent power efficiency in a small footprint.
Key Specifications
| Parameter | Value |
|---|---|
| Display Size | 1.45 inch diagonal |
| Resolution | 466 × 466 pixels |
| Active Area | 32.832 × 32.832 mm |
| Technology | AMOLED with LTPS TFT backplane |
| Interface | MIPI 1 Lane |
| Driver IC | RM69330 |
| Display Colors | 16.7M (24-bit RGB) |
| Brightness | 500 cd/m² (typ.) |
| Contrast Ratio | 100,000:1 (typ.) |
| Viewing Angle | 80° (all directions, CR ≥10) |
| Response Time | ≤0.1 ms |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Environmental Compliance | RoHS 2.0 |

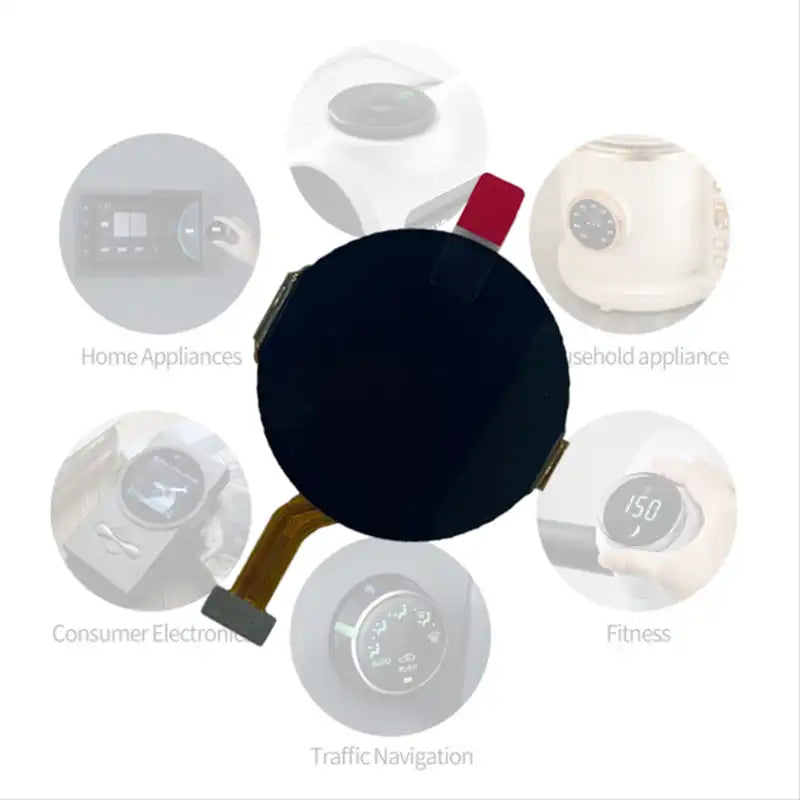

Ideal Applications
This high-resolution 1.45" AMOLED module is ideal for compact, high-performance devices requiring excellent visual clarity and energy efficiency:
- Wearables: Smartwatches, fitness trackers, medical monitoring bands
- IoT Devices: Smart home hubs, portable sensors, control panels
- Medical Equipment: Diagnostic tools, patient monitors, handheld devices
- Consumer Electronics: Smart cameras, audio players, gaming accessories
- Automotive: Digital instrument clusters, infotainment interfaces
- Industrial: HMIs, test equipment, portable meters
Handling Precautions
- Avoid mechanical shock or pressure on the display surface.
- Use ESD-safe practices during handling and assembly.
- Clean with IPA or a soft lint-free cloth only; avoid solvents.
- Do not disassemble or modify the module.
Resource download: specification
Ready to Integrate This Display?
Contact Brownopto for samples, datasheets, or custom AMOLED design support.
