Wearables (Smartwatch/Band)
Ultra-thin and low power with Always-On Display options. Good outdoor readability and rich UI animations. Recommended sizes 0.49"–1.91", typical interfaces SPI/I2C, optional touch and cover glass.
OLED Display Collection – Brownopto
Premium OLED Display Solutions
Engineered for Brilliance, Built for the Future
What Is an OLED Display?
An OLED (Organic Light-Emitting Diode) display is a self-emissive technology that uses organic compounds to generate light when an electric current is applied. Unlike traditional LCDs, OLED displays do not require a backlight, enabling perfect blacks, infinite contrast ratios, and ultra-slim designs. This makes the OLED display the preferred choice for high-end smartphones, wearables, automotive infotainment systems, and medical devices.
Why Choose Our OLED Displays?
As a leading innovator in display technology, we deliver cutting-edge OLED display panels engineered for performance, reliability, and visual excellence. Our OLEDs are manufactured using advanced LTPS and LTPO backplane technologies, ensuring high resolution, fast response times, and low power consumption.
Key Features:
- Perfect Blacks & Infinite Contrast – Each pixel emits its own light and can be turned off completely for true black.
- Compact Sizes: 1 to 8 Inches – Ideal for wearables, handhelds, and embedded systems.
- Ultra-Thin and Lightweight – No backlight needed, enabling flexible and foldable form factors.
- Wide Viewing Angles (up to 178°) – Consistent color and brightness from any angle.
- Fast Response Time (<0.1ms) – Eliminates motion blur, ideal for gaming and video.
- Energy Efficient – Uses less power when displaying dark content, extending battery life.
Technical Specifications (1–8 Inch Models)
| Parameter | Value |
|---|---|
| Size Range | 1.0” to 8.0” (Custom sizes available) |
| Technology | AMOLED / PMOLED with LTPS Backplane |
| Resolution | 96x96 to 1920x1080 (FHD) |
| Brightness | 200–1000 cd/m² (adjustable) |
| Contrast Ratio | 1,000,000:1 |
| Operating Temp. | -30°C to +70°C |
| Interface | MIPI DSI, SPI, I²C |
Ready to Integrate?
Contact us for samples, datasheets, or custom design support.
Request a QuoteFilters
12 products
2.4 INCH AMOLED Display 240x320 SPI/I²C, LTPS TFT – Brown Opto
Sale price$60.00 USD
2.0 INCH AMOLED for Wearables & IoT Devices – High Contrast
Sale price$60.00 USD
8.0 INCH WUXGA AMOLED Module 1920x1200 LTPS, LVDS & MIPI DSI
Sale price$80.00 USD
7.0 INCH WXGA AMOLED Module 1280x800 LTPS TFT, LVDS Interface
Sale price$75.00 USD

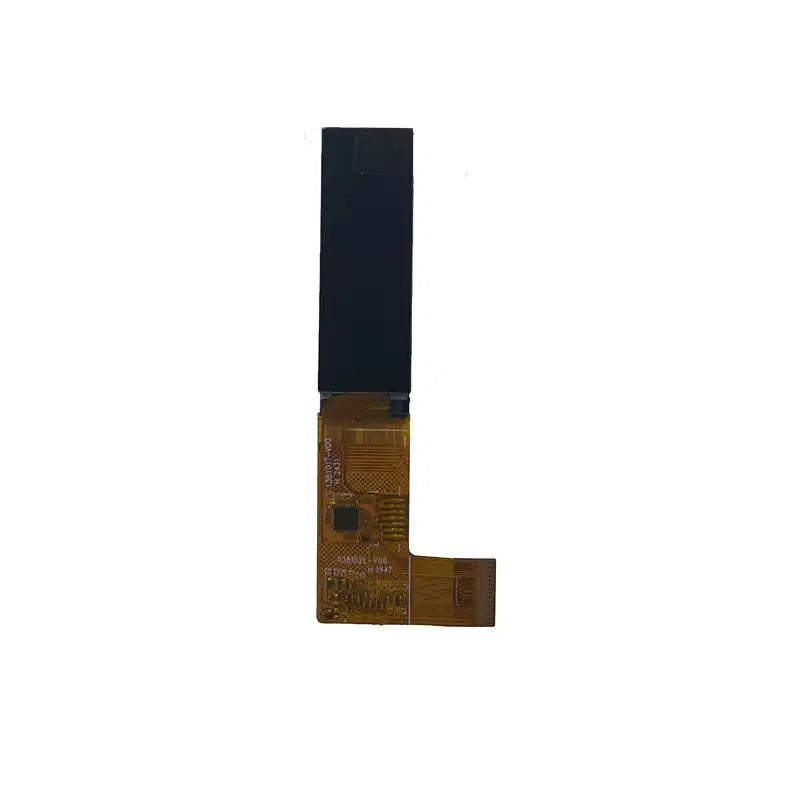

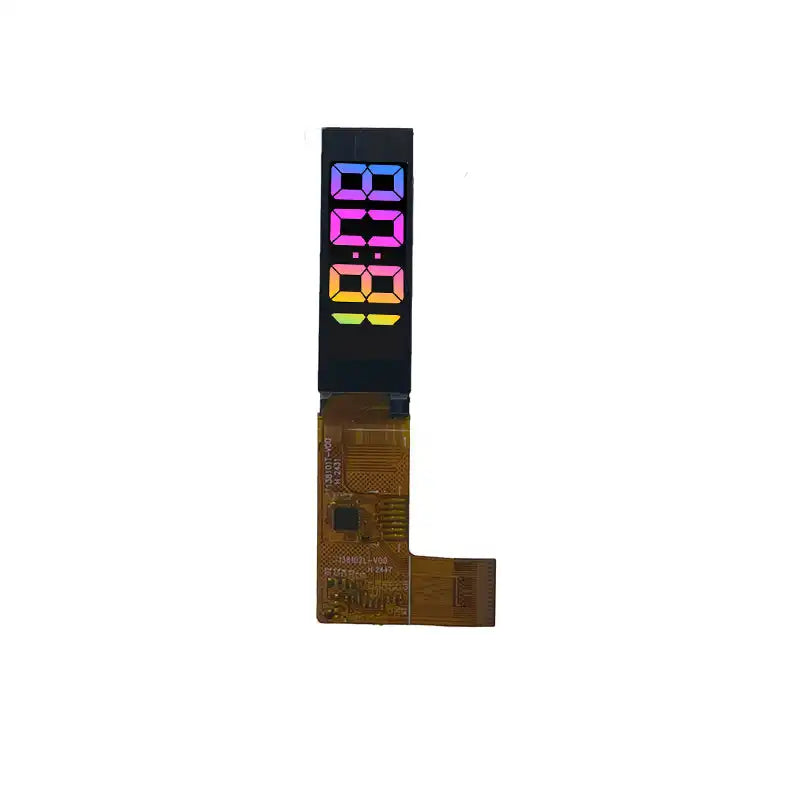

1.38 INCH AMOLED Module 128x400 LTPS, Dual SPI Support
Sale price$30.00 USD
1.43 INCH AMOLED Module 466x466 LTPS, MIPI DSI Interface
Sale price$33.00 USD
1.93 INCH AMOLED Module 368x448 LTPS, MIPI DSI Interface
Sale price$36.00 USD

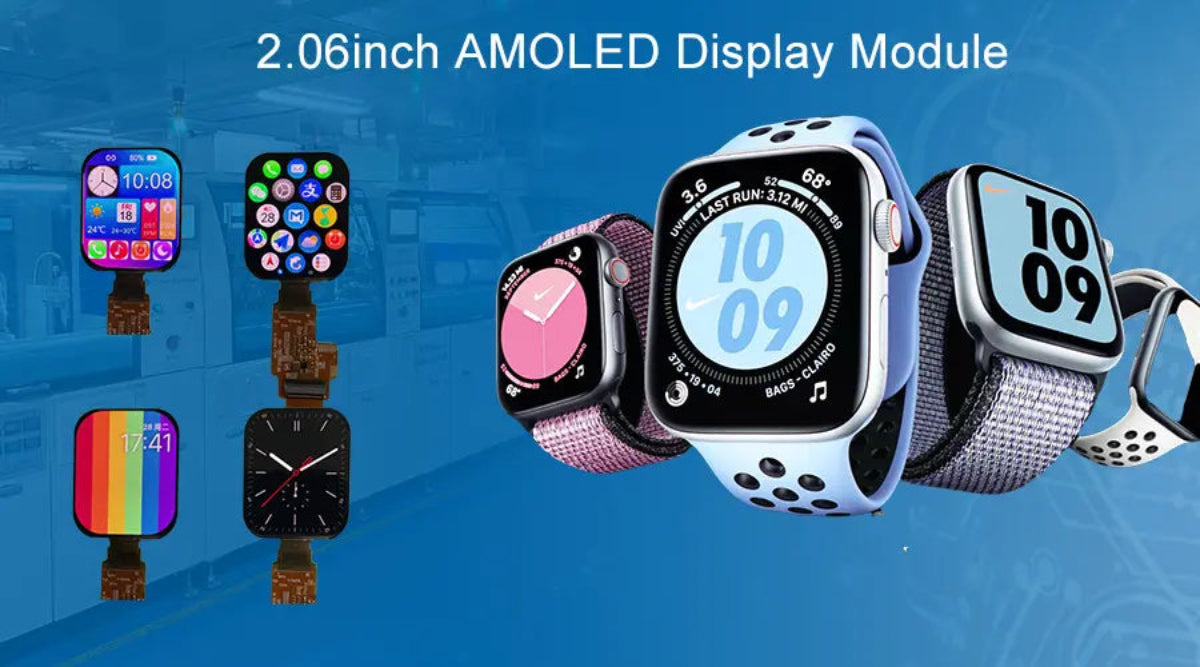

2.06 INCH AMOLED Display 410x500 MIPI 4-Lane – Brown Opto
Sale price$45.00 USD
3.92 INCH High-Brightness AMOLED for Smart Devices & HMI – MIPI
Sale price$50.00 USD
4.39 INCH AMOLED with CST148 Touch, 1080x1920, MIPI DSI
Sale price$53.00 USD
5.48 INCH AMOLED Module 1080x1920 LTPS, MIPI 4-Lane
Sale price$60.00 USD
6.01 INCH AMOLED Display 1080x2160 SPI/MIPI DSI, LTPS TFT – Brown Opto
Sale price$80.00 USD
Contact Us
Do you have any question?
Environmental Responsibility
At Shenzhen Brownopto Technology Co., LTD, we are committed to sustainable practices that minimize environmental impact while delivering cutting-edge display technology.
Eco-Friendly Manufacturing Practices
-
RoHS Compliance: Our OLED displays comply with the Restriction of Hazardous Substances Directive (RoHS), ensuring they are free from harmful substances like lead, mercury, and cadmium.
-
Energy Efficiency: Our OLED panels consume less power when displaying dark content, significantly reducing energy consumption and extending battery life in portable devices.
-
Recycling Programs: We participate in recycling programs to responsibly dispose of and recycle OLED displays, minimizing electronic waste.
Corporate Social Responsibility
-
Community Engagement: We actively engage with local communities through educational initiatives and support for STEM programs, fostering the next generation of innovators.
-
Sustainability Goals: Our long-term sustainability goals include reducing our carbon footprint by optimizing manufacturing processes and promoting green technology adoption across our supply chain.
Future Innovations and Research
We are continuously investing in research and development to push the boundaries of OLED technology and create innovative solutions for tomorrow’s challenges.
Ongoing R&D Efforts
-
Next-Generation OLED Technologies: We are exploring new materials and manufacturing techniques such as QD-OLED (Quantum Dot OLED) and MicroLED to enhance performance and reduce costs.
-
Partnerships and Collaborations: Collaborating with leading universities, research institutions, and industry partners to accelerate innovation and bring groundbreaking technologies to market faster.
-
Emerging Markets: Identifying and entering new markets with cutting-edge products, including AR/VR, foldable displays, and automotive infotainment systems.
Vision for the Future
-
Long-Term Goals: Our vision includes making OLED technology more accessible and affordable, driving widespread adoption across various industries.
-
Potential Breakthroughs: Anticipated innovations such as self-repairing displays and ultra-thin, flexible screens could revolutionize how we interact with digital interfaces.
-
Contributions to the Field: By contributing to academic research and publishing our findings, we aim to advance the field of OLED technology and inspire future innovations.
Ready to Integrate?
Contact us for samples, datasheets, or custom design support.
Request a QuoteOLED DISPLAY
OLED Customization Solutions
Tailor your display to fit your product perfectly. We offer comprehensive customization across size, resolution, interface, and durability.
Size & Shape Customization
We support flexible OLED designs in a wide range of dimensions and form factors to meet your device's unique space and aesthetic requirements.
Size Range: From 1.0" to 8.0", including circular, square, rectangular, and irregular shapes.
Flexible & Curved Designs: Bendable and foldable OLEDs for wearable, automotive, and medical devices.
Custom Cutouts: Integrated cutouts for cameras, sensors, or buttons without compromising display integrity.
Resolution & Pixel Optimization
Optimize visual clarity and power efficiency with resolution and pixel layout tailored to your application’s needs.
Resolution Options: From 96×96 to 1920×1200 (WUXGA), supporting FHD and beyond.
Pixel Layout: Custom RGB or PenTile arrangements for improved brightness and longevity.
Power-Optimized Modes: Lower resolution or grayscale modes for battery-sensitive applications like wearables.
Interface & Driver Integration
Seamlessly integrate our OLED modules with your existing hardware and firmware using flexible interface options.
Supported Interfaces: MIPI DSI, SPI, I²C, LVDS, QSPI, and custom protocols.
Driver IC Customization: Tailored driver ICs for optimized performance, timing, and compatibility.
Firmware Support: SDKs and reference code available for rapid development and debugging.
Optical & Durability Enhancements
Improve readability and reliability in challenging environments with advanced optical and mechanical upgrades.
Anti-Reflective (AR) Coating: Reduces glare and improves visibility in bright sunlight.
Optical Bonding: Laminated glass or film for enhanced touch sensitivity and shock resistance.
Environmental Protection: IP67 sealing, UV-resistant layers, and operating temperature range from -30°C to +85°C.
Need a custom OLED solution? We’re here to help.
Request Custom Design Support
Applications Overview
BROWNOPTO OLED/AMOLED display modules are widely used across wearables, industrial HMI, medical handhelds, automotive interiors, and smart home/instrumentation. Below are common scenarios and how to choose the right module quickly.
Key Application Scenarios
Industrial Control / HMI
Long-life, wide-temperature operation for 24/7 environments. Easy integration with SPI/I2C and robust EMC behavior. Anti-reflection options improve readability in harsh lighting.

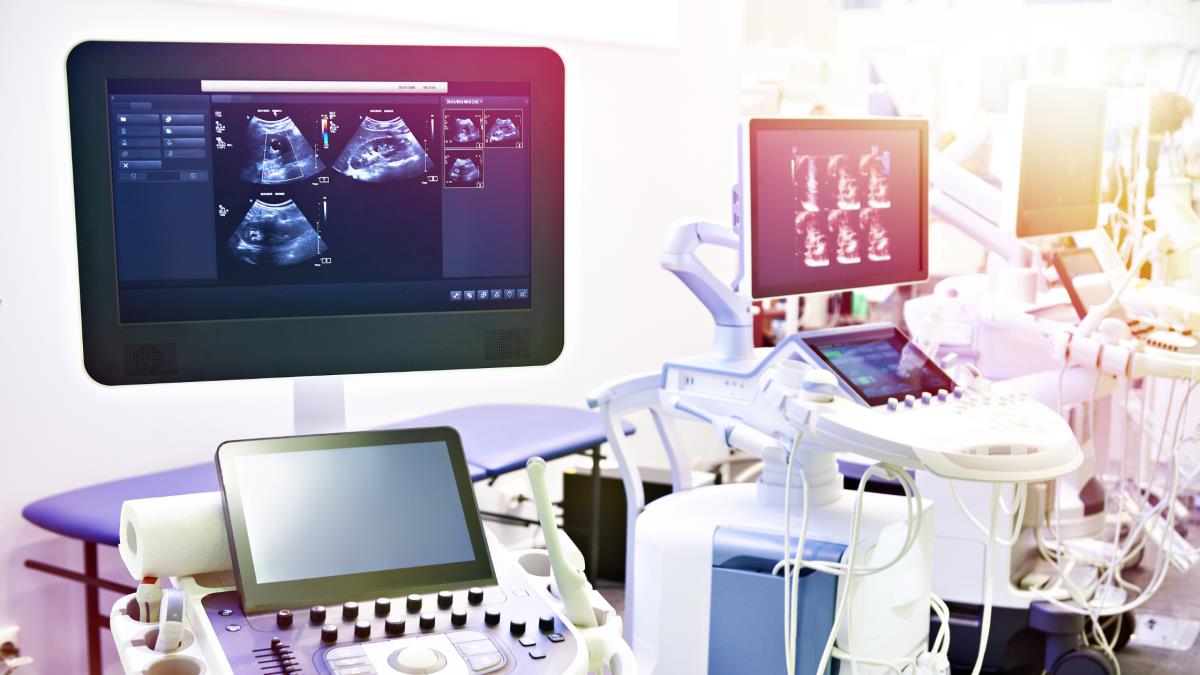

Medical Handheld Devices
High contrast and accurate color for critical readouts. Optional low blue light and bi-directional interfaces. Supports calibration and stable white-point across brightness levels.

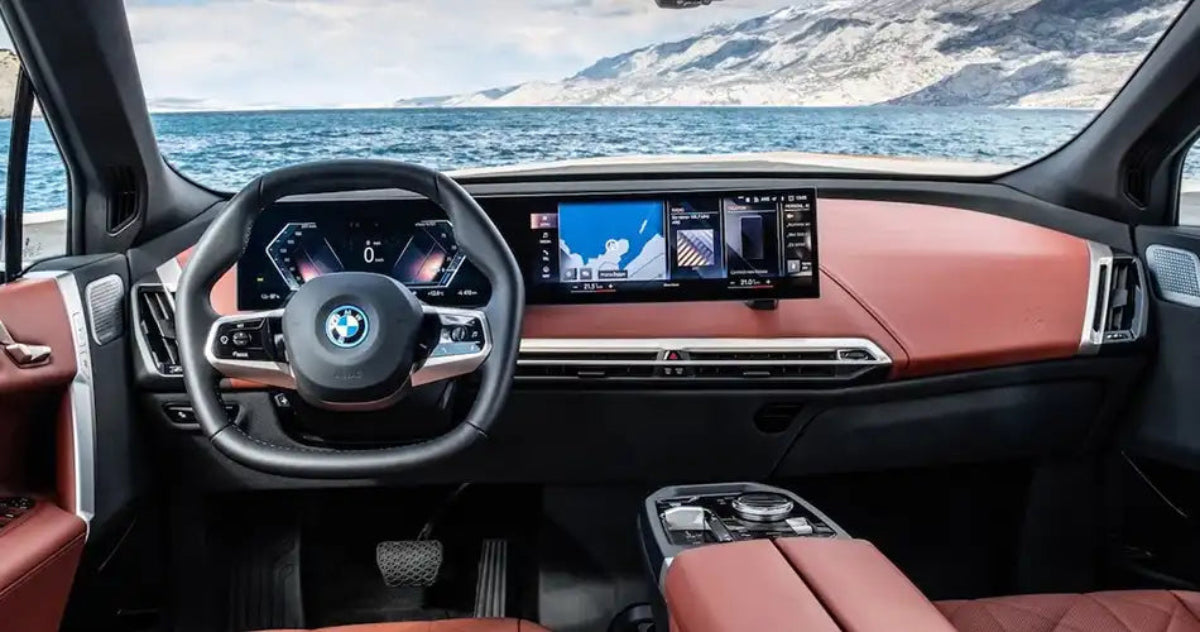

Automotive Cluster & Interior UI
High brightness, wide color gamut, and -30~85°C capability. Suitable for dials, knobs, and auxiliary displays. Supports custom shapes and higher vibration resistance.
Smart Home & Instrumentation
Low-power always-on indicators, wide viewing angles, and fast response. Ideal for thermostats, locks, gateways, and meters. SPI 4/8-wire and I2C options, with easy firmware bring-up.
Portable Consumer Electronics
Compact modules for cameras, audio players, and handheld consoles. Smooth motion and vivid colors with minimal latency. Custom FPC and cover glass with AR/AF coatings are available.
Quick Selection Tips
- Size and resolution: match viewing distance; small wearables 0.49"–1.91", industrial often 1.3"–2.42".
- Interface: SPI/I2C for low-frame-rate UI; MIPI/eDP for higher resolution or richer motion.
- Brightness and optics: consider outdoor readability, AR/AG coatings, and reflectance.
- Power and lifetime: enable AOD wisely, manage APL, and use compensation to mitigate burn-in.
- Customization: touch panel, cover glass, FPC shape, logo printing, and firmware init scripts.
FAQ
OLED Technology FAQs
What is AMOLED and how does it differ from traditional OLED?
AMOLED stands for Active-Matrix Organic Light-Emitting Diode. It uses an active matrix of thin-film transistors (TFTs) to control individual pixels, offering faster response times and better power efficiency compared to passive matrix OLEDs.
What is the role of LTPS technology in OLED displays?
Low-Temperature Polysilicon (LTPS) technology enables higher electron mobility, allowing for smaller, more efficient TFTs. This results in higher resolution and improved image quality.
Why do OLED displays have faster response times than LCDs?
OLED pixels can switch on and off almost instantaneously because they don't rely on backlighting or liquid crystals. Typical response times are less than 1 ms.
Can OLED displays be used outdoors?
Yes, OLED displays can be used outdoors. They offer high brightness levels (up to 1000 cd/m²), making them visible even in direct sunlight.
What is the significance of color gamut in OLED displays?
The wide color gamut of OLED displays allows them to reproduce a broader range of colors, providing more vivid and lifelike images. Many OLED displays support over 100% of the NTSC color space.
How durable are OLED displays?
OLED displays are highly durable and can withstand mechanical shocks and vibrations. They are designed to operate within a wide temperature range (-30°C to +85°C).
What precautions should be taken when handling OLED panels?
Avoid dropping or applying excessive pressure to the screen. Clean the surface gently with a soft, dry cloth and avoid harsh solvents except ethyl alcohol.
What certifications do your OLED displays have?
Our OLED displays comply with international standards such as RoHS 2.0, CE, and FCC, ensuring they meet safety and environmental regulations.
How do you ensure color consistency across multiple OLED displays?
We use advanced calibration techniques during manufacturing to ensure uniform color reproduction. Regular testing and fine-tuning help maintain consistency.
